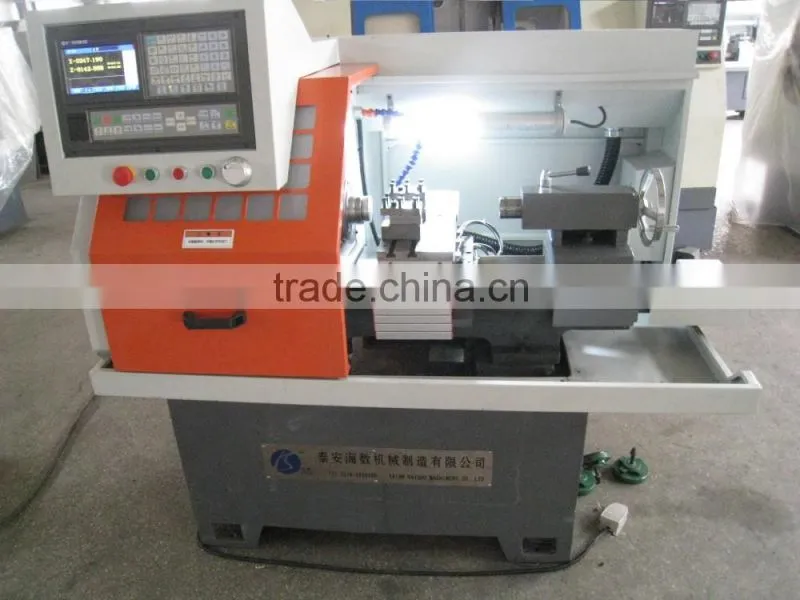

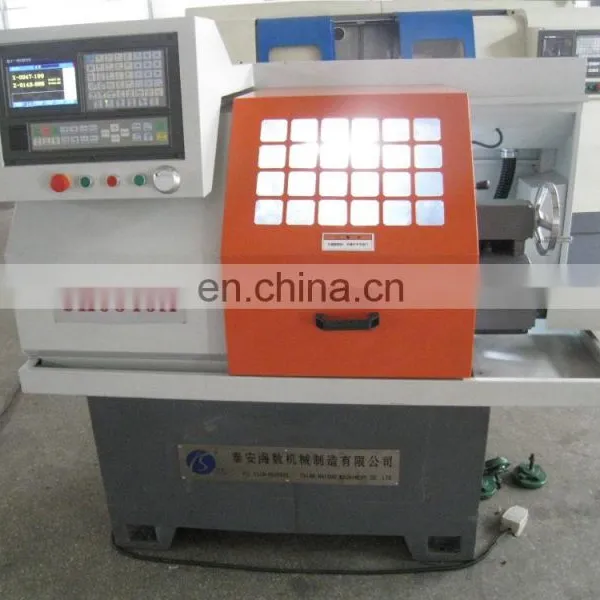

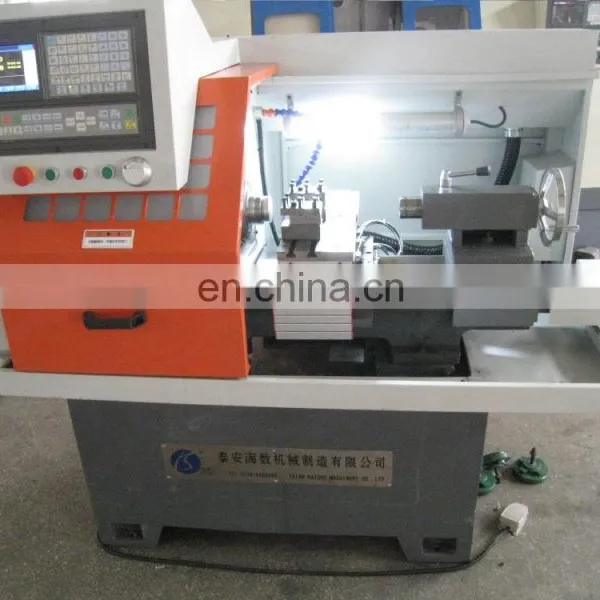

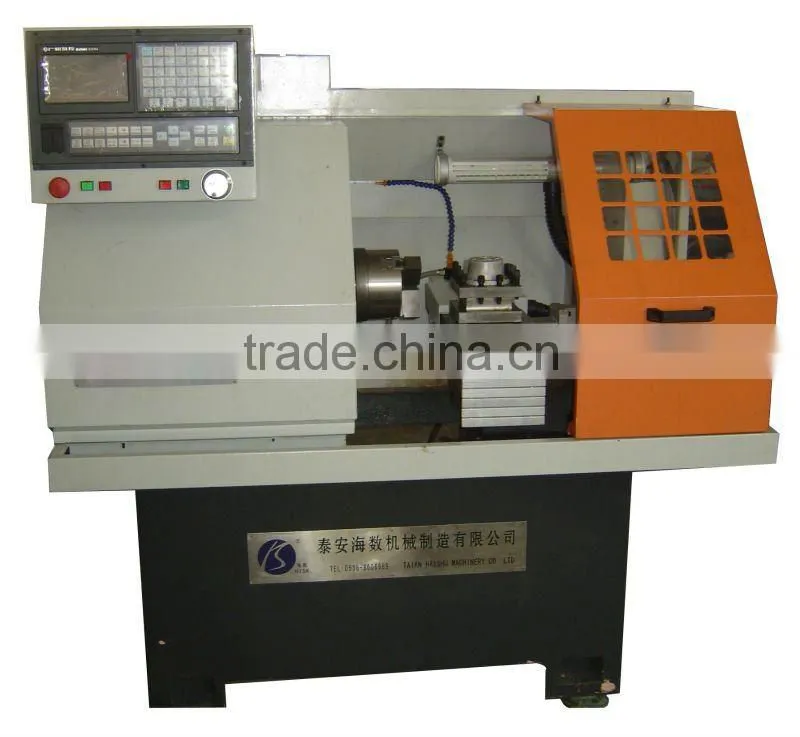

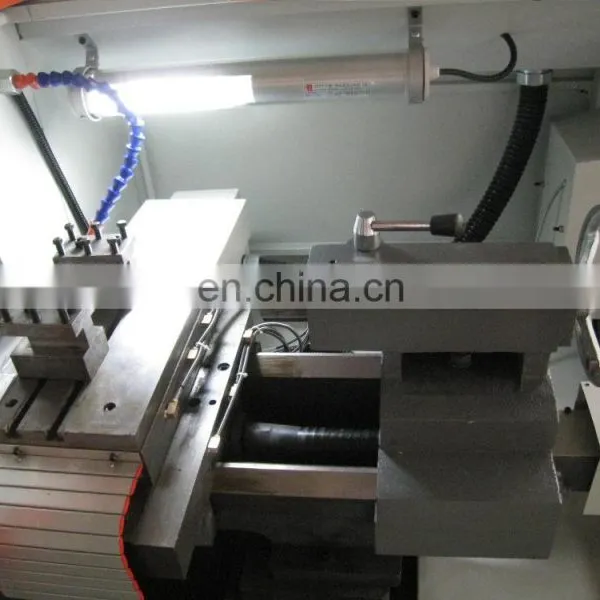

Hot sell!!! Newest Hobby mini CNC lathe ck0640
Items |
Specifications |
Spindle bore |
Φ48mm |
Max.swing over bed |
φ245mm |
Max.swing over carriage |
φ180mm |
Z-axis max length of work piece |
280mm |
X- axis max motion traveling schedule |
650mm |
X-axis fast moving speed |
6000mm/min |
Z- axis fast moving speed |
8000 mm/min |
X-axis feed rates |
1~2000mm/min |
Z- axis feed rates |
1~1800mm/min |
Range of spindle speed |
50~2500/mmmin |
Thread machining scope (metric system) |
0.25~12mm |
Thread machining scope (British system) |
28~3 1/2 |
Stations of tool carrier |
4 or gang-type tool carrier |
Power of the main drive motor |
3KW |
Overall dimensions(L×W×H) |
1520×1000×1420 |
Net weight |
950 kg |
Application Field: Instruments, Electronic Connector, Medical Apparatus etc.
*Machining Range: Short Spindle, Small Disk, High-precision Curve Surface, MF and BSF etc.
*Machining Shape: Cylinder, Cone, Tower-shape, Pear-shape, Pipe &Taper Screw Thread etc.

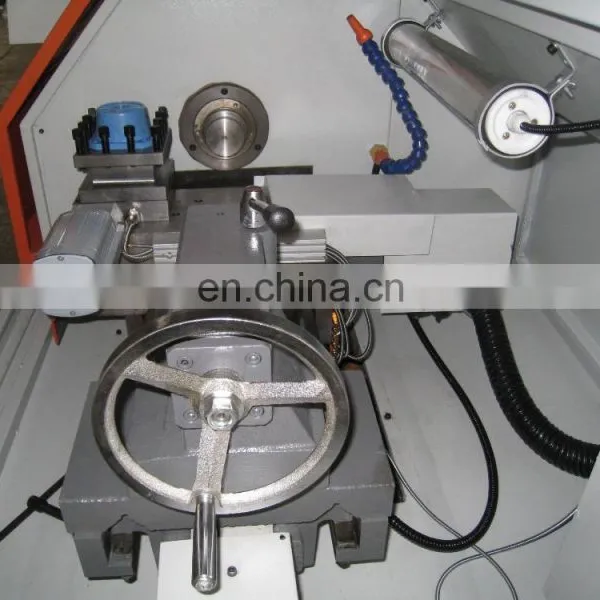

*4 station Electric Tool Post Optional: 6-station Horizontal Electric Tool Turret
*Control system:Made-in-china(Mainland):GSK: GSK928TC/TE, GSK980TB/TD/TDa. Optional:
Made-in-japan: FANUC Made-in-germany: SIEMENS: SIEMENS
Configuration
Standardscheme
Fully enclosed protection
Cooling system
Lighten system
3-jaw chunk
Automatic lubrication system
4-station eletric turret
Optional scheme
Hydraulic chunk

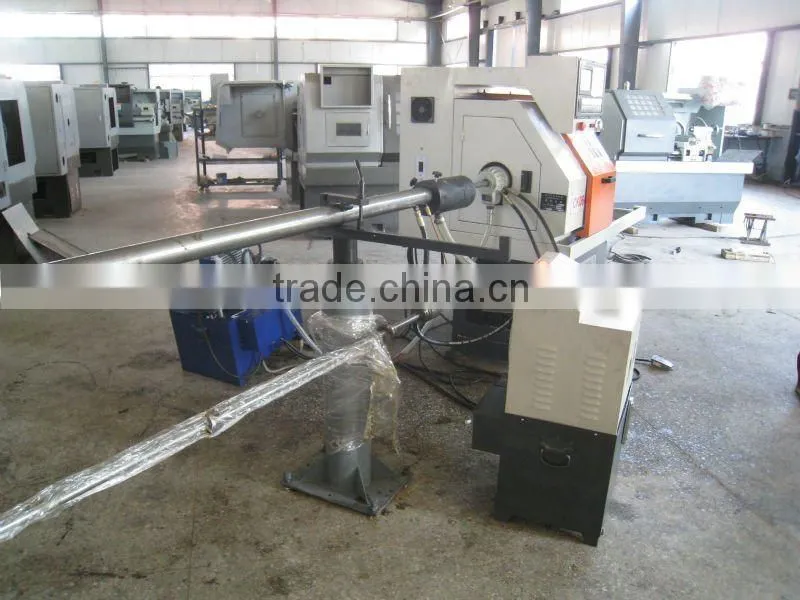

Automatic feeding
6/8-station turret
4-jaw chunk
Automatic chip conveyor
Semi-closed protection
|
|
|
|
Welcome the customer from the world to visit our factory and send the business chance to us, we will show our most heart to services for you.
