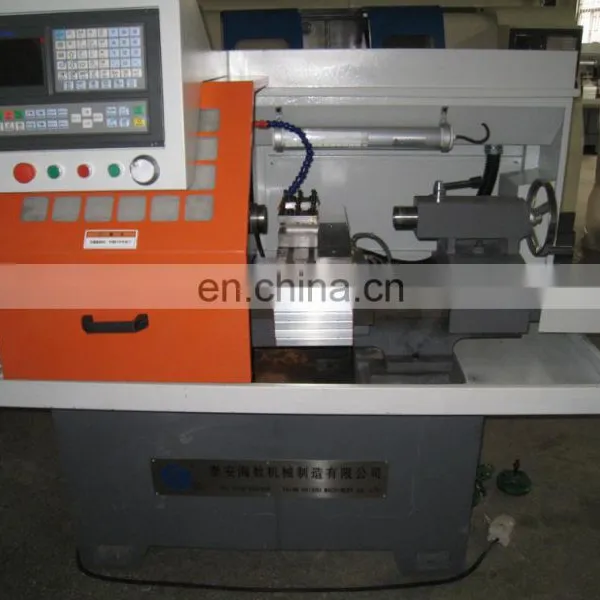

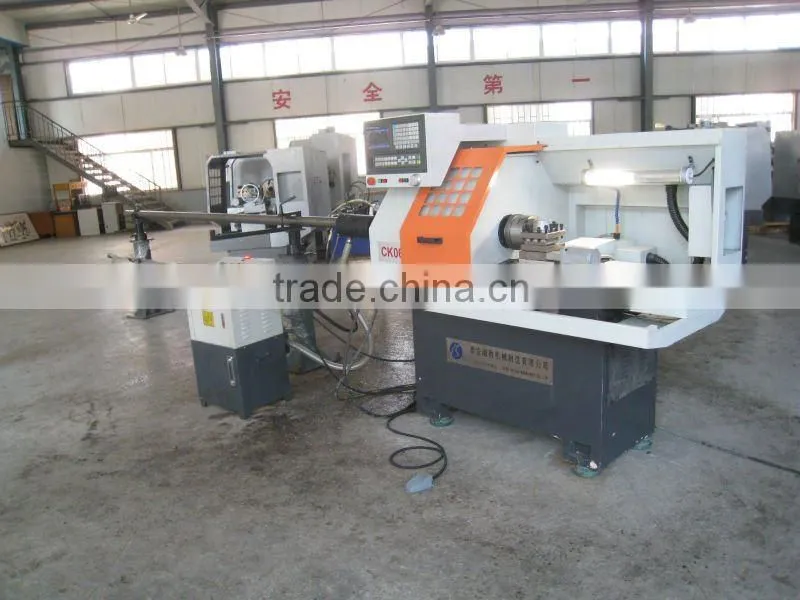

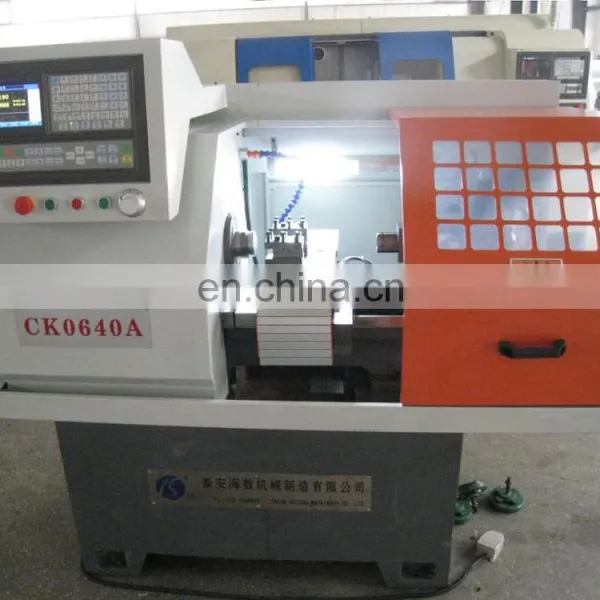

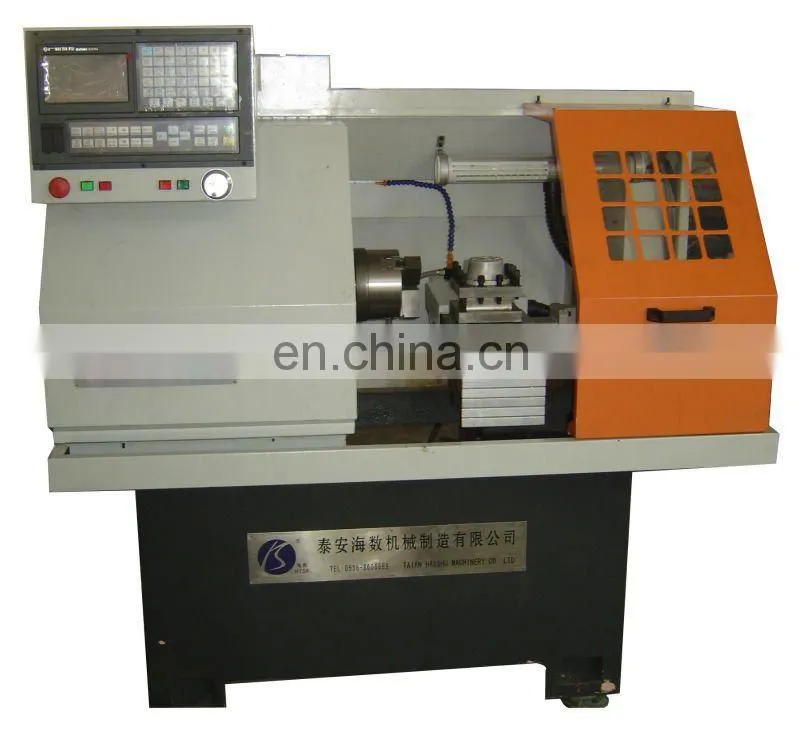

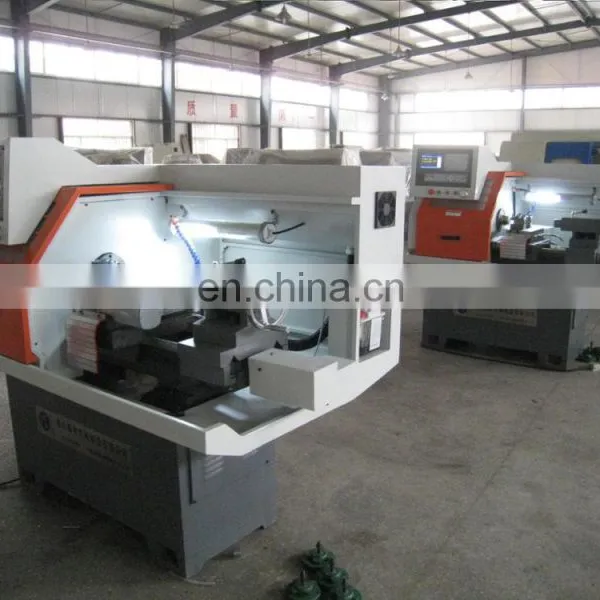

micro lathe CK0640A
Technical parameters
Item |
CK0640A |
Swing over bed(mm) |
Φ280 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect20/Chuck120 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
260 |
Y axis travel(mm) |
240 |
X-axis rapid traverse rate(m/min) |
5M |
Z-axis rapid traverse rate(m/min) |
8M |
Spindle speed range(m/min) |
150-2200 |
Type of tool carrier |
Gang-type tool carrier |
Main motor power(KW) |
3kw |
L*W*H(mm) |
1600×1000×1550 |
weight(Kg) |
1000kg |

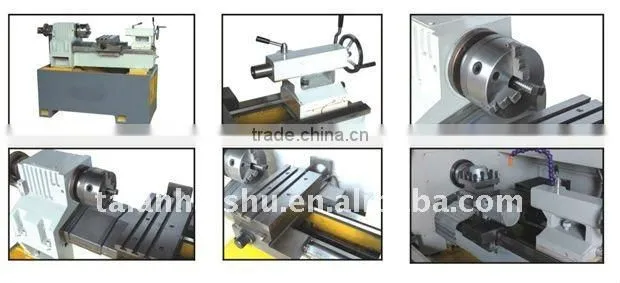

characteristics
***The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
***The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
***X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.

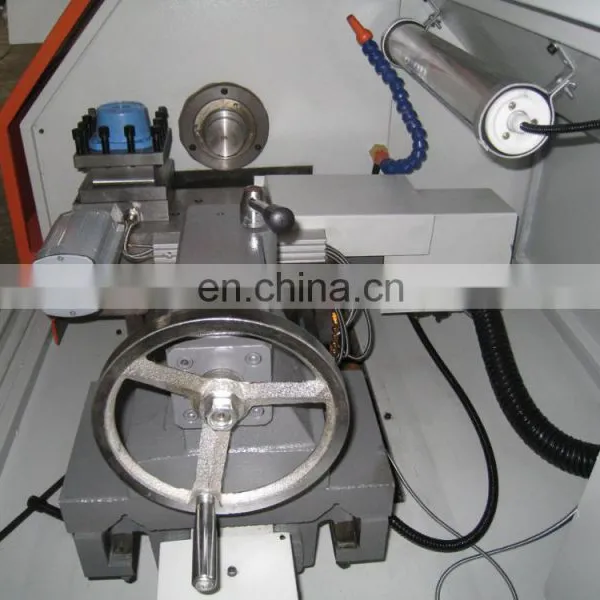

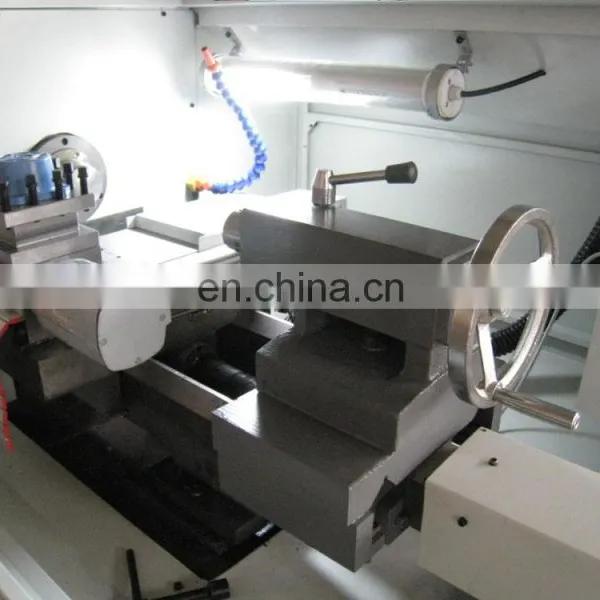

***Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
***Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
Welcome to our company!!!!!
