Engine Lathe CK6150A GSK/SIEMENS/FANUC CNC Control

FOB Price

US$ 10,000 - 88,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu	Place of Origin	Shandong, China
Model Number	CK6150A	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Packaging Details

STANDARD EXPORTED WOODEN CASE

Product Description

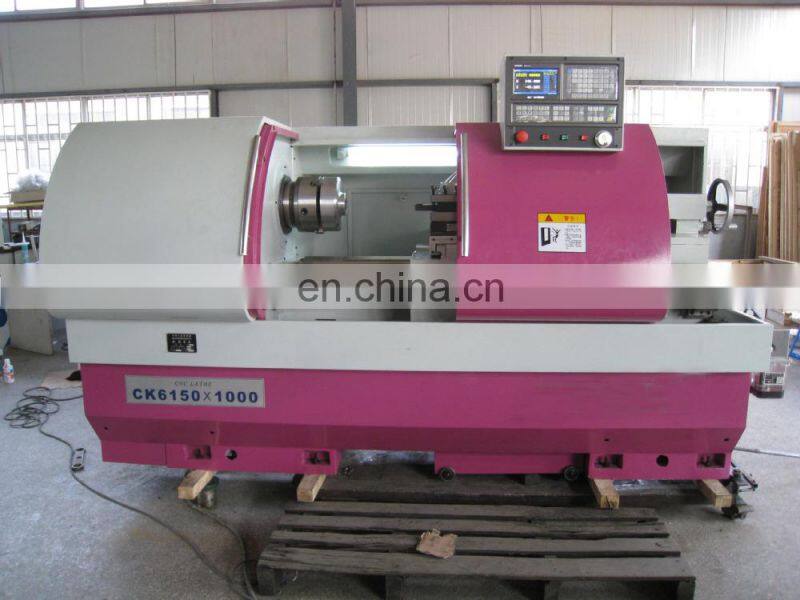

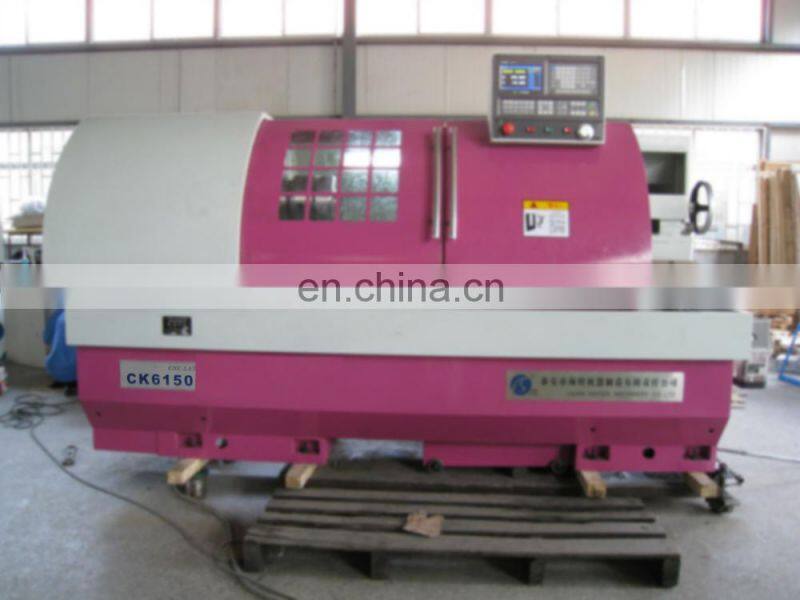

Engine Lathe CK6150A GSK/SIEMENS/FANUC CNC Control

SPECIFICATIONS

ITEMS	Specifications
Max.swim over bed	Φ500mm
Max.swim over carriage	Φ300mm
Max.length of work piece	750/1000mm
Range of spindle speed	150-2000rpm
Spindle bore	Φ82mm
Taper of spindle bore	1:4
Stations of tool carrier	4/6/8/or gang-type tool carrier
Min.setting unit of motor	(Z) long 0.001mm,(X) cross0.001mm
Moving speed of post	(Z) long 10 m/min,(X) cross 8m/min
Taper of taikstock quill	MT5
Max.range of tailstock quill	150mm
Motor power	7.5KW
Packing size(lenght×width×height)	2570/2970 mm×1560 mm×2110mm
Net weight	3200/3500kg

Company Profile

Horizontal Lathe Co., Ltd.

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
