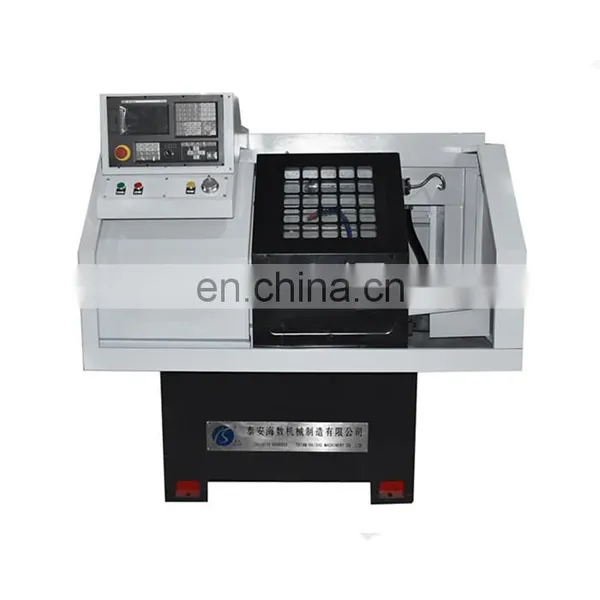

CK0640A new center lathe /mini CNC Machine
(!)Famous brand components
(!) CNC Lathe enlarged bore
(!) High quality casting body
(!) Single spindle ,long life,low wear
(!) FANUC SIMENS GSK system
(!) Three gears varsable frequency speed regulation.
(!) Save 1.5 times of artifical, one person can operate 5-8 sets.
(!) Can be processed to iron , stainless steal , copper, aluminum..ect.
Technical parameters
Item |
CK0640A |
Swing over bed(mm) |
Φ280 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect200/Chuck120 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
260 |
Y axis travel(mm) |
240 |
X-axis rapid traverse rate(m/min) |
5M |
Z-axis rapid traverse rate(m/min) |
8M |
Spindle speed range(m/min) |
150-2200 |
Type of tool carrier |
Gang-type tool carrier |
Main motor power(KW) |
3kw |
L*W*H(mm) |
1600×1000×1550 |
weight(Kg) |
1000kg |
Standard scheme
Fully enclosed protection
Cooling system
Lighten system
3-jaw chunk
Automatic lubrication system
4-station eletric turret
Optional scheme
Hydraulic chunk
Automatic feeding
6/8-station turret
4-jaw chunk
Automatic chip conveyor
Semi-closed protection

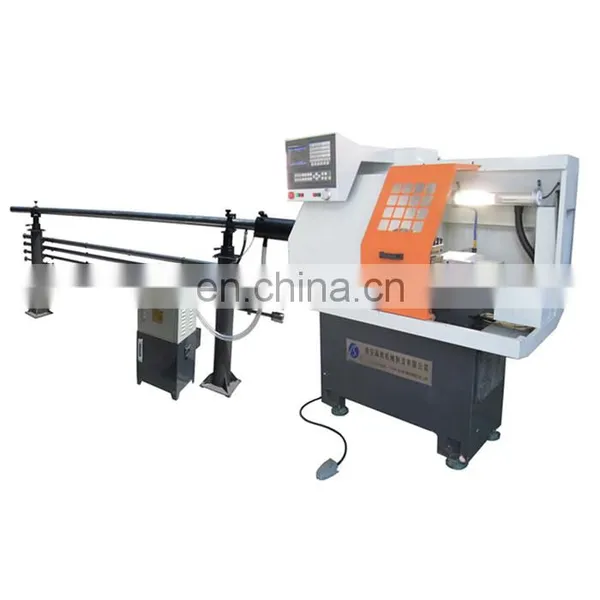

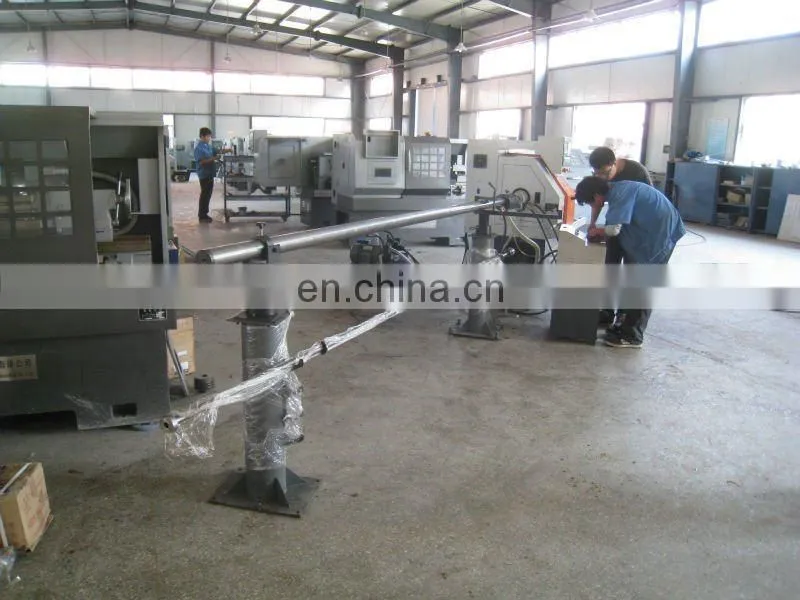

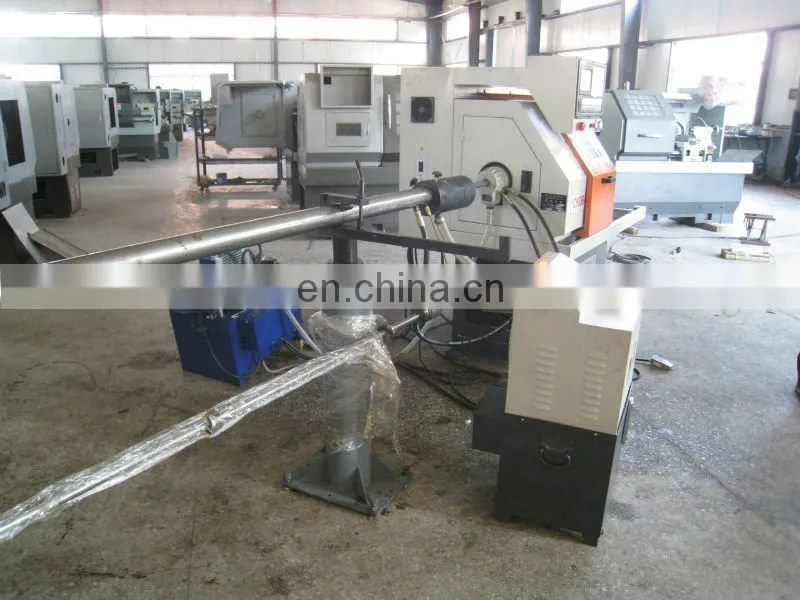

finished machine ck0640 with auto feeder

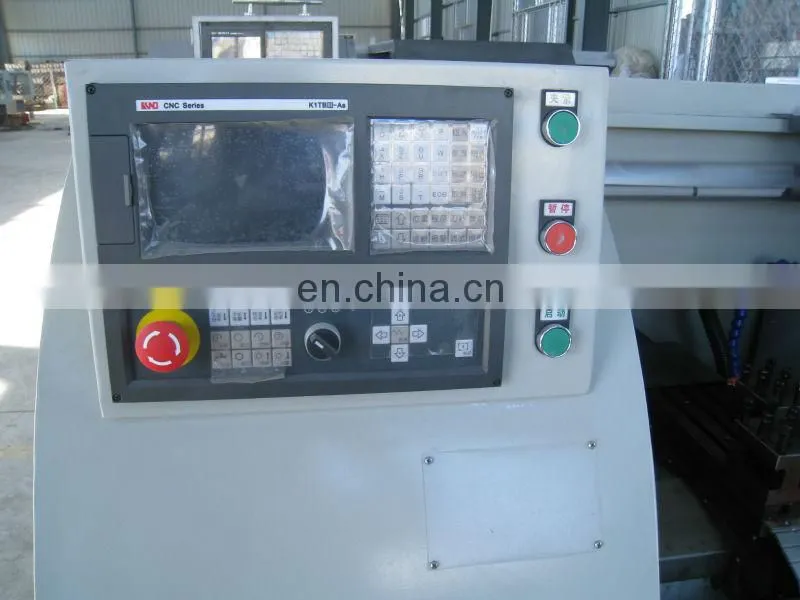

KND System
CE certificate
