CK6132A lathe machine digital display

FOB Price

USD $7,500 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	haishu		Place of Origin	Shandong, China
After-sales Service Provided	Overseas service center available		Condition	New

Packaging Details

it will be packed in one wooden case ,with packed size of 2050*1250*1600mm,packed weight according to your machine.

Product Description

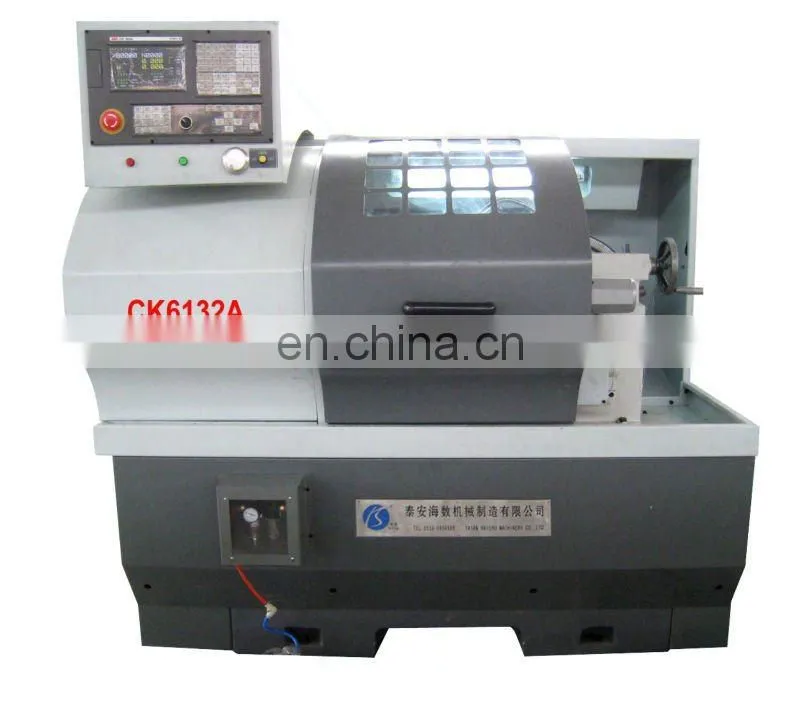

CK6132A cnc wheel lathe

1,Main features

1 Spindle brake way by electric brake

2Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor

3Imported or homemade CNC system

4Rotary various workpiece surface automatically turning,precision maching

5The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.

6The carriage adopts plastic paste processing.wear small,high precision,long life.

7Electronic hand wheel equipped,easy operation.

2.specification

ITEMS	Specifications
Max.swim over bed	Φ320mm
Max.swim over carriage	Φ160mm
Max.length of work piece	450mm
Range of spindle speed	100-2500rpm
Spindle bore	Φ42mm
Taper of spindle bore	MT5
Stations of tool carrier	4/6/or gang-type tool carrier
Min.setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min,(X) cross 6 m/min
Taper of taikstock quill	MT3
Max.range of tailstock quill	100mm
Motor power	4KW
Packing size(lenght×width×height)	1770 mm×1250 mm×1650mm
Net weight	1300kg

3,Optional accessories

Siemens 802DS

Fanuc oi-mate TD

NSK spindle bearing

6 or 8 position turret

Hydraulic chuck

Penumatic chuck

Pneumatic tailstock

Hydraulic tailstock

4,Payment Terms: 30% down payment in advance, the balance should be paid by T/T before the seller ship the machine!

5,Delivery Time: In 20days after the seller receives the down payment

Company Profile

Horizontal Lathe Co., Ltd.

All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
