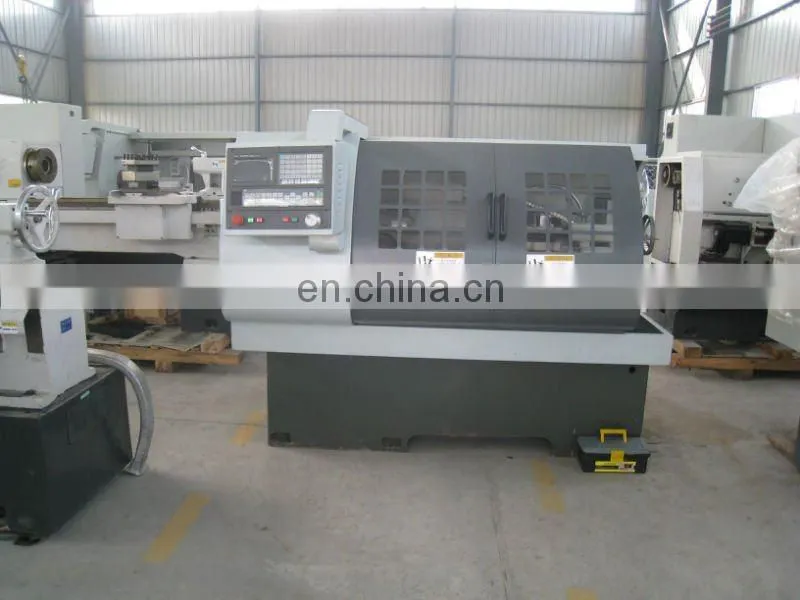

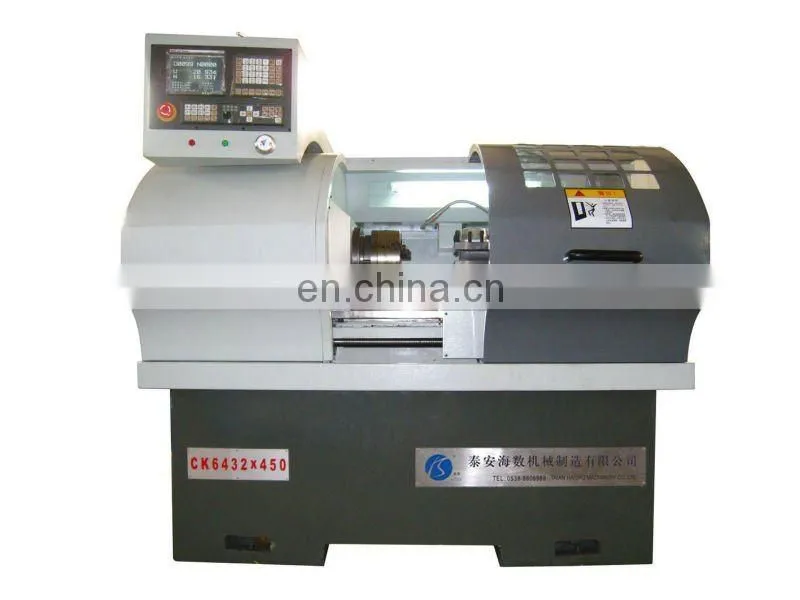

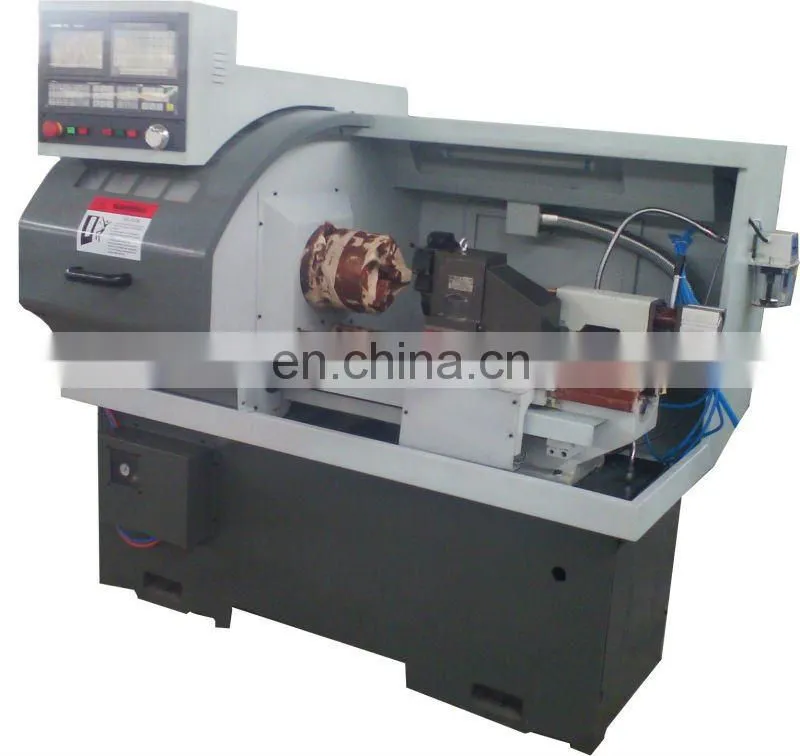

CK6432 economic mini cnc lathe
2. Features
1. steady structure
The foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. The inner metallographical structure is very steady.
2. high steel nature
The basic parts have high steel nature by collocating with the reinforcing rib. With the wide foundation, box-shaped cavity column, broaden & lengthening sliding base.
3. High speed and high precision spindle
With transmission of the high torsion tooth form leather belt, the electric machine works no slipping and escapes the emergence of noise and heat.
4. CE safety specification
According with the CE safety specification, the wirings in the electrical box can control the system without external disturbance.
5. high precision thread pitch
Designed with compensation, the location of the spindles can be made more accurate and the machine can work out high precision parts by high precision laser admeasuring apparatus.
3.
“TAIAN HAISHU” light-duty CNC Lathe Catalogue | ||||||||||
|
.CK(A),CK(H),CK(T),CK(L)Series:1.Main Single spindle 2.Variable frequency speed regulation
| ||||||||||
Model |
Max.swim over bed |
Max.swim over carriage |
Spindle bore |
Max.length of work piece |
Range of spindle speed |
Motor power |
Chuck Size |
Max.range of tailstock quill |
Taper of Taikstock quill |
|
CK6132A×450mm |
Φ360mm |
Φ160mm |
Φ60mm |
450mm |
150-2500 rpm |
4kw |
160mm |
100mm |
MT4 |
|
CK6432A×450 |
Φ360mm |
Φ160mm |
Φ60mm |
450mm |
150-2500 rpm |
4kw |
200mm |
100mm |
MT4 |
|
CK6136A×750 |
Φ360mm |
Φ200mm |
Φ46mm |
750mm |
150-2000 rpm |
5.5 kw |
250mm |
100mm |
MT4 |
|
|
CK6140A×750/1000
|
Φ400mm |
Φ245mm |
Φ60mm |
750mm 1000mm |
150-2000 rpm |
5.5kw |
250mm |
120mm |
MT4 |
|
|
CK6150A×750/1250
|
Φ500mm |
Φ300mm |
Φ82mm |
750mm 1000mm |
150-2000 rpm |
7.5kw |
250mm |
150mm |
MT5 |
|
CK6136A-1×650 |
Φ360mm |
Φ210mm |
Φ60mm |
650mm |
150-2000 rpm |
4kw |
200mm |
120mm |
MT4 |
|
CK6136A-2×750 |
Φ360mm |
Φ210mm |
Φ60mm |
750mm |
|
4kw |
|
|
MT4 |
|
CK6140A-1×750 |
Φ400mm |
Φ |
Φ60mm |
750mm |
|
5.5kw |
|
|
MT4 |
|
