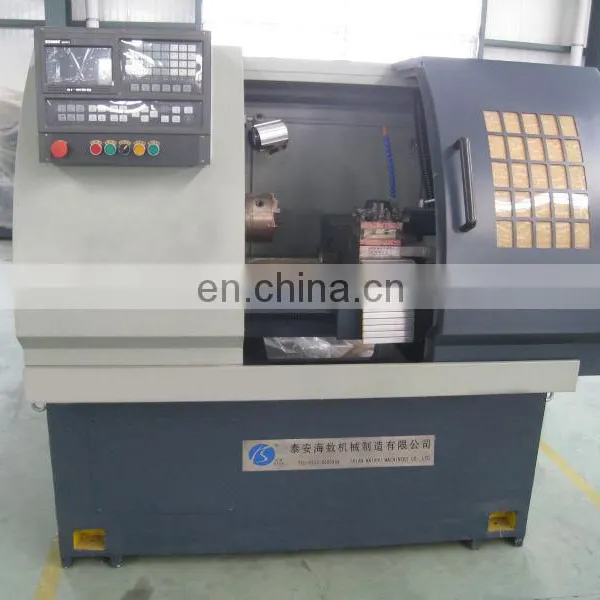

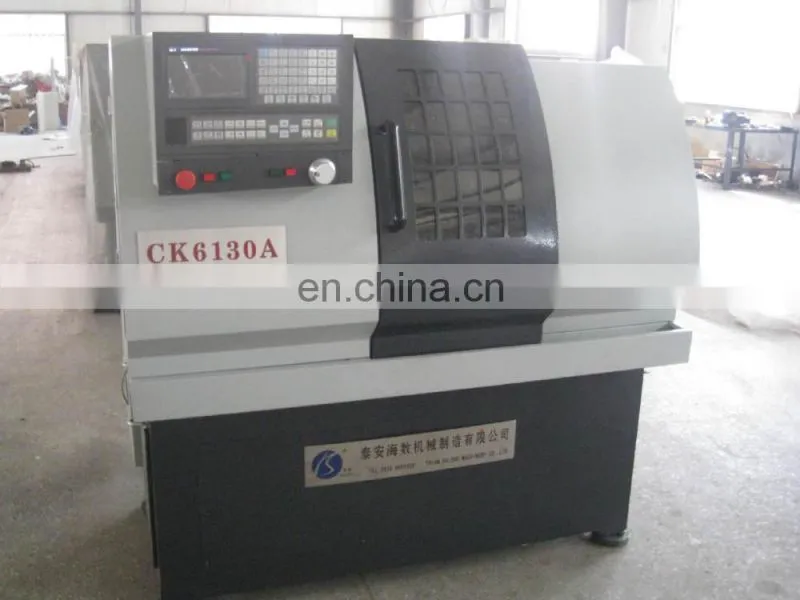

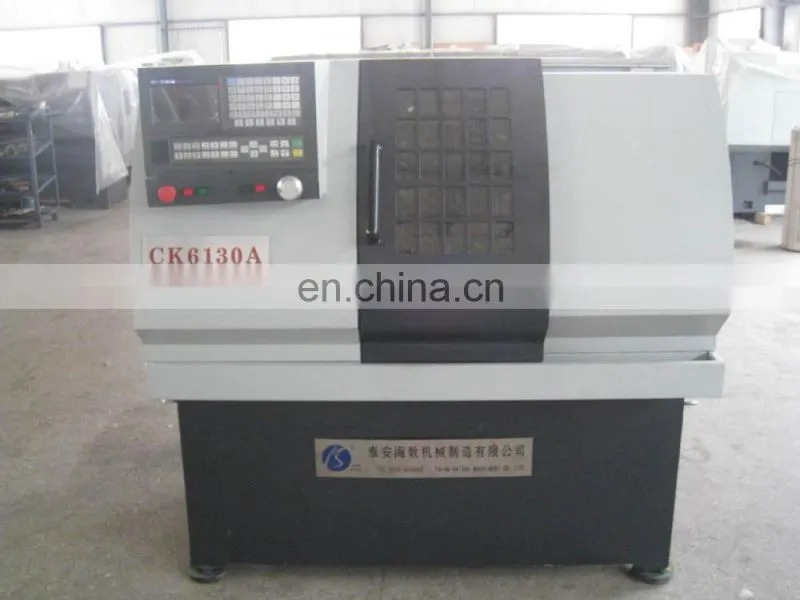

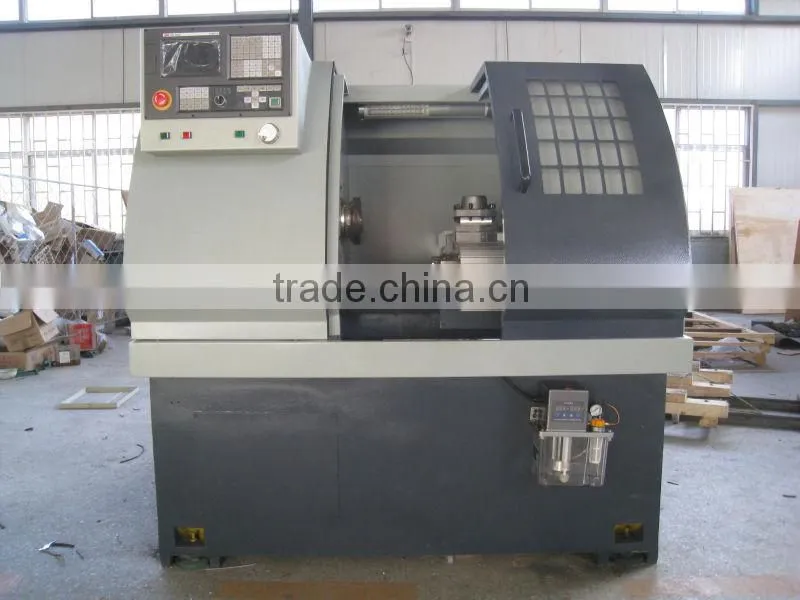

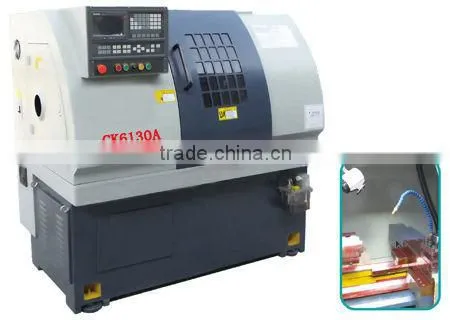

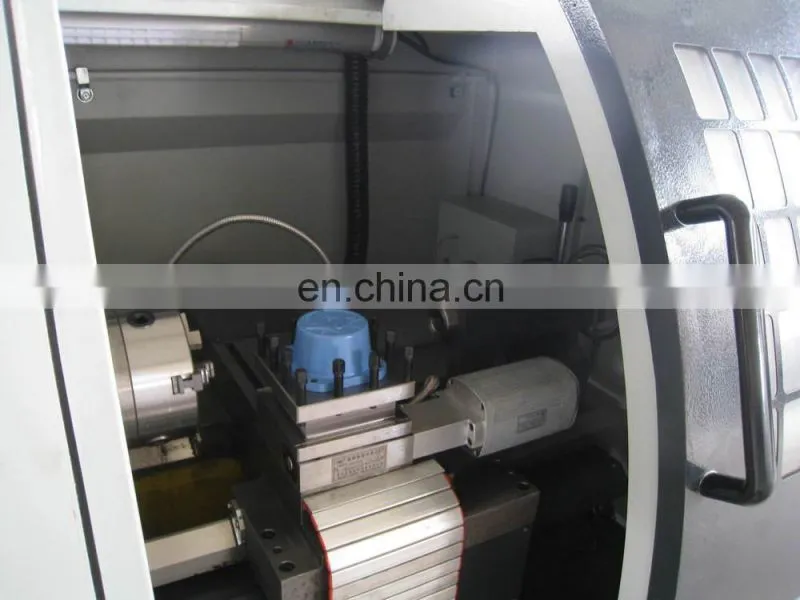

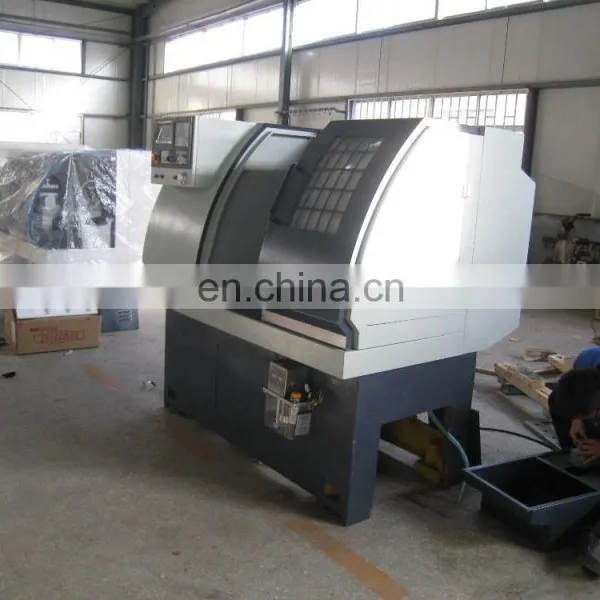

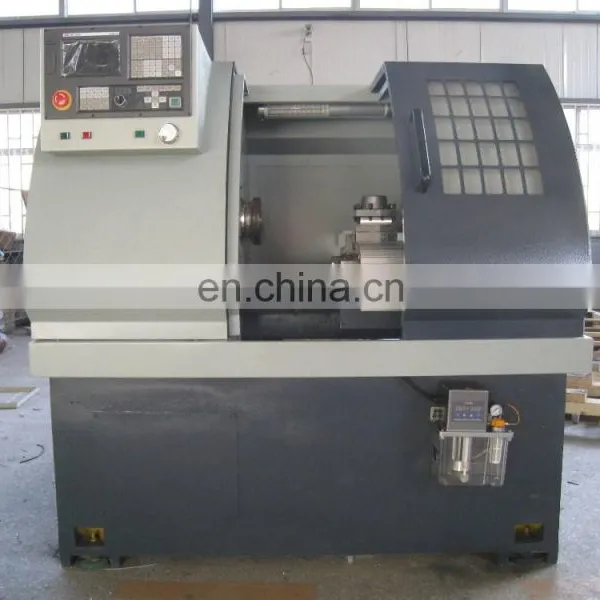

CK6130 automatic auto turning polygon cnc lathe
1. Technical parameters
Item |
CK6130 |
Swing over bed(mm) |
Φ300 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect400/Chuck320 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
300 |
Y axis travel(mm) |
380 |
X-axis rapid traverse rate(m/min) |
5 |
Z-axis rapid traverse rate(m/min) |
8 |
Spindle speed range(m/min) |
150-2200 |
Taper of tailstock sleve |
MT4 |
Tailstock sleeve stroke(mm) |
100 |
Type of tool carrier |
4 Position electric tool post |
Main motor power(KW) |
4 |
L*W*H(mm) |
1620×1060×1600 |
weight(Kg) |
1220 |
2.main feature
1) machine foundation,the guide rail is comfortable, the head stock use cooling property structure, To improve the stability of the machine and the spindle.
2) The Before and after the spindle bearing use high precision ball with diagonal contact bearing. The stability is best, and bearing load is bigger.
3) Guide use cast iron casting, use hyperacoustic quenching. To Ensure long-term stable machining precision and service life
4) X axis use Four point one line type,Y axis screw rod three point one line structure, to Ensure that guide work more smoothly and Not influence by lateral force.
5) Z axis guide use enclosed design, to protect the guide when the machine are working.
6) Spindle flange connection plate adopt international standards and design. The hydraulic chuck was made conveniently and efficiently.
3. Configuration
(1) the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany), Fanuc (Japan)
(2) Spring chuck: manual, pneumatic
(3) Chuck optional: manual, pneumatic or hydraulic chuck.
(4) Tailstock optional: manual, pneumatic, hydraulic.

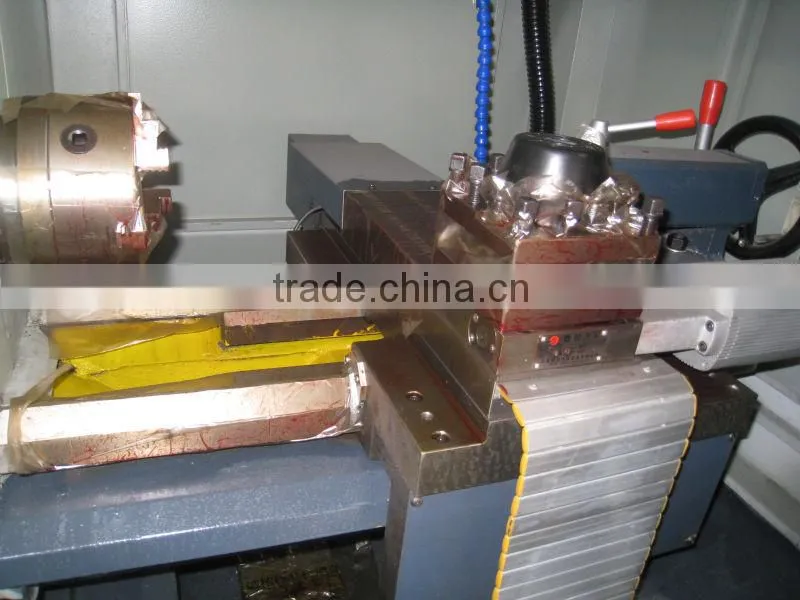

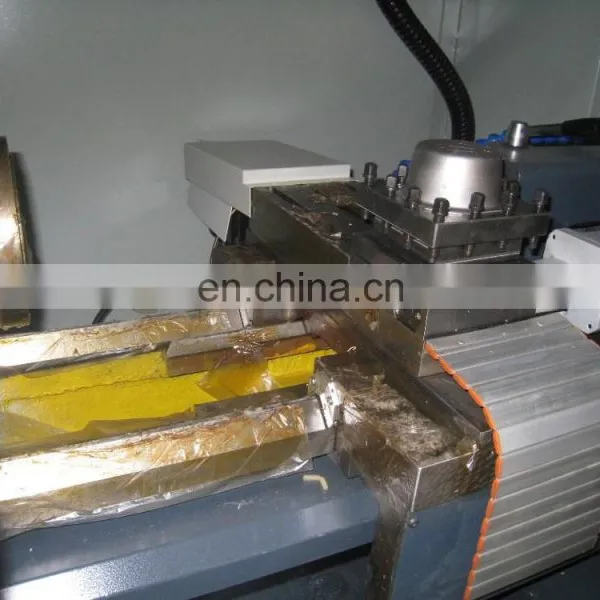

(5) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(6) Lubrication configuration: automatic oil lubrication system.
4.uses
Widely used to valve, water Heating system, Automobile Parts and other part with precision work.
Can be realized to cut the workpiece excircle, inside hole, grooving, Arbitrary cone, sphere and any kinds of screw-thread.
