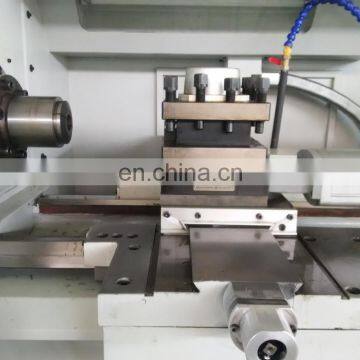

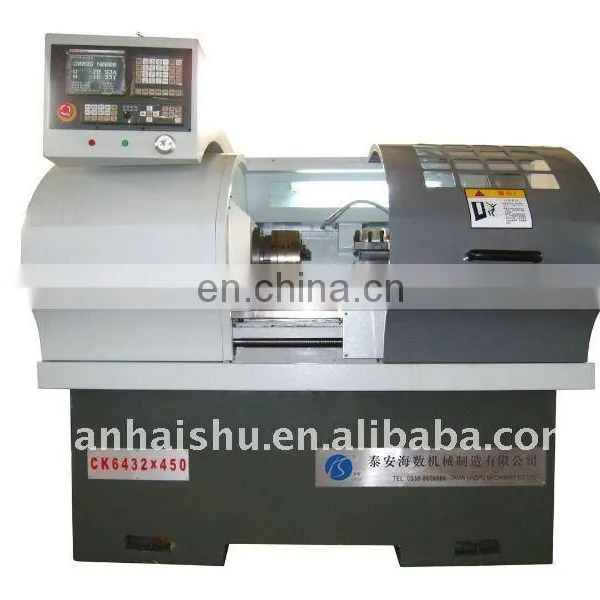

CK6132 lathe machine price cnc turning lathe for metal processing
1,SPECIFICATIONS
ITEMS |
Specifications |
Max.swim over bed |
Φ320mm |
Max.swim over carriage |
Φ160mm |
Max.length of work piece |
450mm |
Range of spindle speed |
100-2500rpm |
Spindle bore |
Φ42mm |
Taper of spindle bore |
MT5 |
Stations of tool carrier |
4/6/8/or gang-type tool carrier |
Min.setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8 m/min,(X) cross 6 m/min |
Taper of taikstock quill |
MT3 |
Max.range of tailstock quill |
100mm |
Motor power |
4KW |
Packing size(lenght×width×height) |
1770 mm×1250 mm×1650mm |
Net weight |
1300kg |
2,Main features
2.1 Spindle brake way by electric brake
2.2Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
2.3Imported or homemade CNC system
2.4Rotary various workpiece surface automatically turning,precision maching
2.5The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.
2.6The carriage adopts plastic paste processing.wear small,high precision,long life.
2.7Electronic hand wheel equipped,easy operation.
