1. product category: rotary table automatic sandblasting machine
2. product model KT1415-12A
3. equipment size: 1400mm long 1500mm width 3000mm high (with separator height)
4. Installation room size: 1395 mm long * 1495 mm wide * 800 mm high, the entire work bin lined with 5 cm rubber board, not easy to wear, easy to replace.
5. dust box connection type: 1100 mm*1300 mm*2600 mm (including dust removal fan height)
Filter core can be used for dust removal, and filter cloth bag can be used for dust removal (two election 1).
Dust removal fan: 5.5KW 380V 50HZ
6. The machine is equipped with 12 sand blasting launchers (fixed frame can be installed at any angle). There are 6 sand blasting launchers at the upper and rear of the machine, and 6 sand blasting launchers at the middle and side of the machine. A large turntable is equipped with 30 stations (continuously driven by motor driven stations).
7. fixed rack rocking assembly: 2 connecting rods, 12 sand blasting launchers;
8. Fixer rear upper components: 1 group of 6 blasting emitters, the upper part of the blasting products; Fixer rear middle components: 1 group of 6 blasting emitters, the side of the blasting products.
9. main turntable components: gear motor.

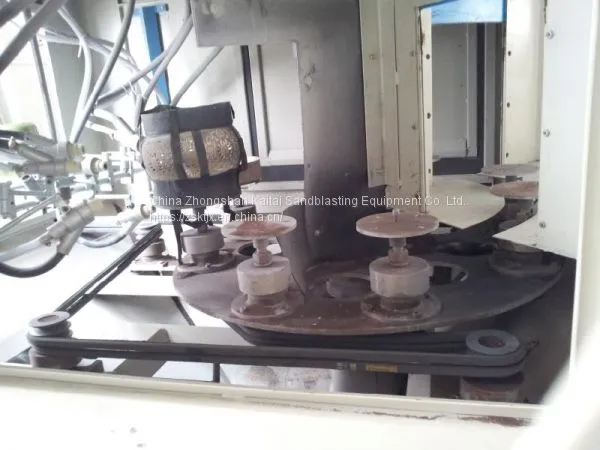

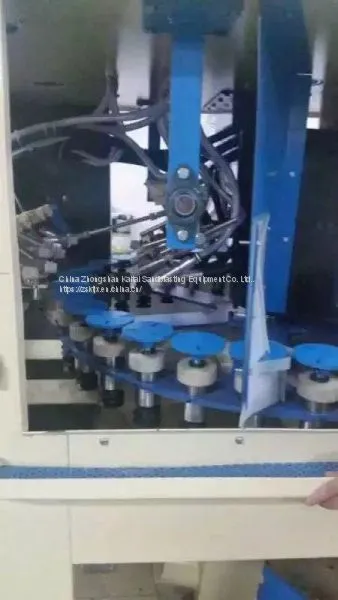

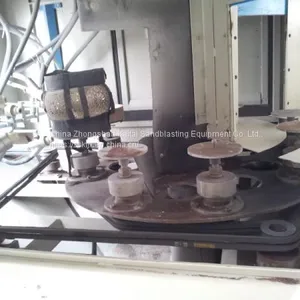

10. Small turntable assembly: gear motor + synchronous gear rubber belt drive; small turntable with 30 small discs, motor drive variable frequency speed regulation;
11. fixed rack rocking assembly: variable frequency motor drives fixed frame swing.
12. total power of equipment: 9KW; 380V; 50Hz
14. sand blasting area: diameter less than 300mm, height less than 500mm;
15. sandblasting efficiency: intermittent action sandblasting.
16. Sandblasting machine surface painting, sandblasting chamber and dust-proof area and other key parts paste (hang) rubber skin, sandblasting emitter for the rubber skin of the spraying place is very easy to wear area, need to regularly check the use of rubber skin, found wearing should be replaced immediately, in order to avoid breaking through the baffle caused by dust leakage.
Application scope of sandblasting machine:
Plating: pretreatment before sandblasting to improve surface adhesion
Cleaning: casting parts, stamping parts, heat treatment parts to remove oxide scales, remove rust, and refurbish old materials.
Finishing and matting: surface treatment of all metal products, molds, glass, plastics, handicrafts, jewelry, glasses, clocks and watches
