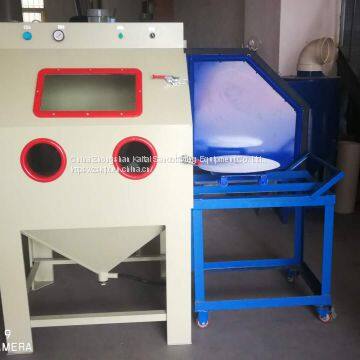

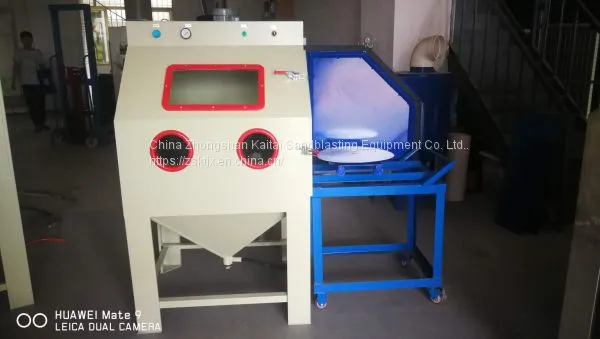

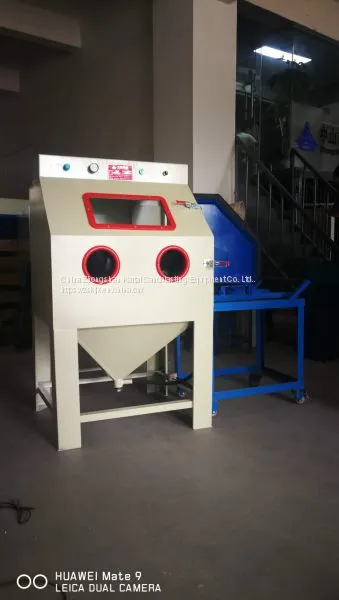

Help CenterBox Type Manual Sandblasting Machine，The Oxide Layer Can be Removed
Related Products
-
Wet Sandblasting Machine, Environmental Protection Without DustCNY 15000 - 18000MOQ: 1 Barrel -
High Pressure Manual Sand Blasting Machine，Suitable for Hard Die Casting and Metal Surface Treatment.CNY 8800 - 12000MOQ: 1 Set
-
Double Station Manual Sandblasting Machine，Surface Treatment EquipmentCNY 15000 - 22000MOQ: 1 Set
-
Dry Mobile Sand Blaster，Can Spray Stone and Large Pipe Inner WallCNY 5800 - 6800MOQ: 1 Set
-
Travelling Sandblasting Machine，Dry Spray and Wet Spray ConversionCNY 8000 - 20000MOQ: 1 Set
Machine dimension: 1100X1500X1700MM
Working chamber size: 1000X1000X630
Separator motor: 220V/50HZ/550W
Machine lighting: 220V 13W energy saving lamp
Separator air volume: 8.5m3/min
Working pressure: 2-7bar (kg/cm2)
Dedusting way: bag type dedusting box, using pneumatic automatic / manual dedusting.
Air source requirements: pressure 7BAR (kg/ square meters) flow 0.8-1.2 cubic meter /min
Characteristic:
1. This machine is a special machine for mold blasting.

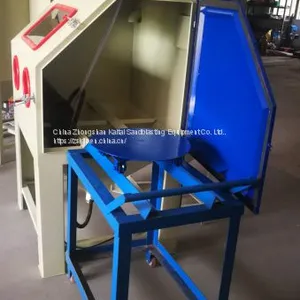

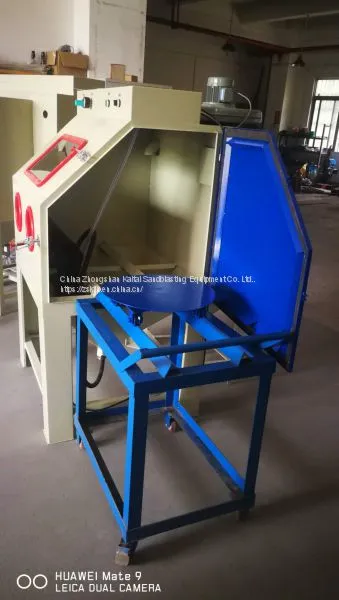

2. Equipped with movable trolley and turntable, the workpiece is placed on the turntable when operating, and then pushed into the engine room for sandblasting operation, easy to operate.
3. Automatic recovery and recycling of sand material, equipped with dust removal device to effectively solve dust in the process of sand blasting.
4, according to the customer's specifications and weight, make automatic or semi-automatic models.
5. Use of sand materials: alumina sand (emery), silicon carbide, glass beads, walnut sand, resin sand, nylon sand, ceramic beads, etc.
6, wide fan should be in tire mold, computer shell mold, silicone rubber mold, engine and so on.
Application scope of sandblasting machine:
Suitable for sandblasting flat, disc, tetragonal, profile and other heterogeneous workpieces, such as: flat stainless steel sheet, ordinary steel sheet, glass sheet, stone, flat non-stick pan, baking pan, toaster, computer case, functional DVD panel, notebook, computer motherboard, decorations, package badge, communicator Materials, aluminum plates, profiles and other special-shaped parts.
The advantages of sandblasting machine are:
1. the metal parts of the sandblaster are basically free from damage and the dimensional accuracy will not change.
2. the surface of the parts is not contaminated, and the abrasive will not react with the parts.
3. Sandblasting machine can easily handle grooves, grooves and other difficult to contact parts, a variety of granularity of abrasive can choose to use;
4. The cost of treatment is greatly reduced, mainly reflected in the improvement of the efficiency of the sandblasting machine, which can meet various surface finishing requirements.
5. low energy consumption and low cost.
6. sandblasting machine does not pollute the environment, and saves the cost of environmental treatment.
email：1602005722@qq.com
