Help CenterSaw Blade Automatic Sandblasting Machine
Related Products
-
Conveying Type Automatic Sand Blasting MachineCNY 30000 - 80000MOQ: 1 Set -
Rotary Automatic Sandblasting MachineCNY 40000 - 120000MOQ: 1 Set
-
Automatic Sand Blasting Machine for Glass and StoneCNY 15000 - 60000MOQ: 1 Set
-
Special Automatic Sandblasting Machine for Wine BottleCNY 40000 - 80000MOQ: 1 Set
-
Crawler Type Deburring MachineCNY 10000 - 25000MOQ: 1 Set

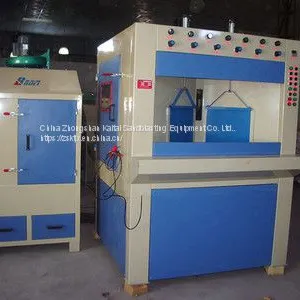

1 machine body
The sandblasting machine is welded by 3mm cold rolled steel plate. The exterior and exterior of the machine are sprayed with plastic. The external dimensions are 1100 (L) x 1000 (W) x 2150 (H) mm.

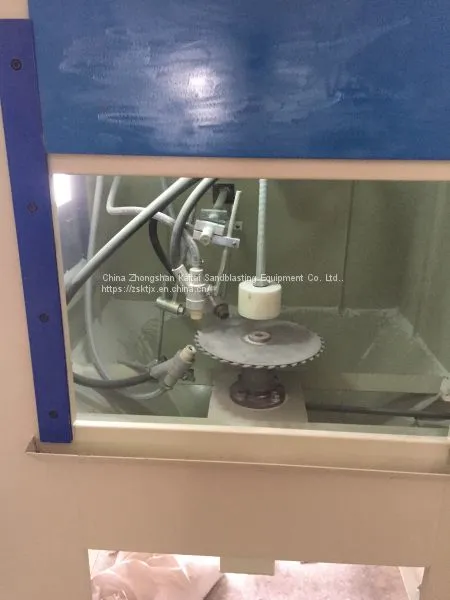

2 workpiece rotation device
The belt conveyer is used to drive the workpiece to rotate at uniform speed.
The rotating device is composed of three-phase AC motor drive (motor power: 0.2 kw), B-type triangular belt (70 inches), B-type two-groove belt pulley, rotating bearing seat, etc.
3 workpiece compaction device
It is composed of SCAB-50-100 cylinder, passive bearing seat and pre tightening spring.
4 sandblasting launcher
Number of sand blasting launchers: 3. Nozzle material: boron carbide and nozzle diameter: 8mm.
5 compressed air system (user self configuration)
After the compressed air enters the machine, the pressure is regulated by a pressure regulator (1-7 bar), and the pressure gauge is installed to show its value (the user is required to provide dry compressed air with a pressure of more than 8 bar and a flow rate of about 2 m3/min).
6 electrical system
The power of the exhaust fan is 1.1KW.
Workpiece rotary motor power: 0.2KW, transmission ratio of 1:60, three-phase AC motor with frequency conversion speed regulation device;
The total power is 1.4kw.
It also includes 99 seconds timer, H3Y30 second delay device, intermediate relay 4a/4b, button and emergency stop.
7 cyclone separator
Adopt 3mm cold rolled steel plate welding structure. The abrasive and dust can be separated for further use so that the dust collector can only absorb dust and the sand can be recycled to reduce abrasive consumption and increase power consumption.
8 deduster
A, structure type: cloth bag dust collector, fan motor: 1.1kw
Set up dusting cloth bag: 16.
Outline size: 600 (L) x 600 (W) x 1700 (H) mm
The advantages of sandblasting machine are:
1. the metal parts of the sandblaster are basically free from damage and the dimensional accuracy will not change.
2. the surface of the parts is not contaminated, and the abrasive will not react with the parts.
3. Sandblasting machine can easily handle grooves, grooves and other difficult to contact parts, a variety of granularity of abrasive can choose to use;
4. The cost of treatment is greatly reduced, mainly reflected in the improvement of the efficiency of the sandblasting machine, which can meet various surface finishing requirements.
5. low energy consumption and low cost.
6. sandblasting machine does not pollute the environment, and saves the cost of environmental treatment.
