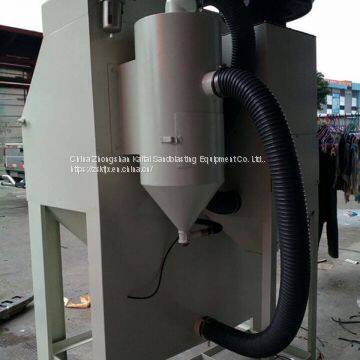

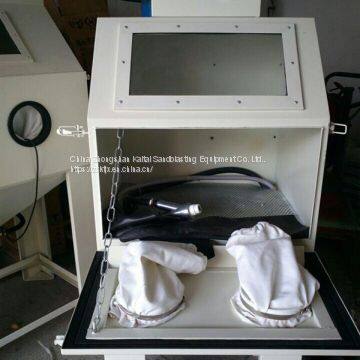

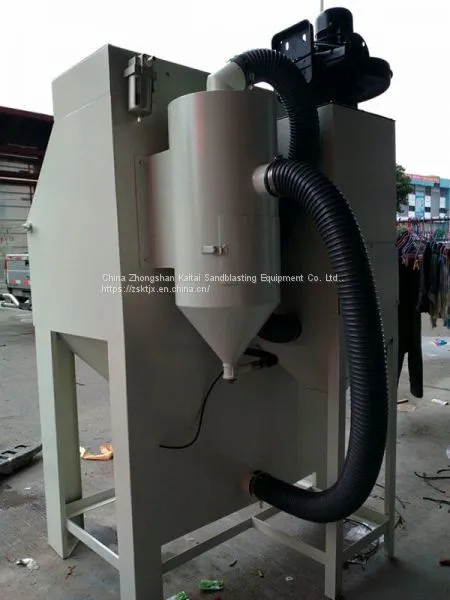

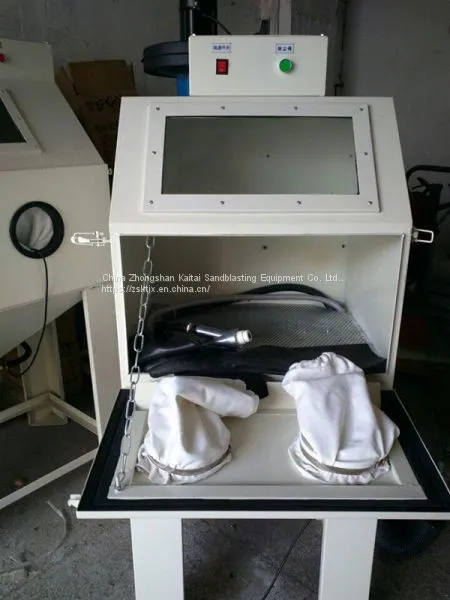

Help CenterSmall Manual Sandblasting Machine，Increase Adhesion and Derusting
Related Products
-
Manual Sandblasting Machine，Pretreatment Equipment for Deburring and ElectroplatingCNY 4800 - 5500MOQ: 1 Set -
Wet Manual Sandblasting MachineCNY 12000 - 15000MOQ: 1 Set
-
High Pressure Manual Sand Blasting MachineCNY 10000 - 15000MOQ: 1 Set
-
Box Type Manual Sandblasting Machine，The Oxide Layer Can be RemovedCNY 8000 - 15000MOQ: 1 Set
-
Wet Sandblasting Machine, Environmental Protection Without DustCNY 15000 - 18000MOQ: 1 Barrel
Machine profile size: 600X830X1500
Working cabin size: 600X500X500
Separator motor: 220V/50HZ/550W
Machine lighting: 220V 13W energy saving lamp
Separator air volume: 8.5m3/min
Working pressure: 2-7bar(kg/cm2)
Dust removal method: bag-type dust removal box, using pneumatic automatic/manual dust removal
Air source requirements: pressure 7BAR (kg/ m2) flow 0.8-1.2 m3 /min
Scope of application: treatment before electroplating and spraying to improve adhesion; All kinds of molds, casting parts, stamping parts, metal surface to remove oxide, residue, rust, oil, old parts renovation; Ceramic products, glass products, plastic products lighting, atomization, edge removal, deburr, enhance spray adhesion.
Product features: scientific and reasonable design of the whole machine, small size of the body, superior performance, with small sand-spinning equipment occupation, safety and environmental protection, automatic sand return, cyclone separator can separate the dust and sand; Limit the wear and tear of abrasive. Automatic drying device can be installed; Avoid the trouble of blocking the sand pipe and influencing the sand blasting effect caused by damp. Can be made according to the customer's requirements.
Functions of sandblasting machine:
1. Surface processing: metal oxide layer, carbide black skin, removal of rust on metal or non-metal surface, such as gravity casting mold, oxide of rubber mold or parting agent, removal of black spots on ceramic surface, removal of uranium color, reproduction of painting.
2. Beautification and processing: the matting or fogging treatment of various gold, K gold jewelry and precious metal products, the fogging processing of crystal, glass, ripple, acrylic and other non-metal products and the processing of metallic luster on the surface of processed products.
3. Etching and processing: etching artists of jade, crystal, agate, semi-precious stone, seal, elegant stone, antique, marble tombstone, ceramic, wood, bamboo, etc.
4. Pretreatment and processing: TEFLON, PU, rubber, plastic coating, ROLLER, electroplating, metal spray welding, titanium plating and other pretreatment processes, so as to increase surface adhesion.
5. Rough edge processing: wood, plastic, zinc, aluminum die casting, electronic parts, magnetic core removal.
6. Stress elimination processing: the stress elimination processing of aerospace, national defense, precision industrial parts, rust removal, paint finish removal and renovation, etc.
7. Processing of electronic parts: fogging and etching of silicon chips, removal of impurities on the back of the wafer, overflow of encapsulation of electronic parts, removal of printed words on finished products, and cleaning of electric heating of ceramics
8. Processing of molds: sand blasting on the surface of general molds, processing on the fogging after the mold bites, linear cutting molds, glass molds, tire molds, conductive rubber molds, shoe molds, electroplate molds, key molds, plastic molds.
9. Processing of large-scale crops: rust removal, paint removal, maintenance and automatic fogging treatment of large workpieces such as oil tank, chemical tank, ship hull, copper structure, iron house, container, automobile industry, etc.
10. Glass processing: sand blasting of various process glass.
The advantages of sandblasting machine are:
1. the metal parts of the sandblaster are basically free from damage and the dimensional accuracy will not change.
2. the surface of the parts is not contaminated, and the abrasive will not react with the parts.
3. Sandblasting machine can easily handle grooves, grooves and other difficult to contact parts, a variety of granularity of abrasive can choose to use;
4. The cost of treatment is greatly reduced, mainly reflected in the improvement of the efficiency of the sandblasting machine, which can meet various surface finishing requirements.
5. low energy consumption and low cost.
6. sandblasting machine does not pollute the environment, and saves the cost of environmental treatment.
