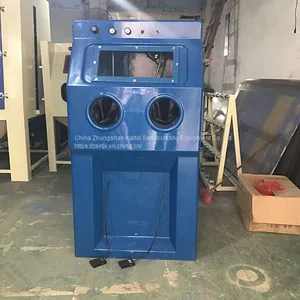

Parameters of kt-9070w FRP wet sandblasting machine:
Model no. : 9070W manual general pressure wet sandblasting machine
External dimensions: 910*710*1600mm
Equipment working room size: 900*700*580mm
Sand pump material: high wear - resistant polyurethane material

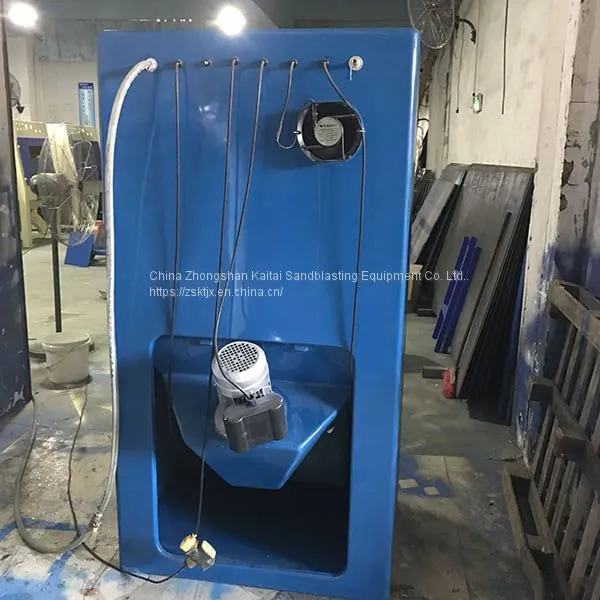

Sand pump motor: 220V/50HZ/750W
Cabin material: fiberglass material, never rust
Light: LED13W explosion-proof lamp
Number of sand blast emitter: 1 (aluminum alloy with boron carbide nozzle)
Observation window: 1 picture frame
Foot switch: 2 uncharged air bag switches
Pressure regulating valve: 1 (2~8kg range is adjustable
Solenoid valve: 2 (control power, gas switch)
Product features

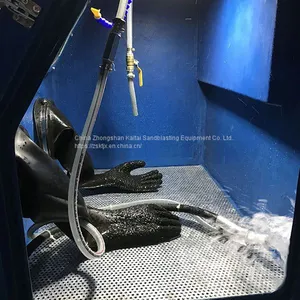

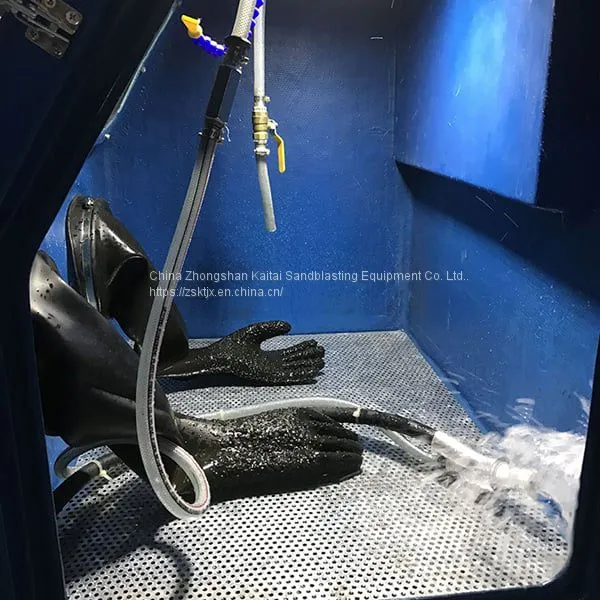

Working chamber is glass cylinder or stainless steel material, never rust. Rubber sheets are hung in the work cabin to prevent jet impact.
2. No ethereal dust is produced at work, which greatly improves the pollution of dust to the environment and the health hazard to operators.
3 small, pedal control, easy to operate, safe and reliable.
4 professional production of grinding fluid pump, Sand blasting transmitter, working table are lined with wear-resistant material - polyurethane, spray gun nozzle USES boron carbide materials, long life, to ensure reliable performance.
5 applicable to a variety of materials and grit abrasive, can use fine sand, suitable for precision workpiece surface treatment.
6. The abrasive is recycled within the effective time with small consumption.
7. Simple structure and convenient maintenance.
8. Anti-rust agent can be added to sandblasting fluid to prevent iron workpieces from rust.
The product description
Liquid sandblasting is to put abrasive in water, with grinding fluid pump and compressed air as power, through the sandblasting transmitter to spray the grinding fluid to the surface of the processed workpiece, to achieve the purpose of cleaning and polishing parts. It is suitable for directly cleaning oily and dirty workpiece surface to avoid changing color of the material, liquid sandblasting machine is also better than dry sandblasting machine. The most important characteristic lies in the use of the powder sand material, the liquid sandblasting has its unique use effect. Dry sandblasting has its limitations.
Purpose Application:
Used for surface cleaning of parts and pretreatment of coating and flaw detection process, it can clean oxide scale, residual salt, molding sand, oil stain, rust, carbon deposition, mold release agent, welding slag stain, paint film and coating of heat treated parts, welding parts, castings, forgings, etc. The quality of cleaning can reach Sa3 level, and the active table can be obtained. Surface to improve the adhesion of coating and coating.
It is used for cleaning small burrs and surface residues of machine parts. It can be used for polishing the surface of aluminum castings and stainless steel parts to obtain matte surface and diffuse reflective surface, and can be used for decorative surface pattern painting and engraving. The effect of finishing is more delicate and beautiful than dry decoration, and the grade of products is improved.
It can be used for finishing parts with high precision, small Ra value of roughness and complex shape which are difficult to be finished by other machining methods.
It is used to improve the physical and mechanical properties of the workpiece surface, such as changing the surface stress state, improving the fatigue strength, improving the surface lubrication state of the matching pair and the motion condition of the friction pair, reducing the operation noise.
It is used for refurbishing old parts.
It is used for mold cleaning, not damaging the mold surface and ensuring mold accuracy. Typical Application: Precision mold, electronic parts, medical instruments, cutting tools, piston rings, aviation parts, aluminum alloy, titanium alloy workpiece surface finishing, circular saw blades and oil stained workpieces of single, batch sandblasting processing.
