Equipment dimensions: 1000 long *1030 width *2200 high mm
Track size: 2600 long *800 wide mm
Throw head motor power: 4KW 380V
Caterpillar motor power: 400W 1:30
Power of dedusting fan: 750W
Vibration motor: 20W
Lighting: 20W
Electrostatic water: deliver 1 barrels.
Features of crawler type burr sandblasting machine:
1. This machine is specially designed for processing the edges (batch heads) of thermosetting plastic products produced by hot compression or injection molding.
2. Sand material ejection is a high-speed rotating impeller ejection on the workpiece. The size of ejection force can be adjusted on the control panel to remove the rough edges of the flakes and holes.
Whole.
3. The machine is equipped with vibration hoop net to filter flakes and large flakes and fragments.
4, the machine is equipped with electrostatic motor and nozzle to reduce the attachment of burrs and dust.
5, drum type, workpiece in the stainless steel basket, the hole can be customized according to the size of the workpiece.
6. Ring belt type, can drive the workpiece to turn over the rolling projection mode, can directly pour the product into the sandblasting operation, can also add roller basket operation mode.
7. This machine combines the edge machine with dust collector, which can save space and reduce dust pollution.

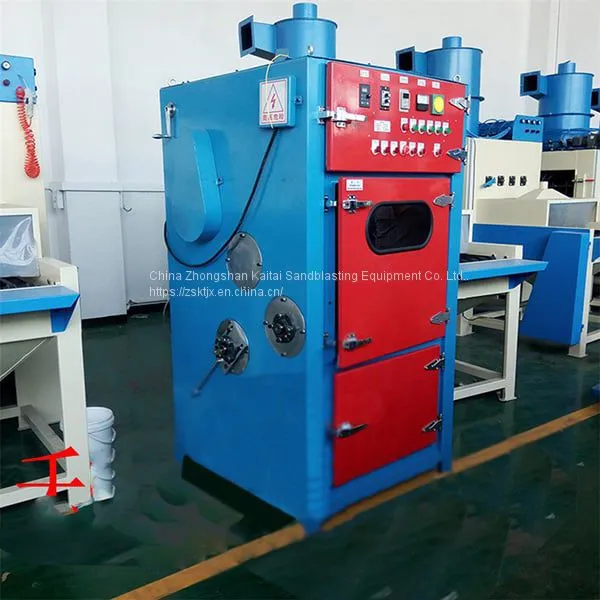

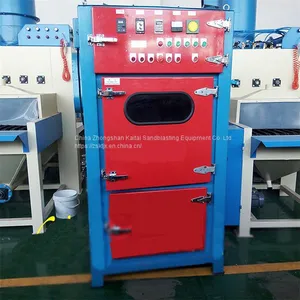

Crawler type burr blasting machine:
It is suitable for removing the rough edge of thermosetting plastics such as bakelite (skeleton), alloy die casting, ABS, DAP, LCP, PPS etc.
The principle of crawler type burring machine:
It is the burrs of hot or rigid plastic products for compression or injection molding. It comes from the combination of the projecting device, the chassis, the belt conveyor and the dust collecting device. It is a washing machine with simple appearance, no space and high efficiency.
The projecting material is projected onto the product by a high-speed rotating impeller, and the flaky edge, the concave edge or the edge in the hole can be removed in a short time. The size of the projecting power can be adjusted on the keyboard of the frequency converter on the control panel.

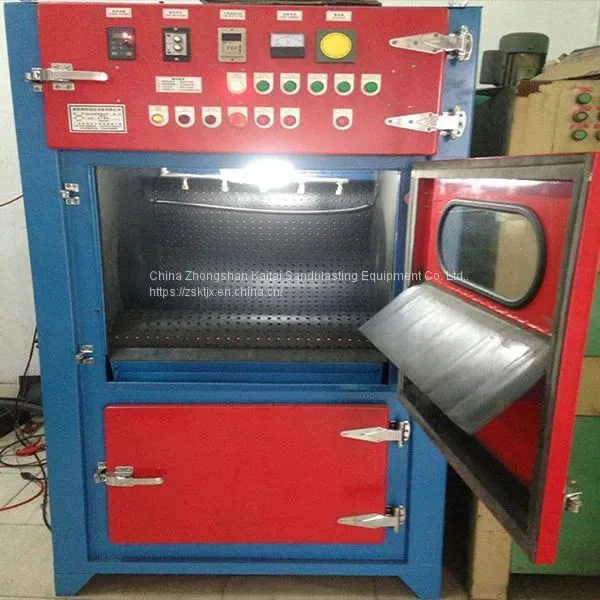

The spray chamber is made of belt conveyor, all of which are covered with rubber. When the input product is stirred in the forward rotation of the belt, the edge is uniformly removed by the impact of the projecting material thrown out at high speed.
The projected material can be used continuously through a delicate circulation system. Powdery brim and smaller projected material are attracted by the dust collector to capture, while larger brim is filtered out by a screen.
A nozzle for humidification is arranged in the middle of the suction pipe. Proper humidity can enhance spray effect, prevent dust adhesion and increase the life of projecting material.
