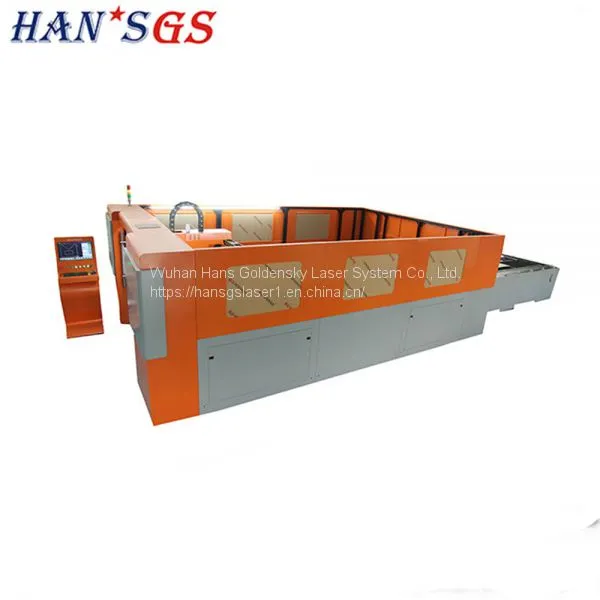

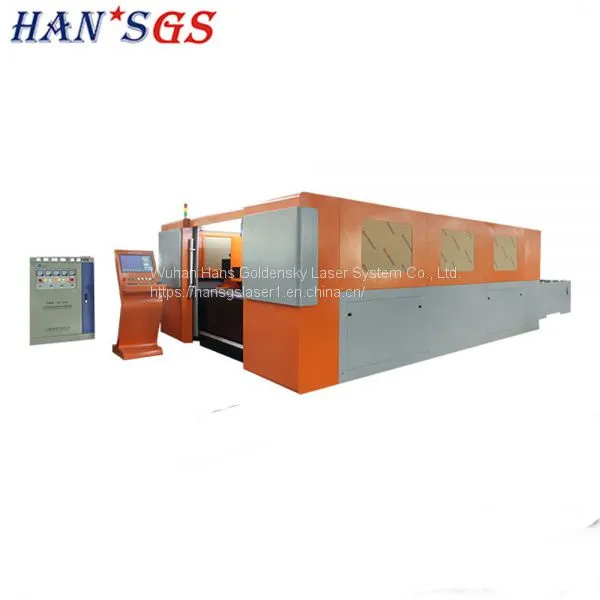

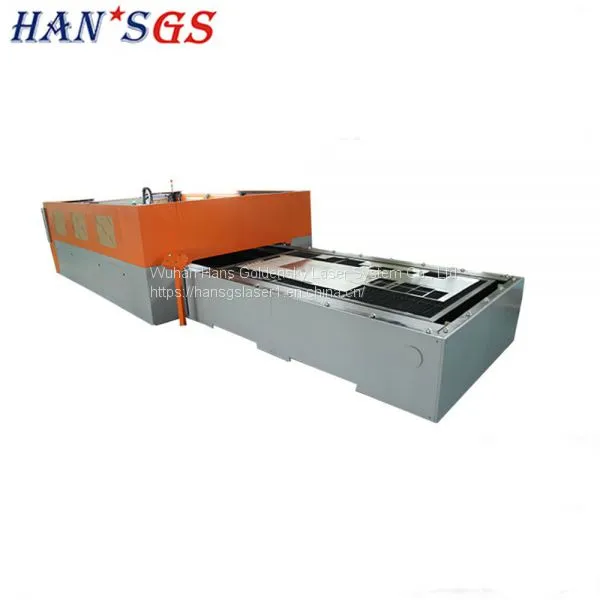

Cnc Metal Cutting Laser Cutter Machine for 3mm 6mm 12mm 16mm Steel Plate Cutting
US$ 50000 - 250000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HANS GS
Place of Origin:
China
Model Number:
GS-LFDS3015
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
30 days
Related Products
-
1500 * 3000 Cnc Laser Cutter Machine With Top IPG Laser , Sheet Metal CutterUS$ 50000 - 250000MOQ: 1 Set -
Full Automatic Fiber Laser Cutting Machine for 1mm 2mm 12mm 15mm Steel Plate CuttingUS$ 50000 - 250000MOQ: 1 Set
-
1500W 2000W Stainless Steel Mild Steel Aluminum Hot Sale Metal CNC Fiber Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Set
-
1000W To3000W Fiber Laser Cutting Machine With Exchange Table for MetalUS$ 50000 - 250000MOQ: 1 Set
-
1000w Stainless Carbon Steel Fiber Laser Cutting Machine for Galvanized PlateUS$ 50000 - 250000MOQ: 1 Set
Brand Name
HANS GS
Place of Origin
China
Model Number
GS-LFDS3015
Certification
CE, ISO, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Graphic Format Supported
DXF
Control Software
AOUT CAD
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
20m/min
Cutting Area
3000mm × 1500mm
Cutting Thickness
0.2-8mm
Applicable Material
Metal
Laser Type
Fiber Laser
Product Introduction
laser cutting machine is a complete set of laser cutting machine with optical, mechanical and electrical integration. The equipment consists of fiber laser, chiller, fiber cutting head, cutting machine, exchange table, control system, And ventilation systems and other functional components integration.
Parameters
Model |
GS-LFDS3015 |
Laser source medium |
Fiber |
Cutting range (L * W) |
3000 mm × 1500 mm |
Z axle stroke |
250 mm |
Max. positioning speed |
120 m/min |
X,Y axle Max. accelerate speed |
1.2G |
Cooling form |
Water cooling |
Laser wavelength |
1070nm |
|
Output power of laser source |
1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional) |
Min. cutting gap |
≤ 0.1 mm |
Positioning accuracy of X, Y and Z axles |
± 0.03 mm |
Repeated positioning accuracy of X, Y and Z axles |
± 0.01 mm |
Thickness of cutting material (according to material) |
0.2 - 25 mm |
Drive model |
Imported servo motor |
Power requirement |
380V, 50/60 Hz |
Working temperature |
5-45℃ |
Continuous working time |
24 Hours |
Machine weight |
About 12130 Kgs |
Total protection level of power supply |
IP54 |
Advantages:
1. Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
2.Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with same power specification.
3.Adopt international top brand laser source with stable performance.
4.The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it's environmental protection.
5.Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
6.The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.
7.Convenient operation with fiber transmission, laser route adjustment is unnecessary.
8.Satisfied with flexible processing with small size and intense structure design.
1. Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
2.Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with same power specification.
3.Adopt international top brand laser source with stable performance.
4.The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it's environmental protection.
5.Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
6.The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.
7.Convenient operation with fiber transmission, laser route adjustment is unnecessary.
8.Satisfied with flexible processing with small size and intense structure design.
