CNC Metal Tube/Plate Fiber Laser Cutting Machine Parts Introduction:
1.Machine Bed Gantry design with double rack and guide, double drive with servo motor; Integral cast aluminum crossbeam of high performance.
2.Welding type machine frame with manual aging treatment; the machine bed is precision processed by gantry type milling machine to ensure the resistance to shock, rigidity and stability.
3.The crossbeam made of high intensity aluminum has the feature of light weight, high rigidity and good accelerating ability; precise process by gantry type milling machine after aging treatment to ensure the movement precision.
4.The aging treatment during the welding to remove welding stress in order to prevent the structure deformation.
5.HIWIN square linear guide from Taiwan with high position precision, less wear; high precision for long service time, easy installation and replacement.
Specifications
Model |
GS-LFTP3015/4015/6015 |
Output power of laser source (Optional) |
500W/1000W/1500W |
|
Cutting area (L * W) (Optional) |
3000 * 1500 mm 4000 * 1500 mm 6000 * 1500 mm |
Max. tube diameter |
200 mm |
Max. tube processing length |
3 m |
Max. tube cutting thickness |
6 mm |
X axle stroke |
3048 mm |
Y axle stroke |
2000 mm |
Z axle stroke |
80 mm |
Cooling |
water cooling |
Max. accelerated speed of X, Y axles |
1.2 G |
Kerf Width |
0.1 - 0.3 mm |
Positioning accuracy of X, Y and Z axles |
± 0.05 mm |
Repeated positioning accuracy of X, Y and Z axles |
± 0.03 mm |
Processing precision of work piece |
± 0.1 mm |
Kerf harshness |
Ra 3.2 - 12.5 μm |
Voltage |
380V, 50/60Hz |
Continuous working time |
24 Hours |
Max. bearing weight of working platform |
600 Kgs |
Total installed capacity |
20 - 25 KVA |
Total protection level of power supply |
IP54 |
Machine feature
1. Han’s external cooling water recycling system with filter system for filtration. That can decrease water change frequency into 1/6 compare with others. Constant-temperature control ensures circuit water from frozen in Winter.Dual temperature independent control,equipped with two sets cooling water to meet constant temperature request of laser cavity and outlet of laser;
2. The electric control cabin equip with air conditioner to ensure the stable power output of laser source and performance of electric parts, can reduce the attenuation of laser source in largest extent;
3. With reliable electrical wire and relay with CE certificate, which ensure the running stability of whole machine;
4. Two air outlets for faster air circulation system and dust removal Solve the problem of harsh environment caused by dust and smoke.
Product Highlights
Why it’s EtherCAT ?
1. First real open bus
2. Host station use standard network card, chip is not necessary
3. Technology Open
4. Leading performance with advantages
5. No 1 member quantity around the world and servo support
6. Product quantity exceeds the Enclosed bus RTEX, Metrolink and also exceeds the Open bus Sercos and PowerLink.
Cutting Materials

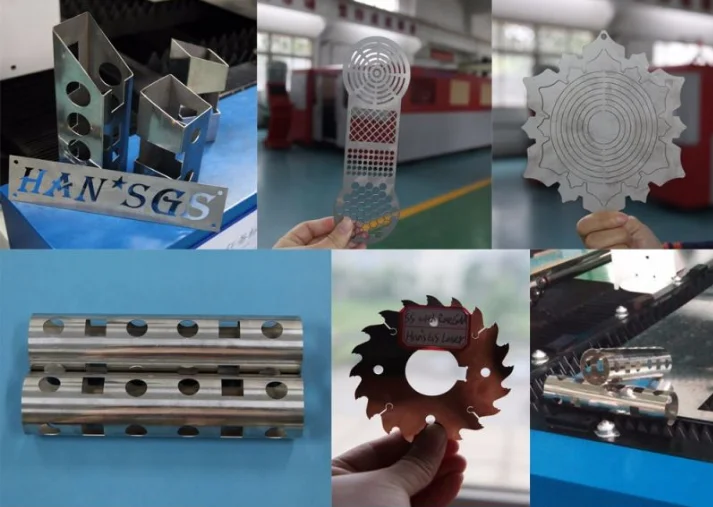

It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
