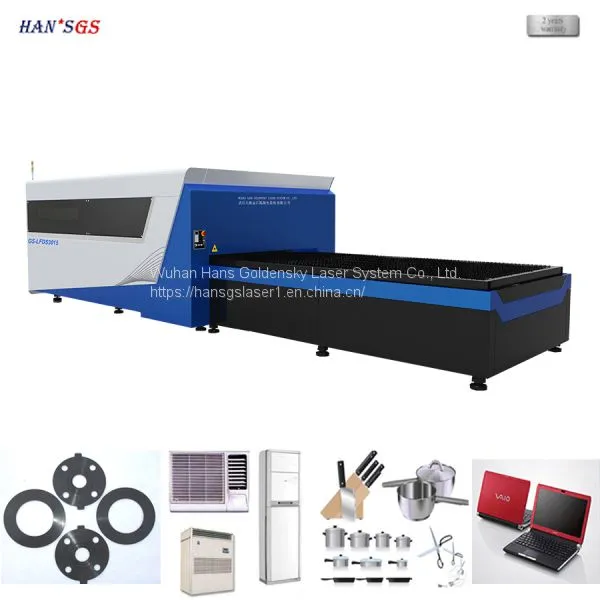

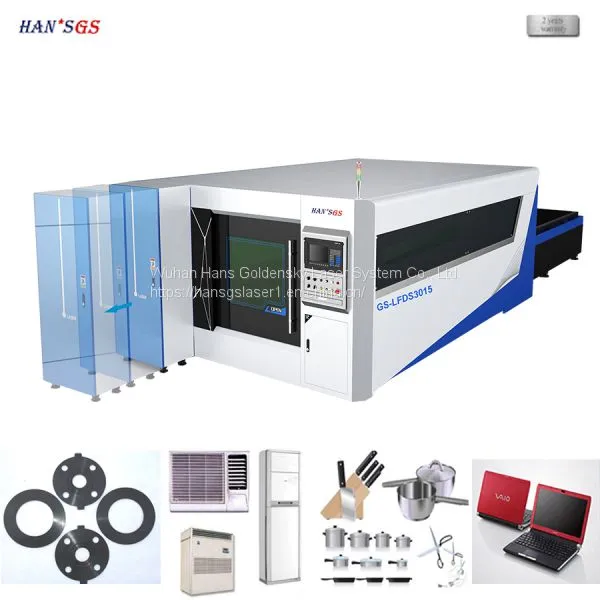

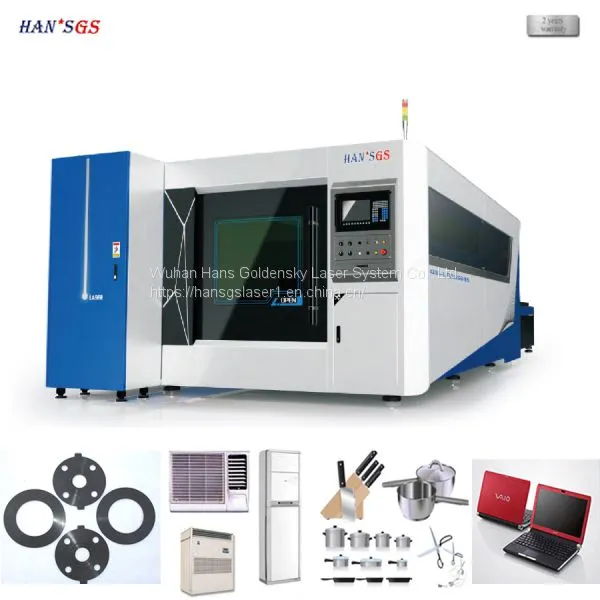

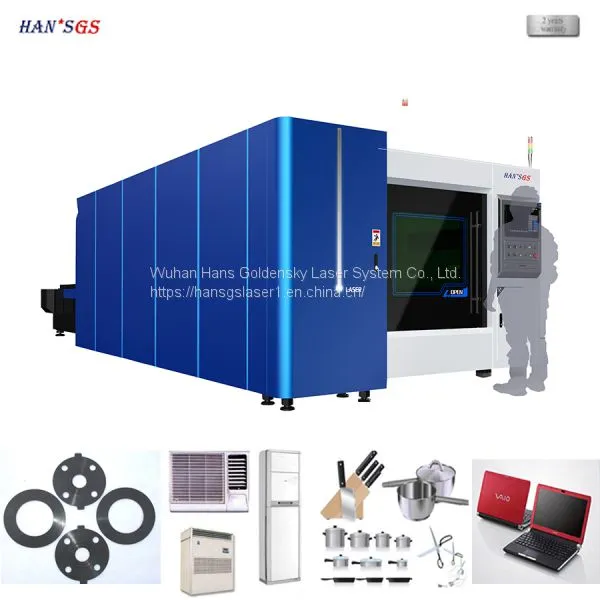

Functions of GS-LFDS3015 laser cutter
3.1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
3.2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficiency.
3.3. Equipped with exhaust device, have good exhausting effect and little pollution.
3.4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
3.5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
| Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber | ||
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm | ||
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min | ||
| Wok platform size/Max height of feeding material |
4250x2500mm/more than 120mm | ||
| Cooling form | water cooling | ||
| Laser wavelength | 1070nm | ||
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles |
±0.03 mm | ||
| Repeated positioning accuracy of X, Y and Z axles |
±0.02 mm | ||
| Thickness of cutting material (according to material) |
0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor | ||
| Power requirement | 380V,50/60Hz | ||
| Working temperature | 5ºC-45ºC | ||
| Continuous working time | 24 Hours | ||
| Machine weight | About 5950Kgs | ||
| Outer dimension | 7828mm x 3741mm x 1940mm | ||
| Total protection level of power supply | IP54 | ||
Product & cutting samples display
Applications
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
