Help CenterFiber Laser 1500W Metal Laser Cutting Machine Water Cooling
Related Products
-
1500W Fiber Metal Plate Industry Cutting Machine for SaleUS$ 50000 - 250000MOQ: 1 Set -
1000 Watt Stainless Steel Laser Cutting Machine/Laser Cutter for Metal Sheet CuttingUS$ 50000 - 250000MOQ: 1 Set
-
15000W 2000W Fiber Laser Cutter for Machine ElementUS$ 50000 - 250000MOQ: 1 Set
-
1500w 2000w GS-LFD3015 Laser Cutting Machine With Small Pipe Cutting DeviceUS$ 50000 - 250000MOQ: 1 Piece
-
2000W Laser Cutting Machine for Household Appliances, Kitchen UtensilsUS$ 50000 - 250000MOQ: 1 Set
Precision and Wear Resistance Screw Drive System
1. Smooth rolling, small friction coefficient, no empty rollingeven in micro feeding, realize nanometer located accuracy.
2. The frictional resistance of rolling is small, and the structure is simple, low abrasion of friction contact surface, thus realize the long time walking accuracy.
3. Optimal design of geometric mechanics structure, steel balls of 45° array, could not only bear the power of warp, anti-warp and cross directions at the same time, but also assure the walking accuracy.
Products

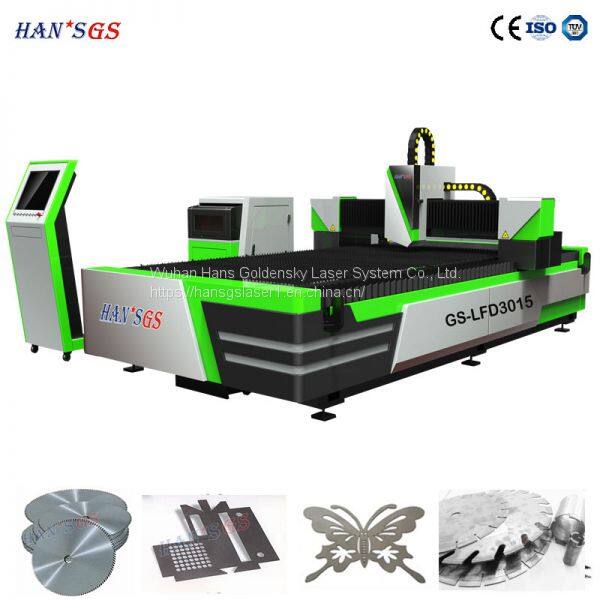

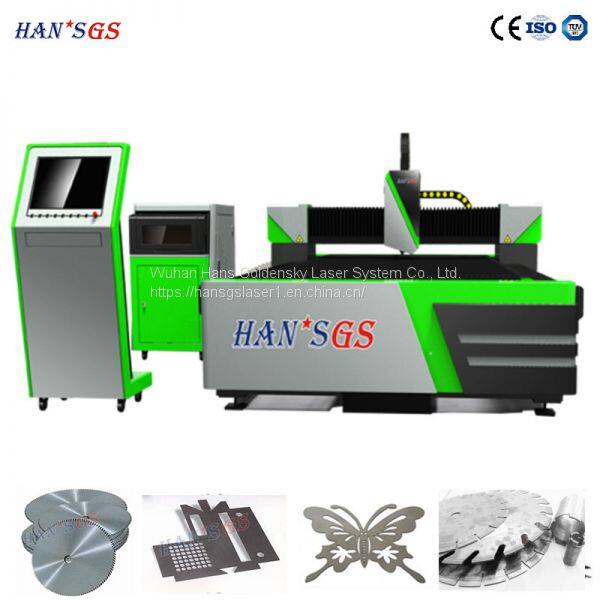

Parameters of GS-LFD3015 laser cutter
| Model | GS-LFD3015(Dual Drive) |
| Output power of laser source | 2000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max. cutting speed | 40m/min |
| Max. positioning speed | 80m/min |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Cutting gap | 0.1-0.3mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
| Thickness of cutting material (according to material) |
0.2-12mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Wok platform max bearing | 600Kgs |
| Complete System Coverage | 4500x2700mm |
| Total protection level of power supply | IP54 |
IPG Fiber Laser Source
We adopts the world's highest level IPG fiber laser source, stable performance, assured safety of the whole product quality.
| Specifications of CF3015-2000 | |
| Operation mode | CW,QCW |
| Center wavelength of radiation | 1070-1080 Nm |
| Standard output | 2000 W |
| Beam quality | 4 mm*mrad |
| Adjusting speed | 5 kHz |
| Fiber Diameter | ≥50 μm |
| Output stability(long-time) | ±2 % |
| Power | 400-460 VAC |
| power dissipation | 8 kW |
| Max. Power dissipation of cooling water | 0.4 M3/h |
| Size(W*D*H) | 850×800×1190mm |
| Weight | 350 Kg |
Excellent electronic control, comprehensive maintenance indicator
1 Unique cooling design with in-built refrigeration type dryer.
2 Up and down structure arrangement, mould structure
design which is more compact
3 Easy adjustment and less vibration

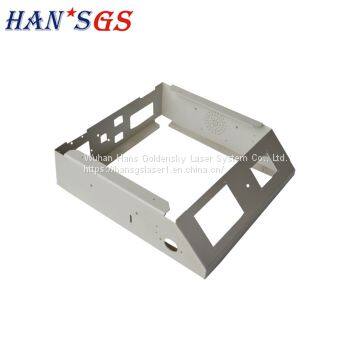

Cutting Sample
About our company
Hans Goldensky Laser System Co., Ltd. is one of the four manufacturing base of Han's Laser Technology Industry Group Co., Ltd.
Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
