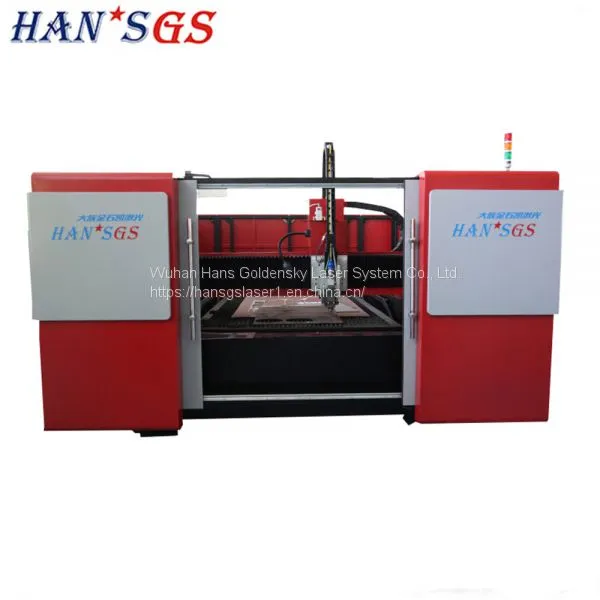

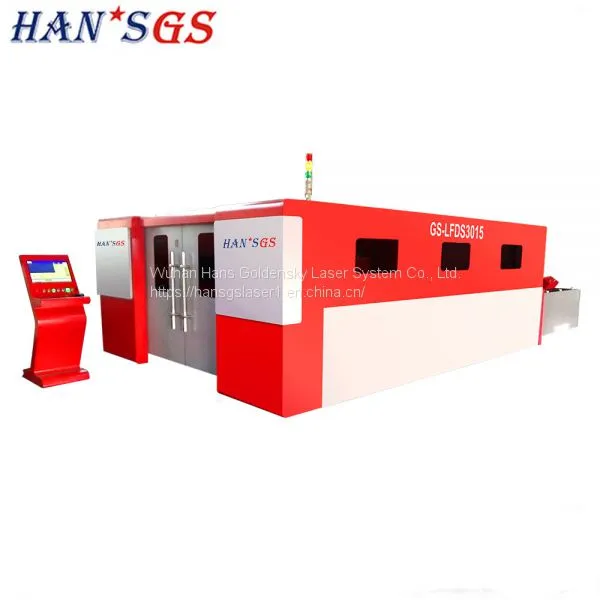

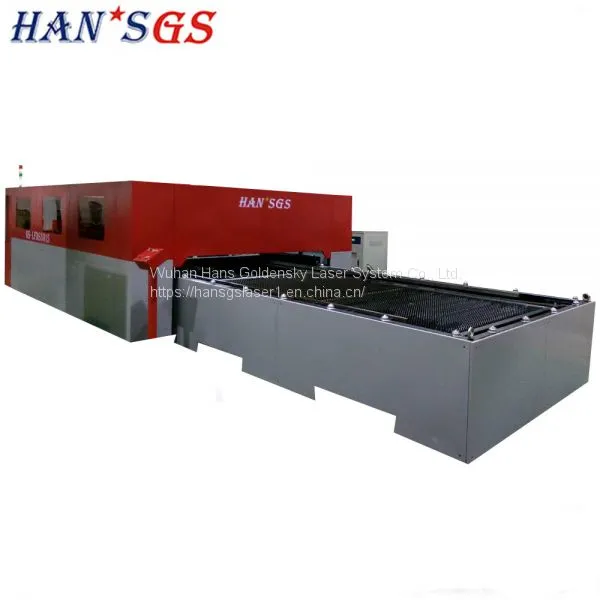

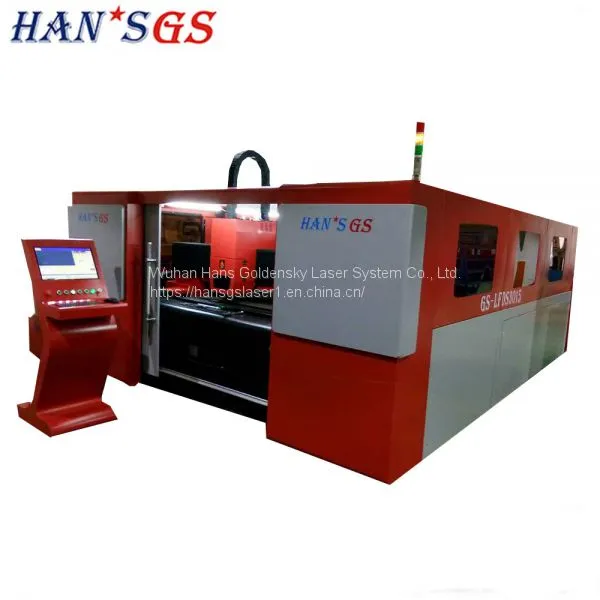

IPG Fiber Laser Cutting Machine Laser Machine GS-LFD Series Factory Price Laser Cutting machines
fiber laser iron cutting machine is widely used in: electric power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, precision parts, chassis cabinets, furniture, lighting, jewelry and other industries.
Features of Han's GS Laser Cutter
Low running and maintenance cost
Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
Environmental protection, low power consumption which is just 20%-30% compared with traditional CO2 laser cutting machine.
The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.
Parameters aluminum laser cutting machine
| Model | GS-LFDS3015 | |
| Output power of laser source | 1000-2000W | |
| Cutting area (L*W) | 3000mm × 1500mm | |
| Z axle stroke | 150 mm | |
| Max. cutting speed | 20m/min | |
| Max. positioning speed | 120m/min | |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm | |
| Cooling | water cooling | |
| Laser wavelength | 1070nm | |
| Min. cutting gap | ≤0.1mm | |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm | |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm | |
| Thickness of cutting material (according to material) |
0.2-8mm | |
| Drive model | Imported servo motor | |
| Voltage | 380V,50/60Hz | |
| Temperature | 5ºC-45ºC | |
| Continuous working time | 24 Hours | |
| Machine weight | About 2950Kgs | |
| Outer dimension | 4300mm x 2280mm x 1500mm | |
| Total protection level of power supply | IP54 | |
Switzerland Original Raytools Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1 non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2 Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3 The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.
Rational Structure and Easy Operation
Professional CNC laser control system with computer control which is more simple and convenient for operation.
Satisfied with flexible processing with small size and intense structure design.
Convenient operation with fiber transmission, laser route adjustment is unnecessary.
Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
Adopt with alternative drive system and transmission system which are imported from abroad to ensure the high speed, high precision and high reliability.
The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
Stable performance with high cutting speed, precision , efficiency and protection
High speed: Capable to cut sorts of metal board with air blowed; the cutting speed can reach dozens of meters per min.
High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision
High efficiency: Software with strong function, capable to design sorts of shapes, letters for cutting with easy and convenient operation.
High protection: the laser source and machine tool is comprehensively sealed to ensure the security of the operator, the whole working process can be viewed and inspected through the glass.
