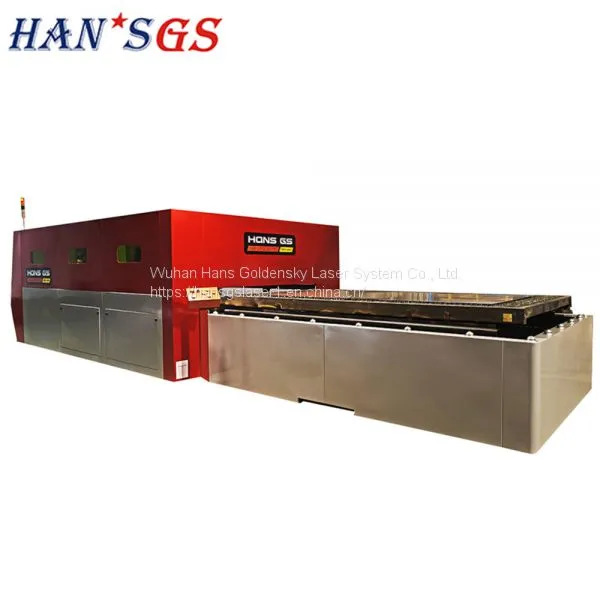

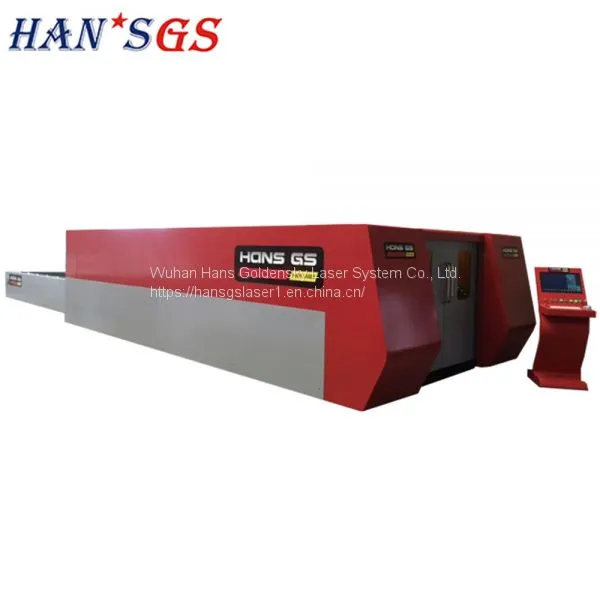

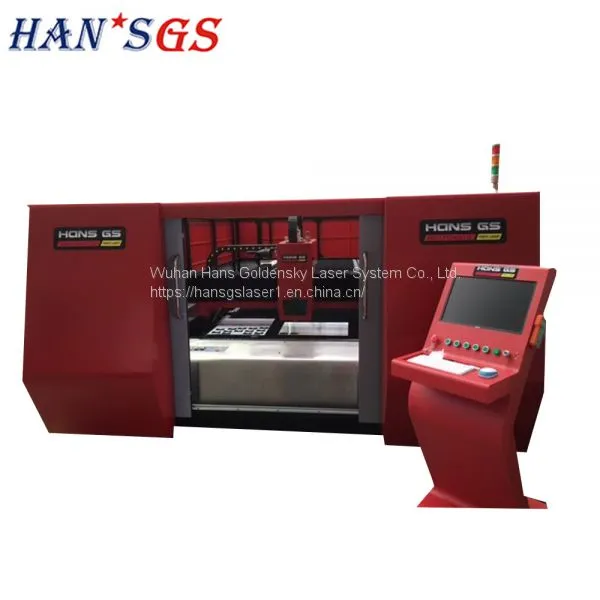

Help Center1000W To3000W Fiber Laser Cutting Machine With Exchange Table for Metal
Related Products
-
1000w Stainless Carbon Steel Fiber Laser Cutting Machine for Galvanized PlateUS$ 50000 - 250000MOQ: 1 Set -
500w 700w 1000w 1500w 2kw Energy Saving CNC Fiber Laser Cutting Machine for Sheet Metal FabricationUS$ 50000 - 250000MOQ: 1 Set
-
IPG Fiber Laser Cutting Machine Laser Machine GS-LFD Series Factory Price Laser Cutting MachinesUS$ 50000 - 250000MOQ: 1 Set
-
Metal Fabrication Fiber Laser Cutting Machine With Low Price 3015/4020/6020 (500W/1000W/1500W/2000W)US$ 50000 - 250000MOQ: 1 Set
-
Carbon Steel Aluminum Laser Cutting Machine 1.5kw 2kw 3kw Laser Cutting Machine ManufacturerUS$ 50000 - 250000MOQ: 1 Set
product features
1.Fully enclosed design provides personal safety protection against invisible laser radiation and machine tool movement
2.Switching table saves loading time
3.Drawer receiving tray facilitates collection and cleaning of debris and small parts
4.Longmen double drive structure, high damping bed, good rigidity, high speed and acceleration
5.Imported fiber lasers and electronic components ensure super stability
Parameters aluminum laser cutting machine
| Model | GS-LFDS4015 | |
| Output power of laser source | 1000-2000W | |
| Cutting area (L*W) | 4000mm × 1500mm | |
| Z axle stroke | 150 mm | |
| Max. cutting speed | 20m/min | |
| Max. positioning speed | 120m/min | |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm | |
| Cooling | water cooling | |
| Laser wavelength | 1070nm | |
| Min. cutting gap | ≤0.1mm | |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm | |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm | |
| Thickness of cutting material (according to material) |
0.2-8mm | |
| Drive model | Imported servo motor | |
| Voltage | 380V,50/60Hz | |
| Temperature | 5ºC-45ºC | |
| Continuous working time | 24 Hours | |
| Machine weight | About 2950Kgs | |
| Outer dimension | 4300mm x 2280mm x 1500mm | |
| Total protection level of power supply | IP54 | |
Machine parts
Laser Source Power/Cutting ability
| Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) | |
| 500W | Max cutting thickness | 8 | 4 | 2 | 2 |
| Max processing thickness | 5 | 3 | |||
| 700W | Max cutting thickness | 10 | 6 | 3 | 3 |
| Max processing thickness | 6 | 5 | |||
| 1000W | Max cutting thickness | 14 | 8 | 4 | 4 |
| Max processing thickness | 8 | 6 | |||
| 1500W | Max cutting thickness | 16 | 10 | 6 | 5 |
| Max processing thickness | 12 | 8 | |||
| 2000W | Max cutting thickness | 20 | 12 | 8 | 6 |
| Max processing thickness | 16 | 10 | |||
| 2500W | Max cutting thickness | 22 | 12 | 10 | 8 |
| Max processing thickness | 20 | 10 | |||
| 3000W | Max cutting thickness | 25 | 14 | 12 | 8 |
| Max processing thickness | 22 | 12 | |||
IPG Fiber Laser Generator
Rack-mount Ytterbium Fiber Laser Module ,Low Energy Consumption: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
Lifetime is more than 100,000 hours, almost free maintenance.
Optical System
Fiber transmission, no need reflect mirrors, no need to adjust optical path, laser source, no need complicated laser beam transmission system, the laser beam is fixed and only focused by one focus mirror to the cutting material surface.
Working table(Aluminum rack working table or iron saw-tooth working table)
1, High precision CNC fixed working table;
2, Special designed small pneumatic wheel carriers ,the metal sheet to be cut may slide along the machine body for easy loading;
3, Strip working table;Al material,put cutting sheet on it .

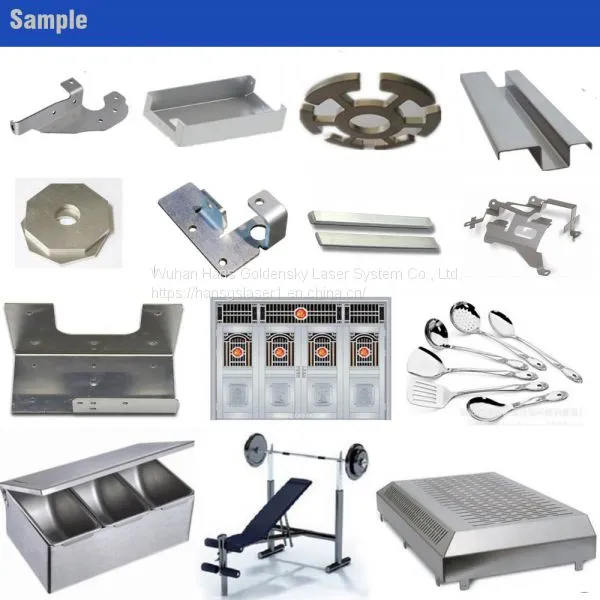

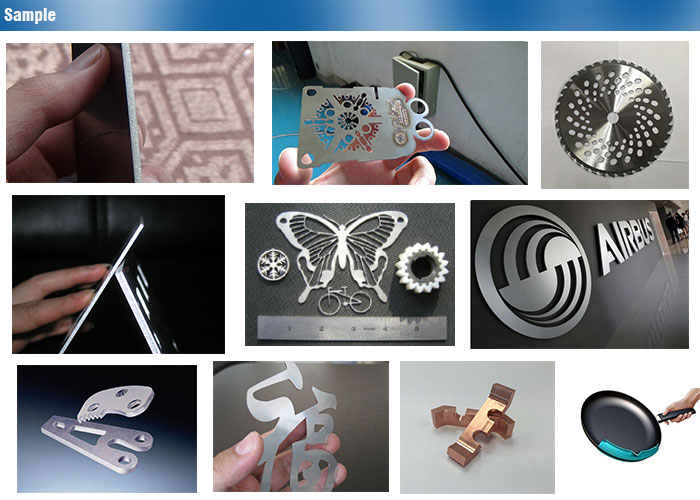

Applications
Sheet metal, hardware, kitchen utensils, electronics, auto parts, glasses, advertising displays, handicrafts, lamps, decorations, jewelry, etc.
