Help CenterFull Automatic Fiber Laser Cutting Machine for 1mm 2mm 12mm 15mm Steel Plate Cutting
Related Products
-
1500W 2000W Stainless Steel Mild Steel Aluminum Hot Sale Metal CNC Fiber Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Set -
1000W To3000W Fiber Laser Cutting Machine With Exchange Table for MetalUS$ 50000 - 250000MOQ: 1 Set
-
1000w Stainless Carbon Steel Fiber Laser Cutting Machine for Galvanized PlateUS$ 50000 - 250000MOQ: 1 Set
-
500w 700w 1000w 1500w 2kw Energy Saving CNC Fiber Laser Cutting Machine for Sheet Metal FabricationUS$ 50000 - 250000MOQ: 1 Set
-
IPG Fiber Laser Cutting Machine Laser Machine GS-LFD Series Factory Price Laser Cutting MachinesUS$ 50000 - 250000MOQ: 1 Set

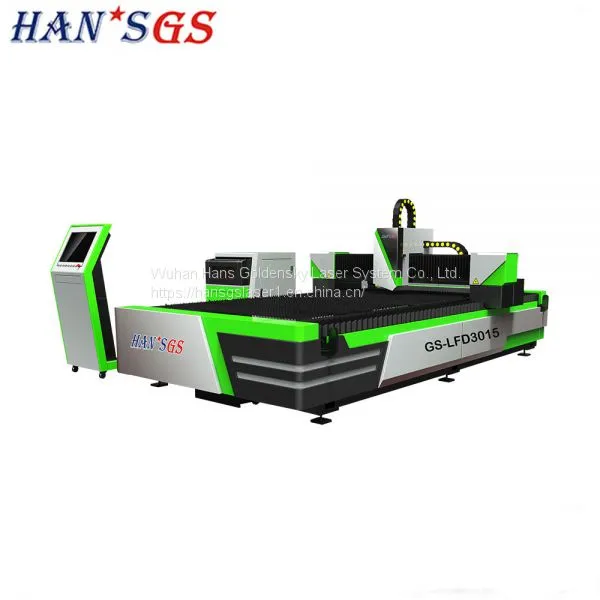

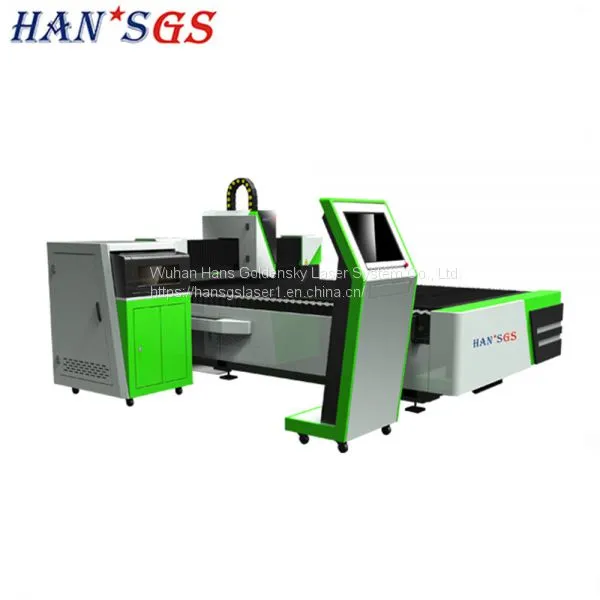

GS-LFD3015 series Carton steel Fiberlaser cutting machine adopts IPG/ROGIN fiber laser source, HIWIN linear guide drive, Presitec/Ray Tools laser cutting head, advanced control system and all of the key parts are originally imported. With Gantry CNC machine and high strength welding body which is precision machining and high temperature annealing by large CNC milling machine. The special processed aluminum beam is with high strength, light weight and good rigidity.
Parameters CNC metal sheet fiber laser cutting machine
Model |
GS-LFDS3015 |
|
Output power of laser source |
500-3000W |
|
Cutting area (L*W) |
3000mm × 1500mm |
|
Z axle stroke |
150 mm |
|
Max. cutting speed |
20m/min |
|
Max. positioning speed |
120m/min |
|
Platform size/Max height of feeding material |
4250x2500mm/more than 120mm |
|
Cooling |
water cooling |
|
Laser wavelength |
1070nm |
|
Min. cutting gap |
≤0.1mm |
|
Positioning accuracy of X, Y and Z axles |
±0.03 mm |
|
Repeated positioning accuracy of X, Y and Z axles |
±0.02 mm |
|
Thickness of cutting material |
0.2-8mm |
|
Drive model |
Imported servo motor |
|
Voltage |
380V,50/60Hz |
|
Temperature |
5ºC-45ºC |
|
Continuous working time |
24 Hours |
|
Machine weight |
About 2950Kgs |
|
Outer dimension |
4300mm x 2280mm x 1500mm |
|
Total protection level of power supply |
IP54 |
|
Laser Source Power/Cutting ability
| Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) | |
| 500W | Max cutting thickness | 8 | 4 | 2 | 2 |
| Max processing thickness | 5 | 3 | |||
| 700W | Max cutting thickness | 10 | 6 | 3 | 3 |
| Max processing thickness | 6 | 5 | |||
| 1000W | Max cutting thickness | 14 | 8 | 4 | 4 |
| Max processing thickness | 8 | 6 | |||
| 1500W | Max cutting thickness | 16 | 10 | 6 | 5 |
| Max processing thickness | 12 | 8 | |||
| 2000W | Max cutting thickness | 20 | 12 | 8 | 6 |
| Max processing thickness | 16 | 10 | |||
| 2500W | Max cutting thickness | 22 | 12 | 10 | 8 |
| Max processing thickness | 20 | 10 | |||
| 3000W | Max cutting thickness | 25 | 14 | 12 | 8 |
| Max processing thickness | 22 | 12 | |||
Advantages of Carton steel Fiber laser cutting machine:
1. Low cost: 30% photo-electric conversion efficiency, low power consumption.
2. Free maintenance: without reflective lenses, no need to adjust laser route.
3. High speed: with IPG/ROFIN laser source, hing speed running.
4. High cutting quality: less deformation, flat and elegant surface.
5. High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision.
6. Strong software: any shape, easy and convenient operation.
7. Compacted structure, small occupied area.
8. Environmental protection, longer lifetime.
Sample
The same product
Our company
View of Hans GS Industry Park
1.Top supplier of high power laser generator and laser complete system in China
2.Holding subsidiary of Hans Laser in Shenzhen
3.High tech enterprise of Optic Valley under government support
4.Registered capital 80 million, 125 employee
5.Total sales amount of 98 million in 2012,profit of 16 million
accumulated assets 150 million, asset-liability ratio 30%,50% increasing speed in the last three years
Honor and Certificate
1.Undertake company of National High tech industry
2.National Torque program
3.National Electric information developing fun supporting company
4.National Innovation fun supporting company
5.High tech enterprise of Wuhan, Hubei Province
6.Research center of high tech enterprise of Wuhan
7.Undertake company of technology program of Wuhan
