Product Introduction

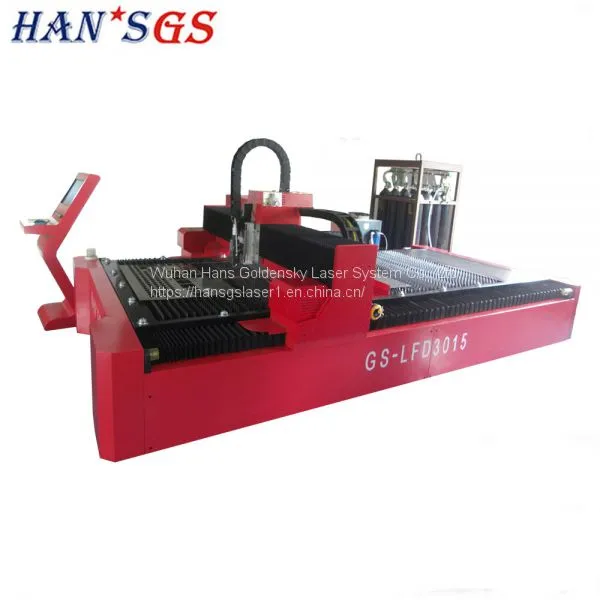

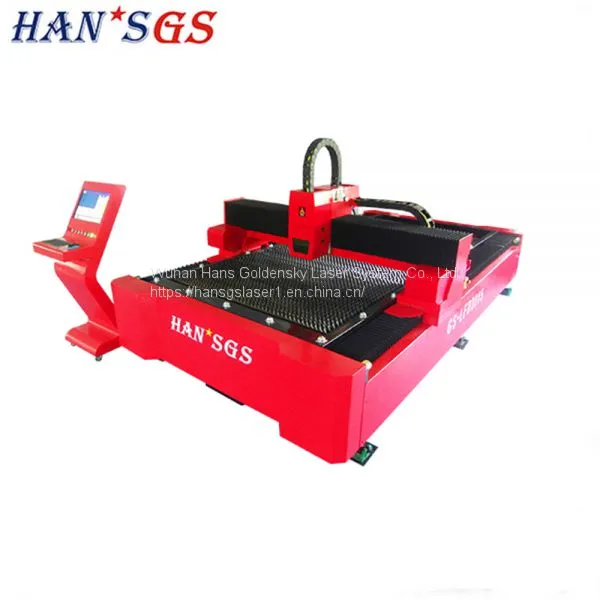

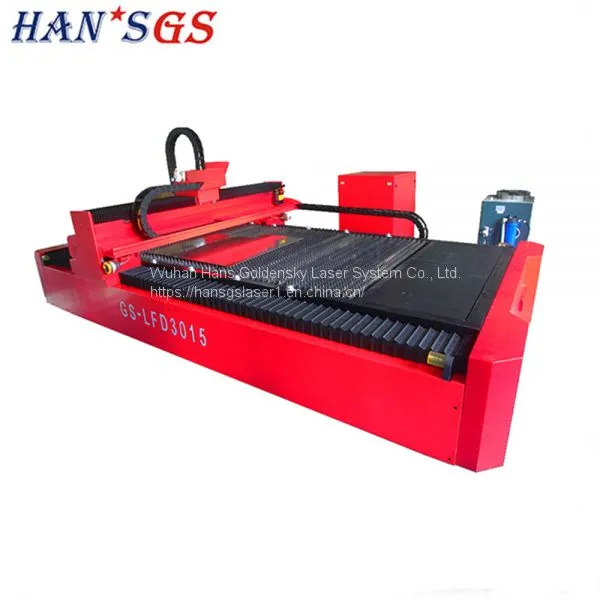

GS-LFD3015 double drive fiber laser cutting machine,cnc fiber sheet metal laser cutting machine,is high technology product intergreated of laser cutting, precision mechanism, digital control technical, adopting with big power laser source with international advance technology. The whole product is sensational designed with excellent flexibility and performance, with international famous brand of key parts, service motor, control system and others. The product has characteristic of high combination, more precision and stable running performance. It’s widely used in cutting and shaping industry for carbon steel, stainless steel and aluminum alloy, and regarded as best choice for metal cutting with high speed, high precision, high efficiency and high cost effective feature.
Parameters
| Model | GS-LFD3015(Dual Drive) |
| Output power of laser source | 500-1000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max. cutting speed | 40m/min |
| Max. positioning speed | 80m/min |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Cutting gap | 0.1-0.3mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
|
Thickness of cutting material (according to material) |
0.2-12mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Wok platform max bearing | 600Kgs |
| Complete System Coverage | 4500x2700mm |
| Total protection level of power supply | IP54 |
Functions of GS-LFD3015 laser cutter
1. Equipped with exhaust device, have good exhausting effect and little pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.
3. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break,undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
Features:
1.10mm Steel frame,more firmly
2.Single drive system,YASKAWA,helical gear drive.Drive faster,more stable
3.Gantry beam,cast aluminum.High performance,no deformation,light weight and working fast
4.Control cabinet air condition,more secure,more intimate
5.Removable control cabinet,maintenance more convenient
6.Famous system,Beckhoff CNC Control System
7.Safety protection of cutting head,focal length adjustment,drawer type protective lens
8.Cooling system,water cooling and air cooling
9.Lubrication system,manual one key lubrication and computer control automatic lubrication
10.Material protection feeding system,three sides pulley feeding and hydraulic pressure push rod feeding
11.Double dedusting system,more environmentally friendly and safe.
12.Owns CE/ISO/TUV
Cutting Materials
It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
