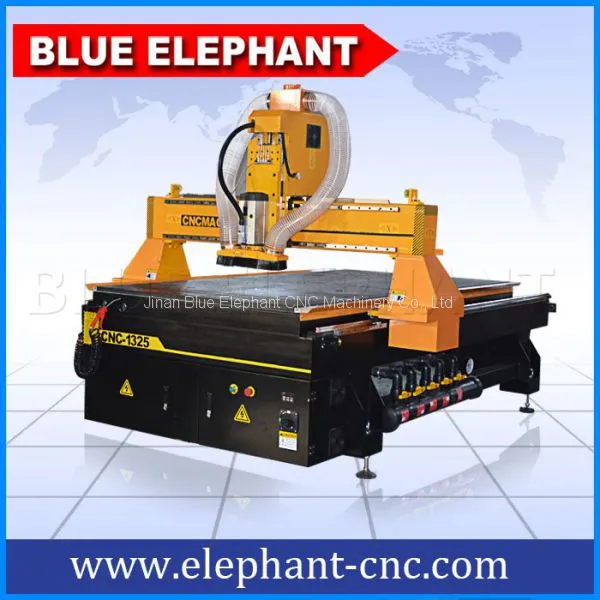

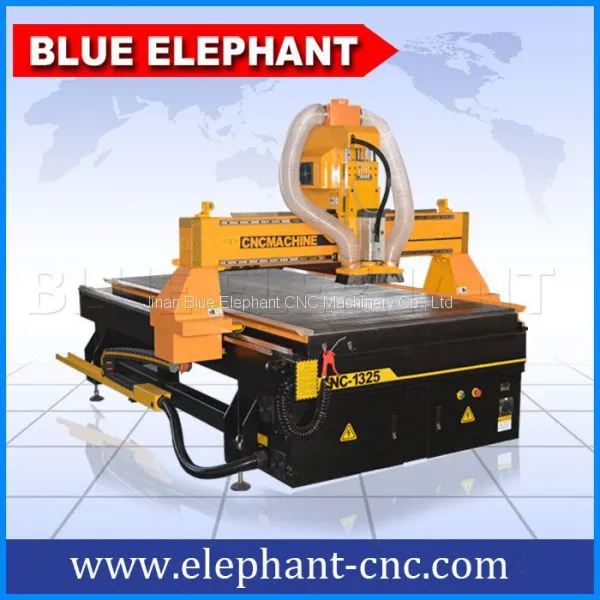

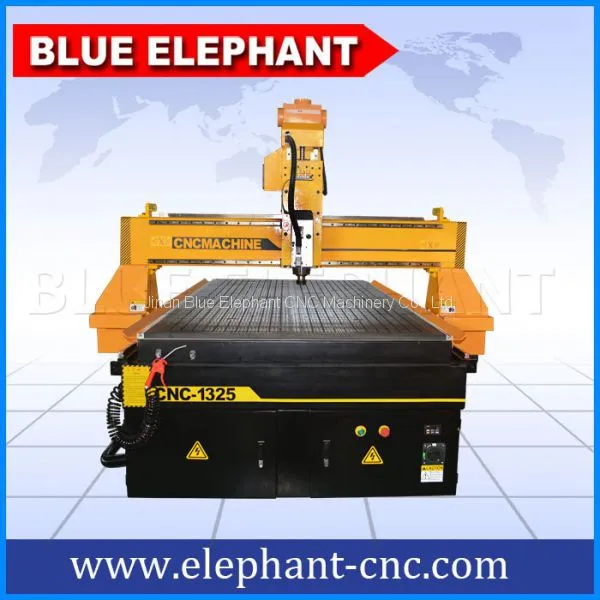

Help CenterELE1325 3D 4x8ft Cnc Engraving Cutter Wood Carving Machinery
Related Products
-
3 Axis 1530 Combination Cnc Router Woodworking Machines for Wood Door MakingUS$ 5000 - 6000MOQ: 1 Set -
Blue Elephant Professional Air Cooling Spindle 3 Axis 1550 Woodworking Cnc Router Machine for MDF CuttingUS$ 5600 - 7000MOQ: 1 Set
-
Medium Size Woodworking CNC Router Large Countertops Table Cnc Machine Which Configuration Can be SelectedUS$ 5000 - 8000MOQ: 1 Set
-
Chinese Supplier 2030 Woodworking Cnc Router , 3d Wood Cutting Cnc Machine Price ListUS$ 5000 - 6000MOQ: 1 Set
-
1212 3 Axis Cnc Router With Helical Rack and Gear DriveUS$ 6000 - 7000MOQ: 1 Set
Feature:
High efficiency: the vacuum adsorption table with the strong power vacuum pump , whole table absorption.
Rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45mpm.
Fast carving speed: high-speed 1kw YASKAWA servo motor and drive, high precision helical rack drive, with the high power engraving spindle cutting faster.
Stable operation: adopting imported linear guide rail, Large bearing capacity , smooth running, high precision, long life, carving precisely.
Intelligent control:adopting DSP control system.It is very easy to master.
Sturdy and durable: Thicker and bigger welded Steel Square Tube Structure, Gantry moving, strengthen table makes positioning accuracy more accurate.
Parameters:
| Description | Parameter |
| model | ELE-1325 |
| Working area(X*Y*Z) | 1300*2500*200mm |
| Max rapid moving speed | 33000mm/min |
| Max carving speed | 25000mm/min |
| Cutting accuracy | ±0.01/300mm |
| Repositioning Accuracy | ±0.01mm |
| Table Surface | Vacuum Table |
| Frame | Welded Steel Square Tube Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |

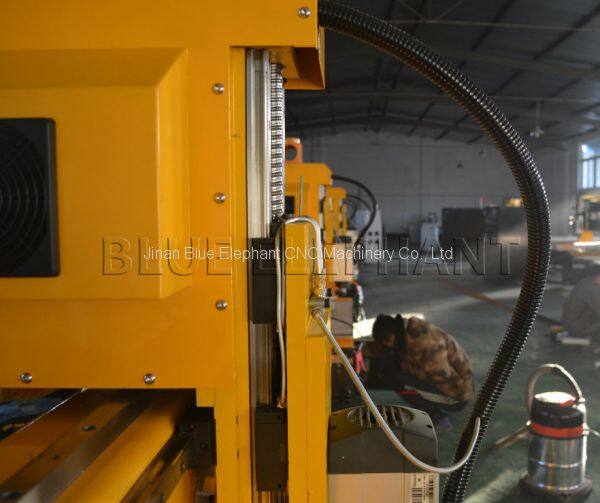

| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |

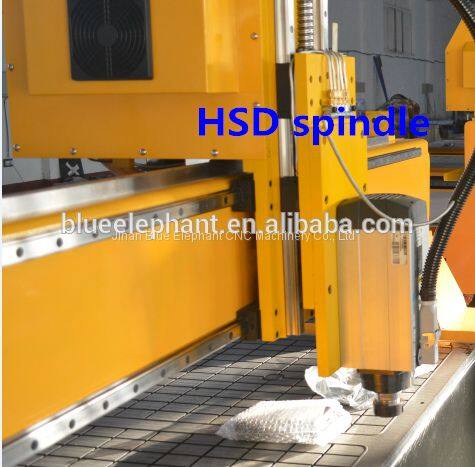

| Spindle Power | 6 kw HSD air cooling spindle |
| Spindle Speed | 18000 rpm |
| Inveter | Imported DELTA |
| Drive Motors | 1kw YASKAWA servo system |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP A11 control System |
| Collet | ER32 |
| Software Compatibility | Type3/UcancameV9 Software |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Contact us
Email: manager@elephant-cnc.com
skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
