Features:
- Effective working area: 2200*4000*200mm

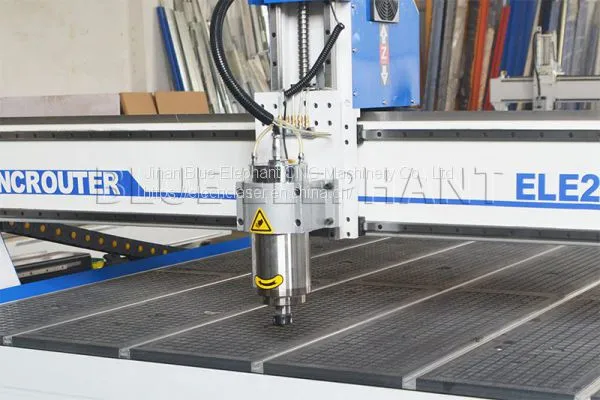

- 5.5KW water cooling spindle
- DSP A11 control system
- Stepper motor FL118 and YAKO 2608 driver
- 5.5KW Fuling inverter

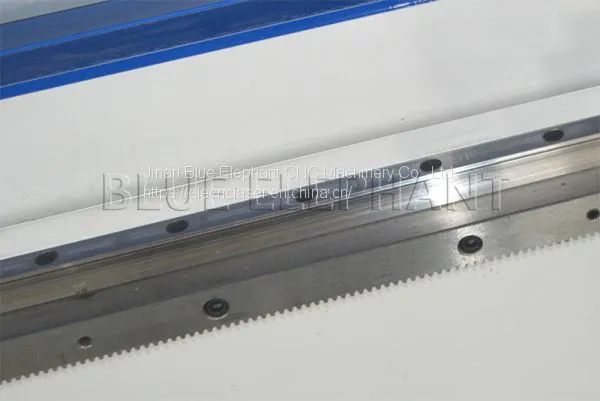

- Helical rack
- Taiwan TBI ball screw
- Sweden ABBA square linear guide way for 20#
- Artcam,Type3 software(one of them)

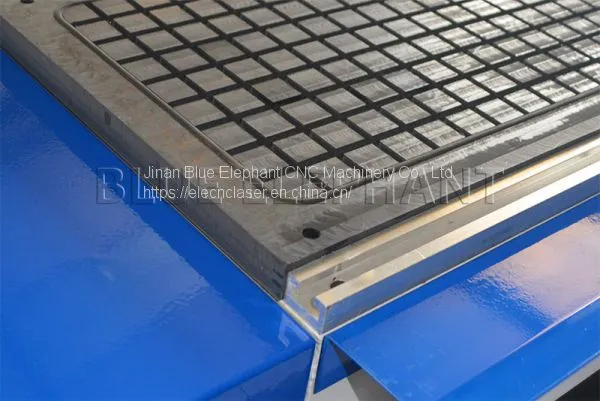

- Vacuum & T-slot working table
- Japan Omron limit switch
Working voltage: 380v 3phase 50HZ
Parameters:
Description Parameter X,Y,Z Working Area 2200*4000*200mm X,Y,Z Traveling Positioning Accuracy ±0.03/300mm Table Surface Vacuum & T-slot Working Table X, Y Structure Helical Rack gear, Sweden ABBA Linear Square Rail 20# Z Structure Taiwan TBI Ball Screw, Sweden ABBA Linear Square Rail 20# Spindle Power 5.5KW Changsheng water cooling spindle Spindle Speed 0-24000RPM Drive Motors FL118 stepper motor and YAKO 2608 driver Inverter 5.5kw Fuling Inverter Lubrication system Manual lubrication system Working Voltage AC380V/50Hz,3PH (Option: 220V) Operating System DSP A11 Control System (Options: Ncstudio /Mach3 Software) Control box Single-sided indenpended control box Pump water circulation vacuum pump (380V, 3Ph, 50Hz) Optional Japan Omron limit switch PS:All the working area and specifications can be customized according to your requests
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
