Quilting Machine

Specifications

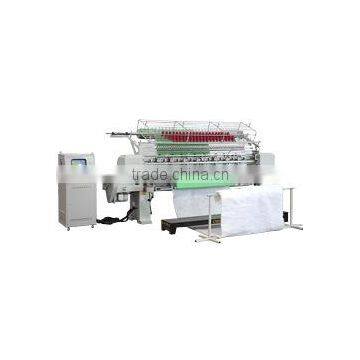

CSDB94"-3 digital control quilting machine

1. D: Digital control model; B: Big shuttle (HQ10)
2. 94": 94inch width (2388mm)
3. 3: Three needle row
4. Overall dimentions: 4700*1200*1650mm
5: Weight: 3400kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 3.5kw
9. Thickness: ≤30mm
10. Max pattern size is 12inch by 12inch
11. The shuttle size is HQ10 (japanese)

*This quilting machine Adopting digital control program.

*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice.

*Easy and quick make new designs.

*360 degrees quilting

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread(optional)

*Infrared sensors to guarantee the safety of the operator

NOTE:Machines of non-standard specifications can also be nanufactured by order of customers with specific requirements.
