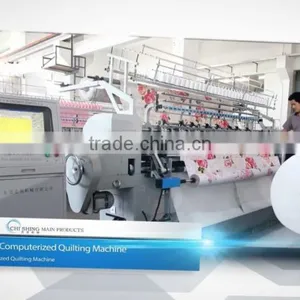

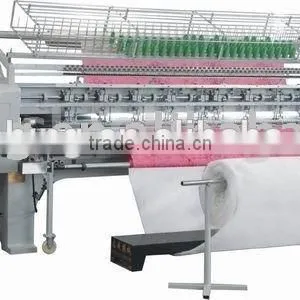

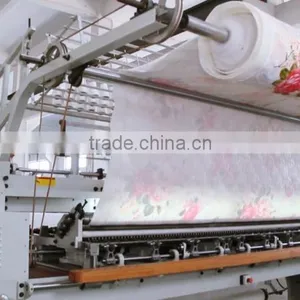

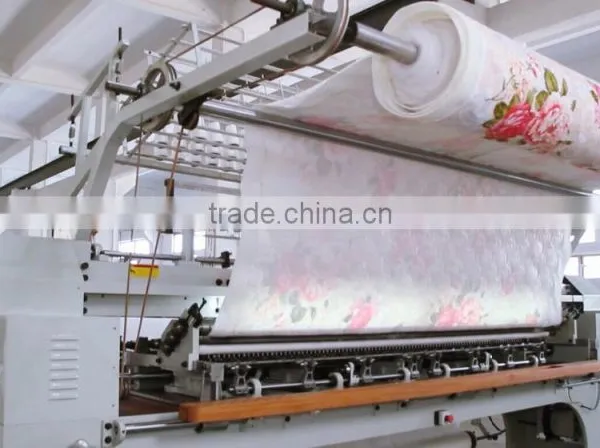

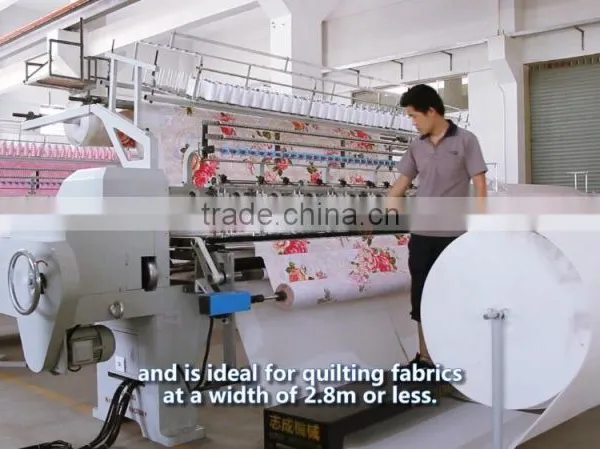

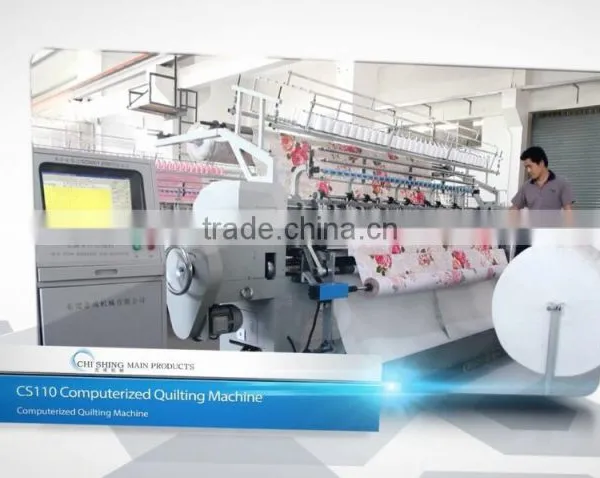

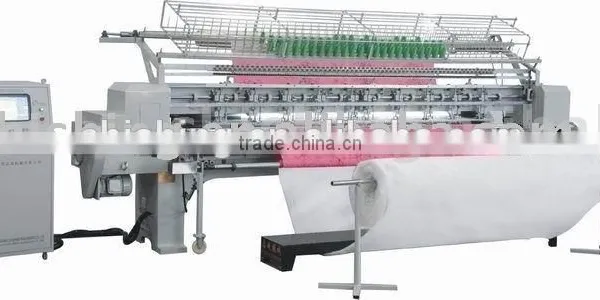

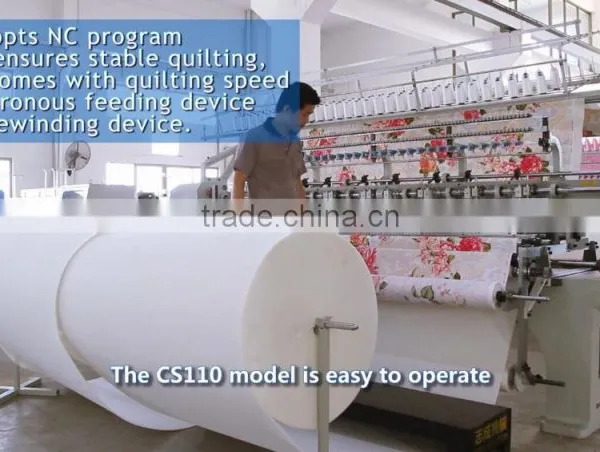

CSDS110"-2 digital control quilting machine
1. D: Digital control; S: Small shuttle (HQ7 Japaneseshuttle )
2.110": 110inch width (2794mm)
3.2: Two needle row

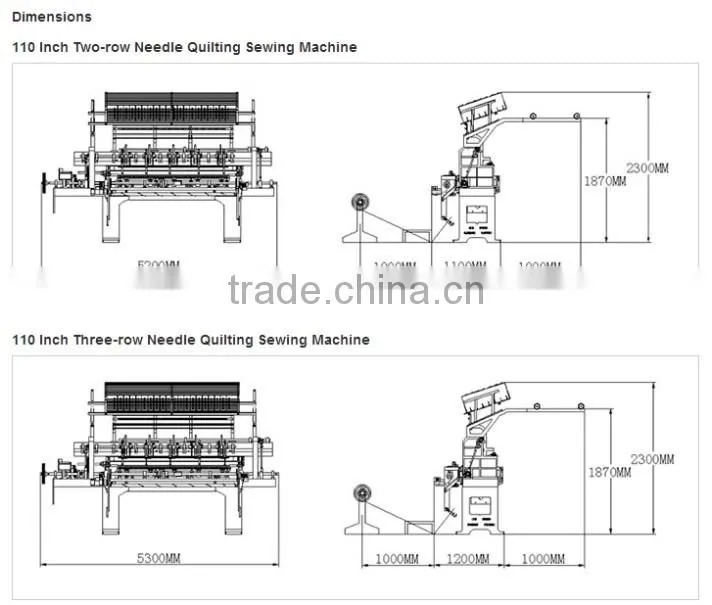

4. Overall dimentions: 5200*1100*1600mm
5: Weight: 3500kg
6: Running speed: 200-500r/m.
7: Needle distance: 25.4mm.
8. Rating power: 6.2kw.
9. Thickness: ≤30mm.
10. Max. Pattern size: 6inch by 6inch .
Functions & Features:
*This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by panasonic frequency conversion control devices.
*Large number of built-in quilting patterns for your choice.
*Easy and quick make new designs.
*360 degrees quilting .
*Tack and jump function included.
*stitches between 2mm-6mm adjustable.
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising and location brake system.
*Function of automatic stop on breaking of thread(optional)
*Infrared sensors to guarantee the safety of the operator.

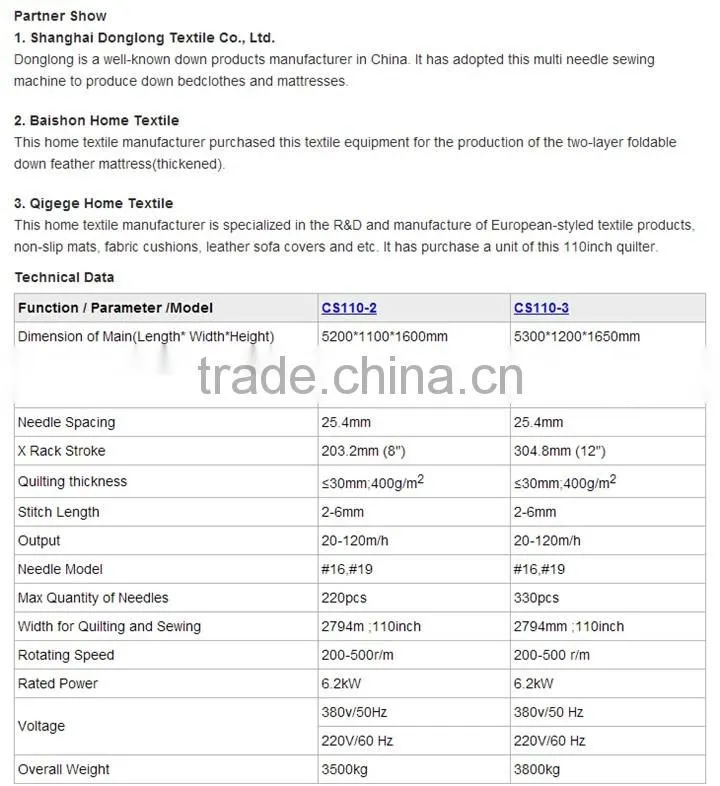

| DIGITAL CONTROL SHUTTLE MULTI-NEEDLE QUILTING MACHINE PARAMETER | ||||||||||||
| FUNCTION | Max.needles | Quilting | RUNNING | NEEDLE | RATING | NEEDLE | QUILTING | |||||
| SPEC | OVERALL L*W*H | OVERALL WEIGHT | quantity | STROKE | width | RATE | DISTANCE | POWER | VOLTAGE | MODEL | THICKNESS | |
| CS110INCH 2NEEDLE ROW | 5200*1100*1600 | 3500KG | 220 | 203.2 | 2794 | 200-500R/M | 25.4 | 6.2 | 380 | 16/19 | ≤30mm ≤400g/m2 |
|
