Specifications
quilting machine:The 94inch width quilting machine is the ideal choice to make the quilts ,garments,comforters etc.

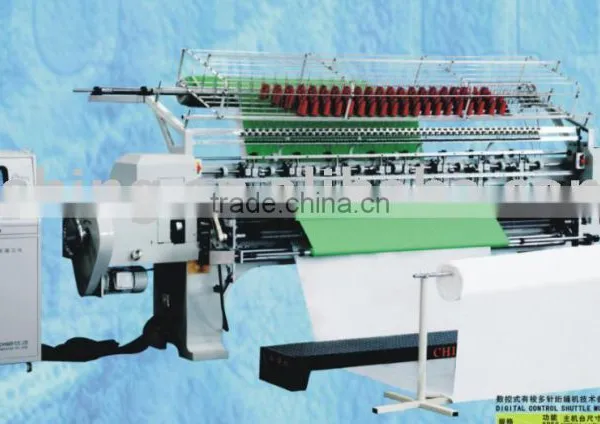

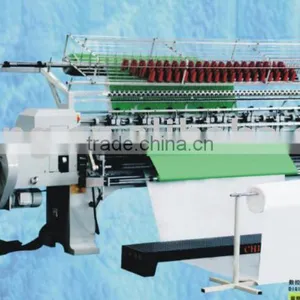

CSDB94"-2 digital control quilting machine
1. D: Digital control model; B: Big shuttle (HQ10)
2.94": 94inch width (2388mm)
3.2: Two needle row
4. Overall dimentions: 4600*1100*1650
5: Weight: 3200kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 3.5kw
9. Thickness and pattern size:
4-5cm foam (density 1-26) quilting effect is good(180-360degrees pattern )Pattern size :2inch to 6inch
3cm-1cm foam (density 1-26 )quilting effect good (180-360degrees)
Pattern size :1inch to 6inch
*This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by panasonic frequency conversion control devices.
*Large number of built-in quilting patterns for your choice.
*Easy and quick make new designs.
*360 degrees quilting .
*Tack and jump function included .
*stitches between 2mm-6mm adjustable.
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising and location brake system.
*Function of automatic stop on breaking of thread(optional)
*Infrared sensors to guarantee the safety of the operator
brake system.
*Function of automatic stop on breaking of thread(optional).
*Infrared sensors to guarantee the safety of the operator.
