Textile Bedding Cover Machinery

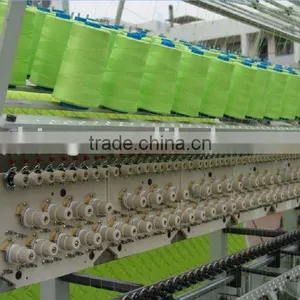

Textile Bedding Cover Machinery photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chishing
Model Number:
CS64
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name chishing
Model Number CS64

Specifications

Imported materials , high accuracy and long life
infare protection and high security

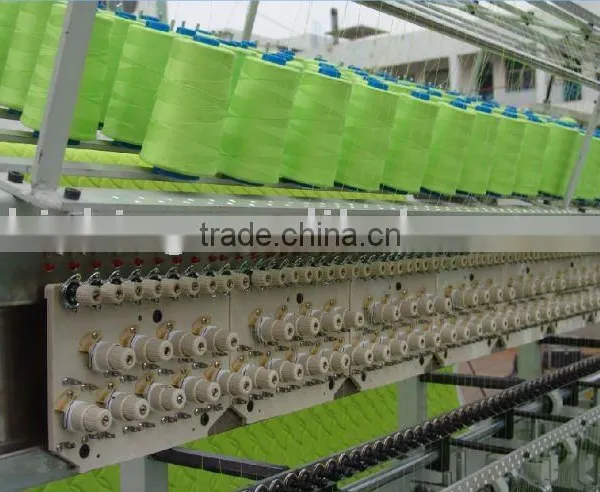

>The multi needle quilting machine Adopting digital control program.
>Saddles and rollers driven by Panasonic servo devices.
>The revolution of the spindle controlled by Panasonic frequency conversion control devices.
>360 degrees quilting, Machine come with 300 quilting patterns for your choice

>Easy pattern drawing system enable you finish the pattern design in a few minutes.

>Tack and jump function included
>stitches length 2mm-6mm adjustable.

>Pattern compensation

>Adjustable pressing plate lifting mechanism enables you quilt a broad range of material thickness.
>Simulation display of quilting.

>Thread break detectors.

>Automatic needle raising and location brake system.

>Error problem detection system.

> Emergency sensors safety device

>Improved quilting software control system allows more precise and stable quilting operations.

>Improved fabric loading system :The fabric-loading motor provides tension control and ensure the quilting effect .



TECHNICAL DATA

   Max.needles QuiltingRUNNING NEEDLERATING  NEEDLE QUILTING
SPECIFICIATIONSize ( L*W*H) WEIGHTquantitySTROKEwidthRATEDISTANCEPOWERVOLTAGEMODELTHICKNESS
CS64INCH 2NEEDLE ROW3600*1100*1650mm2300KG128pcs203.2mm1626mm200-500R/M25.4mm3.5kw380V16/19≤30mm
≤400g/m2
CS64INCH 3NEEDLE ROW3800*1200*1650mm2600KG192pcs304.8mm1626mm200-500R/M25.4mm3.5kw380V16/19≤30mm
≤400g/m2
