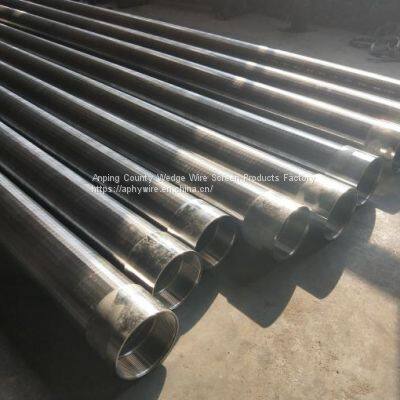

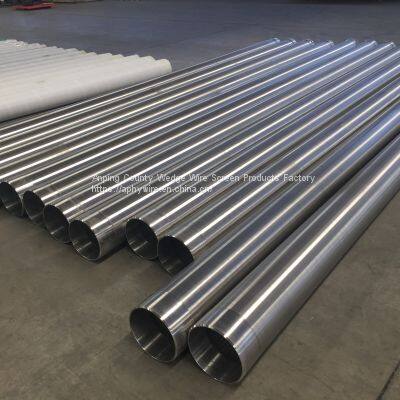

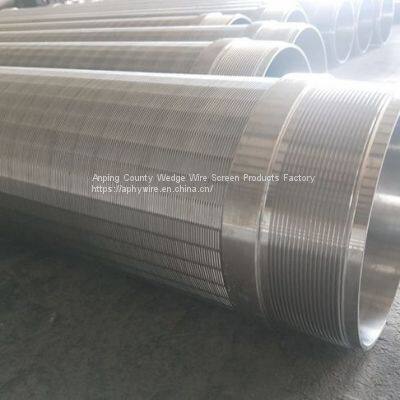

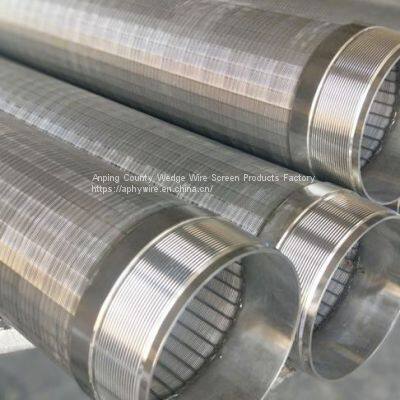

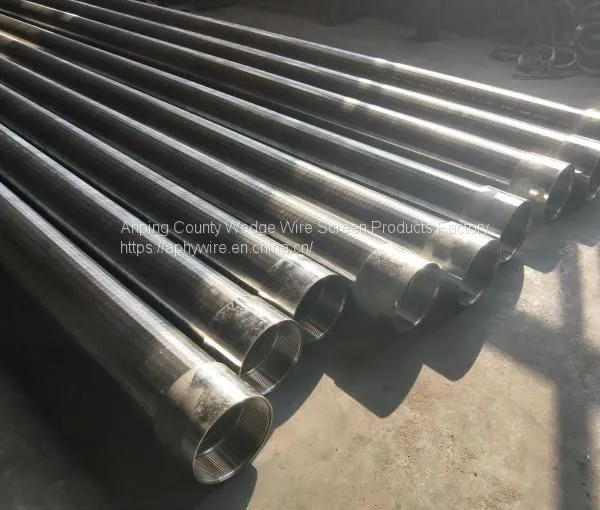

Help CenterWATER WELL SPIRAL SCREEN TUBE, No Magnetic Wedge Wire 10
Related Products
-
Perfect Round Water Well Screen Pipe, Wedge Wire Johnson Filter TubeUS$ 30 - 85MOQ: 30 Meters -
Stainless Steel Water Well Screen , Dewatering Well Screen PipeUS$ 80 - 180MOQ: 30 Pieces
-
Pure Round Wedge Wire Filter ElementUS$ 52 - 150MOQ: 30 Meters
-
Perfect Round Wedge Wire Johnson Water Well Screen PipeUS$ 30 - 100MOQ: 10 Pieces
-
Wedge Wire Reverse Rolled ScreenUS$ 60 - 360MOQ: 10 Pieces

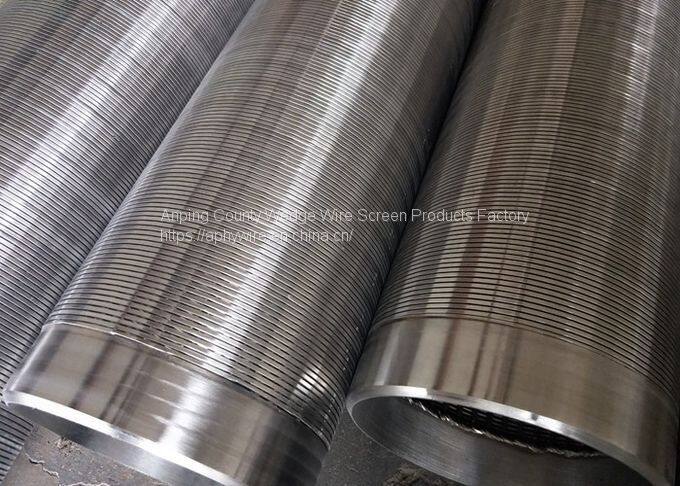

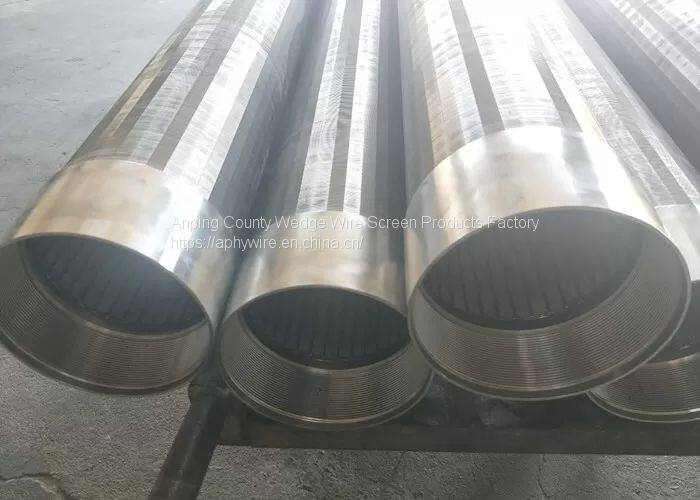

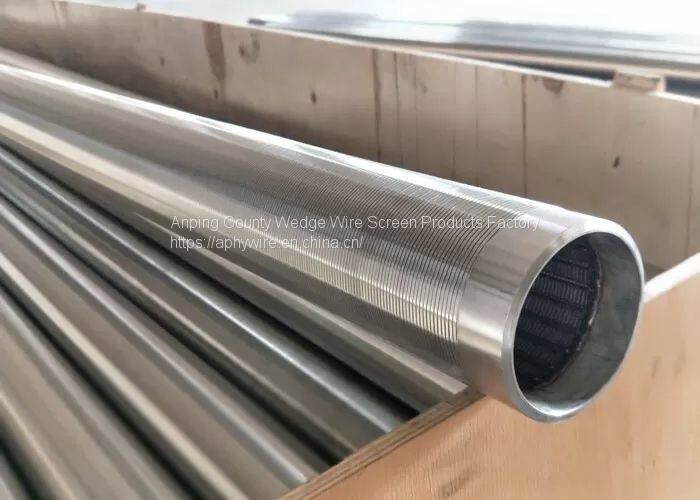

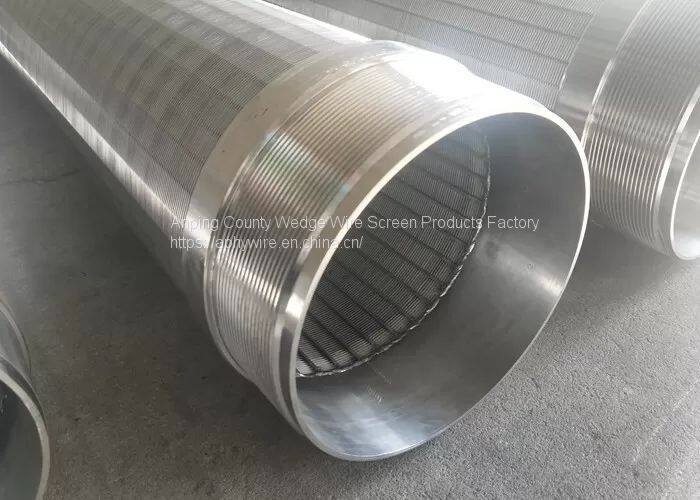

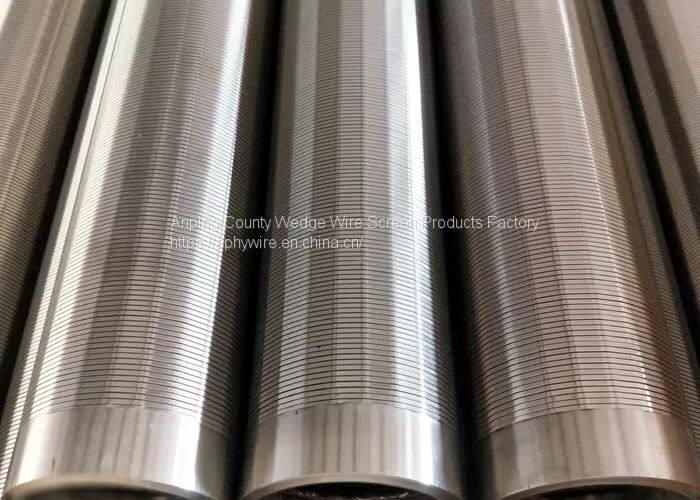

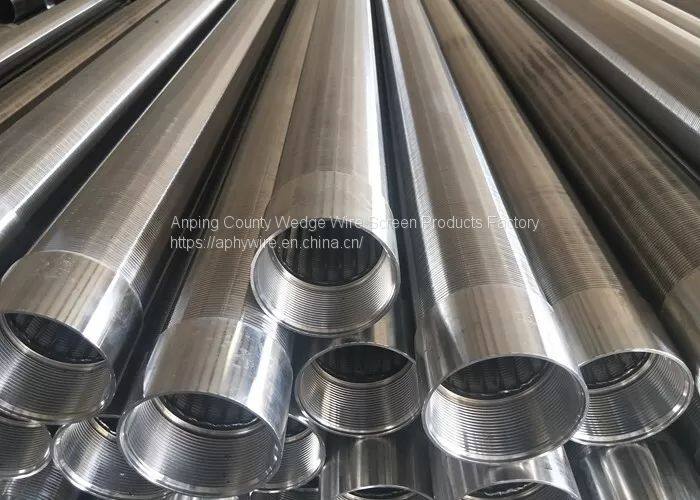

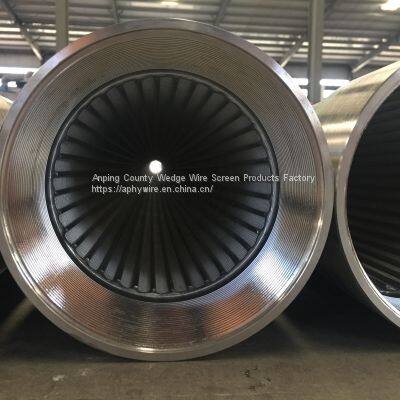

Water well screen
Advantages of using Profile Wire Water Well Screens :
When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
Wedge Wire Screen Pipe Specifications:
SIZE
(INCH)
O.D
(MM)
SLOT
(MM)
LENGTH
(M)
COLLAPSE
STRENGTH
(BAR)
TENSILE
WEIGHT
(TON)
WRAP WIRE(WIDTH*HEIGHT)
(MM)
RODS
(MM)
3-1/2
88.9
1.0
3
＞22
10.2
2.3*3.5
3.8MM/22
4-1/2
114.3
1.0
3
＞28
11.5
2.3*3.5
3.8MM/22
6-5/8
168.3
0.75
5.8
＞40
12.8
2.3*3.5
3.8MM/32
6-5/8
168.3
1.0
5.8
＞33
12.8
2.3*3.5
3.8MM/32
6-5/8
168.3
0.63
5.8
＞83
45
3.2*6.0
6.0MM*32
8-5/8
219.1
1.0
5.8
＞34
21.9
2.3*3.5
3.8MM/48
8-5/8
219.1
1.0
5.8
＞50
38.2
3.0*5.0
4.0MM/48
8-5/8
219.1
1.0
5.8
＞60
46
3.2*6.0
5.0MM/48
10-3/4
273.1
0.75
5.8
＞50
32.9
2.3*3.5
4.9MM/55
10-3/4
273.1
1.0
5.8
＞60
39.5
3.0*5.0
4.9MM/55
10-3/4
273.1
1.0
5.8
＞100
48
3.2*6.0
5.0MM/55
12-3/4
323.9
1.0
5.8
＞120
37.2
3.0*5.0
4.0MM/50
14
355.6
1.0
3
＞80
37.8
3.0*5.0
4.0MM/59
