Help Center2-7/8" Wire-Wrapped Continuous Slot Johnson Well Screen for Sand Control
Product Spotlights
Related Products
-
Low Carbon Galvanized Wedge Wire Water FilterUS$ 10 - 100MOQ: 30 Meters -
Grovel Pack Screens / Johnson Type Wedge Wire Water Well ScreenUS$ 29.9 - 299.9MOQ: 30 Pieces
-
Stainless Steel Water Well Wedge Wire Screen/ Wedge Wire Screen for Well DrillingUS$ 9.9 - 49.99MOQ: 30 Meters
-
Stainless Steel No Magnetic Wedge Wire Water Well ScreenUS$ 30 - 450MOQ: 30 Pieces
-
Spiral Screen PipeUS$ 30 - 300MOQ: 30 Sets
Energy Saving Well Point Water Wire Screen Pipe For Architecture / Construction
Description:

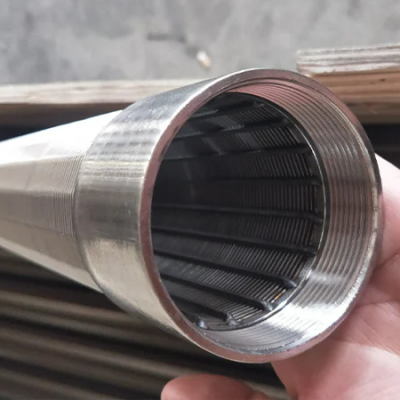

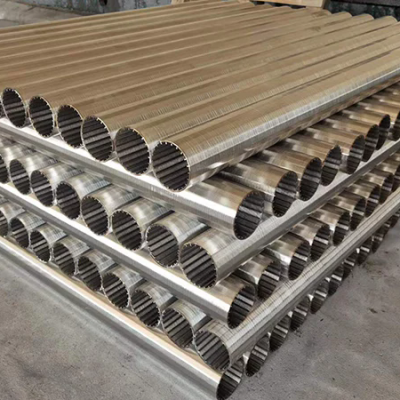

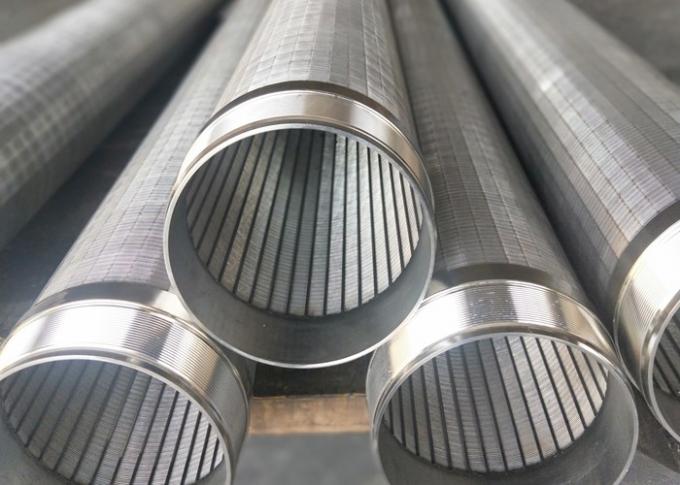

Water well screen, also known as Johnson screen, it is made up of V-shape profile wire and the longitudinal round support rods. And be widely used in water conservancy, petroleum, geothermy, chemical, food and decoration industries.
Features:
1. The continuous slot opening greatly increases the available open area, thus better to face the aquifer;
2.The“V”shaped profile avoids clogging effectively to ensure smooth circulation;
3. The continuous slot promises a long and effective usage;
4. Solid structure, high porosity, aperture size precision;
5. Long service life, safe and reliable, low comprehensive cost, meanwhile, it is easy to backwash;
6. Material: Stainless steel (acid and alkali resistance, anti-aging, long service life, and ide applicability).
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Special specification can be made according to your need!
Application of First choice of industrial Water Well Screen
1. Water well smining & Mineral Processing
2. Municipal water supply, refining & petrochemical
3. Water treatment
4. Architecture and construction, etc.
