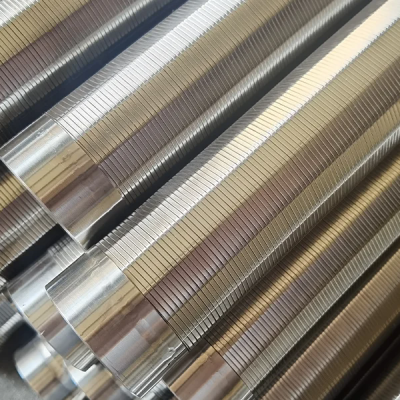

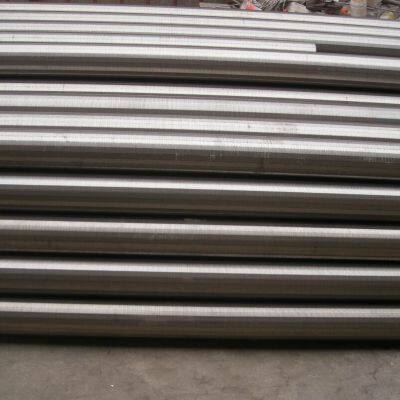

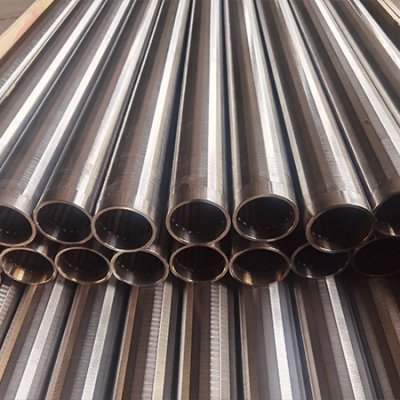

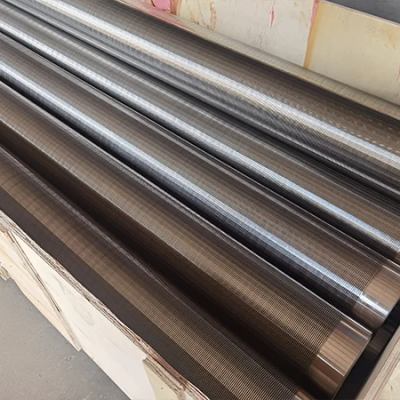

Wire Wrapped Screen Pipe – Slotted Liners
The wire wrapped screen pipe primarily consists of a wedge wire jacket combined with a perforated base pipe or support bars. Both the jacket and the support pipe/bars are crafted from high-quality SS 304 or 316L stainless steel. This screen can be used independently for completions in well-sorted formations or paired with a gravel pack for enhanced sand control and improved productivity.
Advantages
Precise Slot Openings. Ensure optimal fluid flow.
High strength and superior corrosion resistance. suitable for various harsh environments.
Key-shaped wire design. provides maximum resistance to corrosion and strength.
More circular ribs. ensure ultra-high strength and durability, extending service life.
Larger inflow area. maximizes production capacity compared to slotted liners.
Provides all API and ANSI pipe sizes. meets diverse needs.
Applications
Oil and gas industry
Well screen pipe: used for well completion in oil and gas wells, preventing sand particles from entering the wellbore.
Water injection well: used to enhance oil and gas recovery rates.
Water resource management
Groundwater extraction: used in wells to ensure efficient extraction of water sources.
Irrigation system: used in agriculture for the filtration and distribution of irrigation water.
Mining
Ore screening: used in mines for screening and filtering ores, separating impurities.
Tailings recovery: used for the recovery and treatment of tailings.
Construction and civil engineering
Underground drainage system: used for drainage around buildings to prevent water flooding.
Foundation engineering: used in foundation construction to enhance soil stability.
Contact Person: Star Lee 86-0-13315867171
MSN: feiyatrade@hotmail.com
E-mail: starlee@feiyaguoji.com
V wire Strainer pipe Spiral screen tube
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 0.5 Mm | Diameter: | 8 " |
| Length: | 5800mm | End Connection: | Welded Rings |
| Package: | Woden Box,Container | ||
| High Light: | water well sand screen, slotted screen pipe | ||
Jonson Vee Screen Thread Couplings To Oil Well Stainless Steel 8 " OD 219
Product Description:

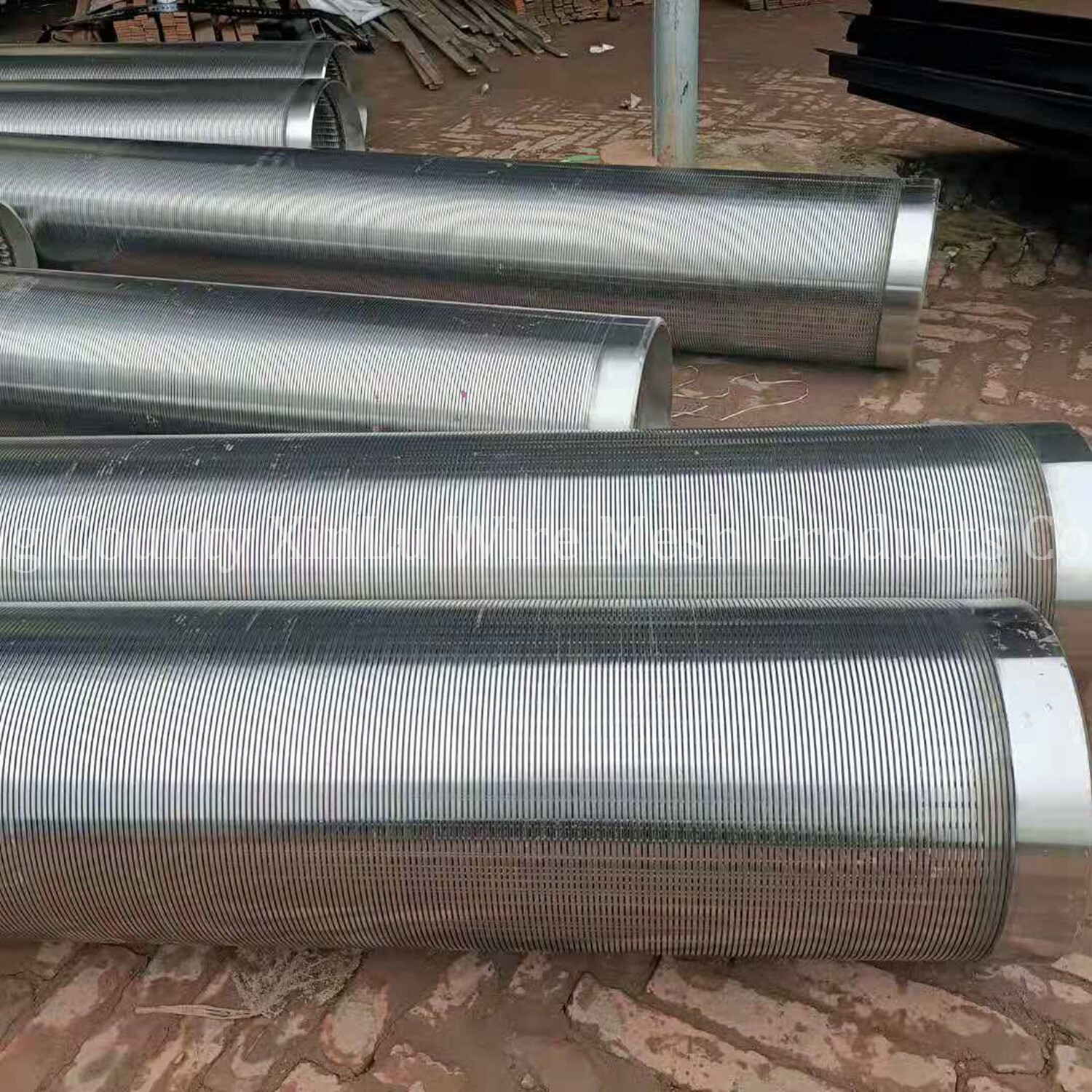

Wire Wrap Wound Johnson Stainless Steel Well Screens For Filter Equipment is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Specification:
| Material | Stainless steel |
| Grade | 304 |
| O.D | 600mm |
| Size | 600mm |
| Slot size | 1.0mm |
| Length | 1500 m |
| End connection | None |
| Wire size | 93 # |
| Support rod | 118 # |
| Wire shape | V shape |
Characteristic:
Continuous uninterrupted gap, smooth flow
The gap is v-shaped, the outside is small, the inside is large, and it is not easy to block.
The length can be customized according to customer requirements, one-piece molding
Solder joints are welded by electric resistance, and the solder joints are firm and not easy to fall off.
wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are guaranteed.
the profile can be made of different shapes like, wedge shaped, round, bar shaped, and can accompany with the wrap wire according to different application.
OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Application:
Water industry
Food industry
Environmental protection

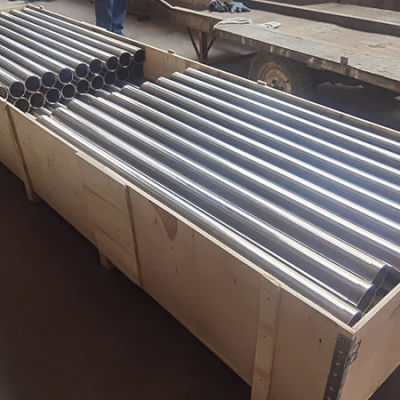

Package:
