Corrosion-Resistant Johnson Wedge Wire Screen Tube for Deep Water Wells
Wedge wire screen tube is a high-efficiency filter tube product made from wedge-shaped wire, widely used in water treatment, petrochemical, and food processing industries, providing precise filtration and separation effects. Its structure is designed with stainless steel wedge wire, featuring precise gaps that are not easily clogged, providing high strength and corrosion resistance, making it suitable for long-term use in harsh environments. The high open area ratio design increases the flow area, ensuring smooth fluid passage and improving filtration efficiency. Additionally, the wedge shape has self-cleaning properties, making it difficult for impurities to embed in the gaps, thus reducing maintenance frequency.
Specifications
Material: stainless steel 304, 304L, 316, 316L, 321, etc.
Tube diameter: 25 mm - 1500 mm.
Tube length: 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized.
Slot size: 0.05 mm - 2.5 mm.
Surface profile type: triangle wire.
Support profile: triangle wire, round wire, flat bar or wedge wire.

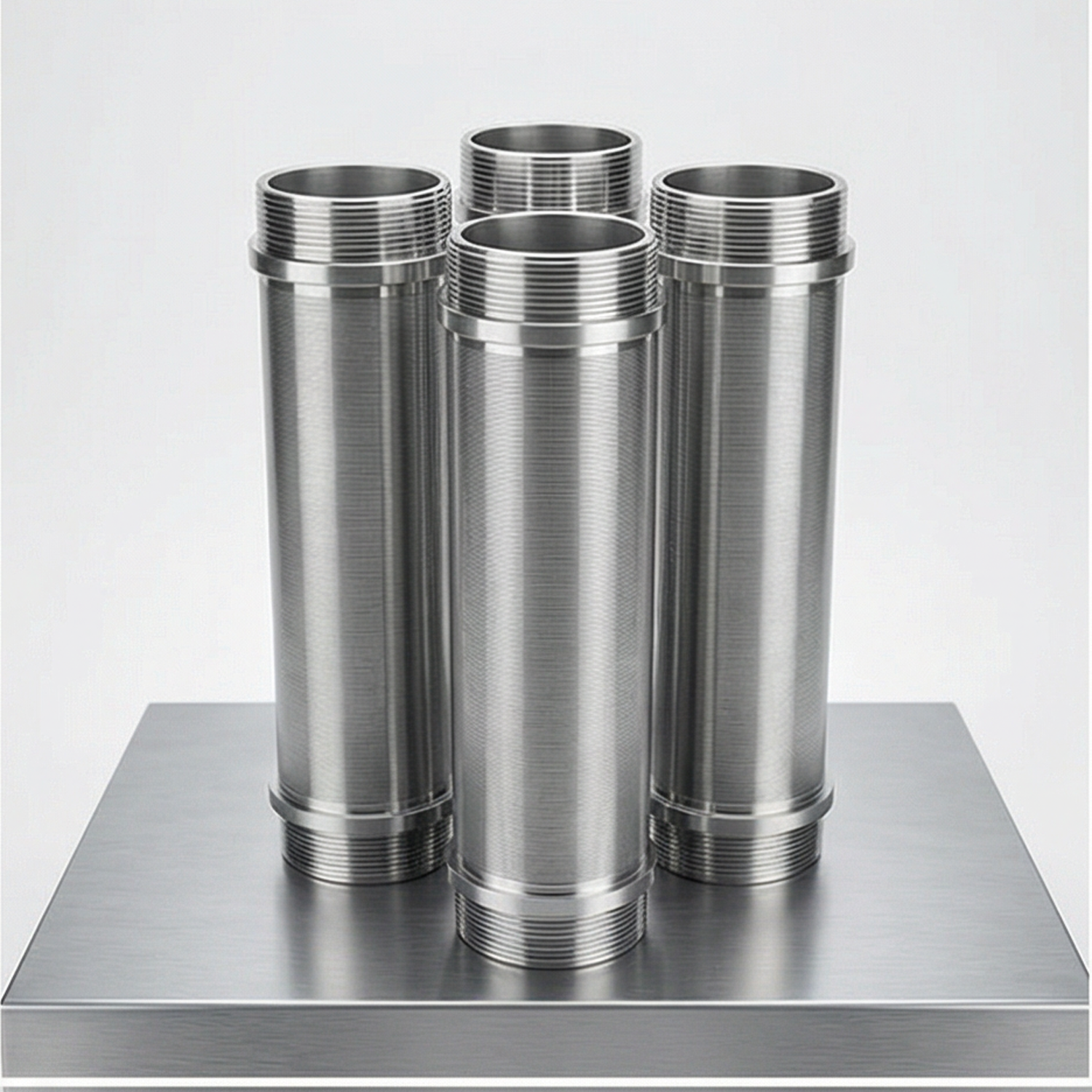

End Types: Common type, Ring type, Threaded type, Flange type
| Item Code | Screen (O.D.) |
Support Rod (mm) |
Support Rod No. | Screen V-Wires (mm) |
|---|---|---|---|---|
| XLSG-1 | 19 | 2 × 3 | 8 | 0.75 × 1.5/ 1 × 2 |
| XLSG-2 | 25.4 | 2 × 3 | 8 | 0.75 × 1.5/ 1 × 2 |
| XLSG-3 | 30 | 2 × 3 | 8 | 0.75 × 1.5/ 1 × 2 |
| XLSG-4 | 32 | 2 × 3 | 8 | 0.75 × 1.5/ 1 × 2 |
| XLSG-5 | 33.5 | 2 × 3 | 8 | 0.75 × 1.5/ 1 × 2 |
| XLSG-6 | 36 | 2 × 3 | 10 | 0.75 × 1.5/ 1 × 2 |
| XLSG-7 | 40 | 2 × 3 | 10 | 1 × 2/ 1.5 × 2.5 |
| XLSG-8 | 42 | 2 × 3 | 10 | 1 × 2/ 1.5 × 2.5 |
| XLSG-9 | 45 | 2 × 3 | 10 | 1 × 2/ 1.5 × 2.5 |
| XLSG-10 | 48 | 2 × 3 | 10 | 1 × 2/ 1.5 × 2.5 |
| XLSG-11 | 50 | 2 × 3 | 12 | 1 × 2/ 1.5 × 2.5 |
| XLSG-12 | 53 | 2 × 3 | 12 | 1 × 2/ 1.5 × 2.5 |
| XLSG-13 | 57 | 2 × 3 | 12 | 1 × 2/ 1.5 × 2.5 |
| XLSG-14 | 60 | 2 × 3 | 16 | 1 × 2/ 1.5 × 2.5 |
| XLSG-15 | 63 | 2 × 3 | 18 | 1 × 2/ 1.5 × 2.5 |
| XLSG-16 | 68 | 2 × 3 | 20 | 1 × 2/ 1.5 × 2.5 |
| XLSG-17 | 70 | 2 × 3 | 22 | 1 × 2/ 1.5 × 2.5 |
| XLSG-18 | 76 | 2 × 3 | 16 | 1 × 2/ 1.5 × 2.5 |
| XLSG-19 | 80 | 2 × 3 | 20 | 1 × 2/ 1.5 × 2.5 |
| XLSG-20 | 85 | 2 × 3 | 20 | 1 × 2/ 1.5 × 2.5 |
| XLSG-21 | 89 | 2 × 3 | 20 | 1 × 2/ 1.5 × 2.5 |
| XLSG-22 | 95 | 2 × 3 | 28 | 1 × 2/ 1.5 × 2.5 |
| XLSG-23 | 100 | 2 × 3 | 22 | 1 × 2/ 1.5 × 2.5 |
| XLSG-24 | 110 | 2 × 3 | 22 | 1 × 2/ 1.5 × 2.5 |
| 114 | 2 × 3 | 30 | 1 × 2/ 1.5 × 2.5 | |
| XLSG-26 | 120 | 2 × 3/ 3 × 5 | 26 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-27 | 125 | 2 × 3/ 3 × 5 | 34 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-28 | 130 | 2 × 3/ 3 × 5 | 38 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-29 | 140 | 2 × 3/ 3 × 5 | 24 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-30 | 150 | 2 × 3/ 3 × 5 | 44 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-31 | 160 | 2 × 3/ 3 × 5 | 46 | 1 × 2/ 1.5 × 2.5/ 2 × 3 |
| XLSG-32 | 180 | 2 × 3/ 3 × 5 | 50 | 1 × 2/ 1.5 × 2.5/ 2 × 3/ 3 × 5 |
| XLSG-33 | 200 | 2 × 3/ 3 × 5 | 48 | 1 × 2/ 1.5 × 2.5/ 2 × 3/ 3 × 5 |
| XLSG-34 | 250 | 3 × 5/ D5 | 64 | 1 × 2/ 1.5 × 2.5/ 2 × 3/ 3 × 5 |
| XLSG-35 | 300 | 3 × 5/ D5 | 20/30 mm | 1 × 2/ 1.5 × 2.5/ 2 × 3/ 3 × 5 |
| XLSG-36 | 350 | 3 × 5/ D5 | 20/30 mm | 1.5 × 2.5/ 2 × 4/ 2 × 3/ 3 × 5 |
| XLSG-37 | 500 | 3 × 5/ D5 | 20/30 mm | 1.5 × 2.5/ 2 × 4/ 2 × 3/ 3 × 5 |
| XLSG-38 | 600 | 3 × 5/ D5 | 20/30 mm | 1.5 × 2.5/ 2 × 4/ 2 × 3/ 3 × 5 |
| XLSG-39 | 1000 | 3 × 5/ 5 × 6/ 3 × 12 | 20/30 mm | 1.5 × 2.5/ 2 × 4/ 2 × 3/ 3 × 5 |
| XLSG-40 | 1260 | 3 × 5/ 5 × 6/ 3 × 12 | 20/30 mm | 1.5 × 2.5/ 2 × 4/ 2 × 3/ 3 × 5 |
Advantage
V-shaped wire design prevents clogging, ensuring continuous flow.
No moving parts, making installation simple and maintenance minimal.
Low maintenance costs, offering long-term reliability.
Cost-effective and versatile, with an extended service life.
High precision in sizing, ensuring consistent performance.
Strong mechanical properties combined with lightweight construction.
Superior filtration performance, optimizing efficiency.
Maximizes flow rates while minimizing the risk of blockages.
Resistant to temperature fluctuations, ensuring durability in diverse conditions.
Applications
Energy & Resource Extraction
Oil & Gas
Water Well Production
Mineral & Aggregate Processing
Refining & Petrochemical
Water & Environmental Treatment
Fish Hatcheries & Desalination Plants
Potable & Drinking Water Plants
Water Intake & Water Treatment
Oil-Water Separation
Food & Beverage Industry
Food and Beverage
Sugar Processing & Rotating Pulping
Infrastructure & Safety
Firefighting & Drainage Channels
Gallery

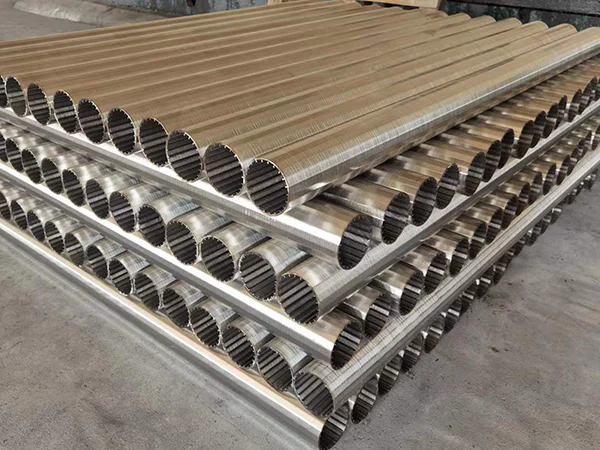

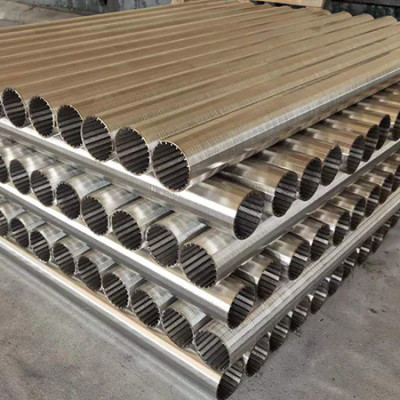

Neatly arranged

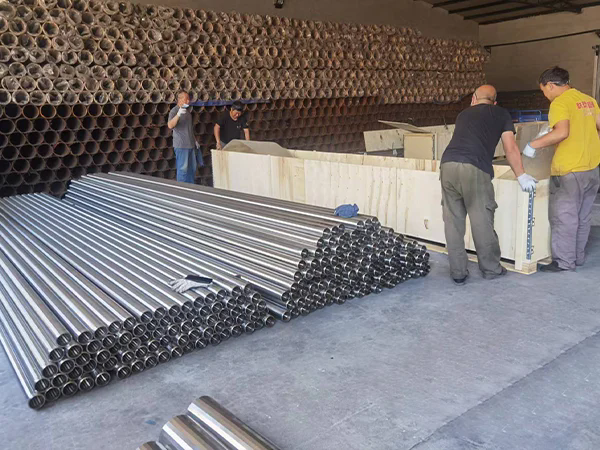

Preparation before packaging

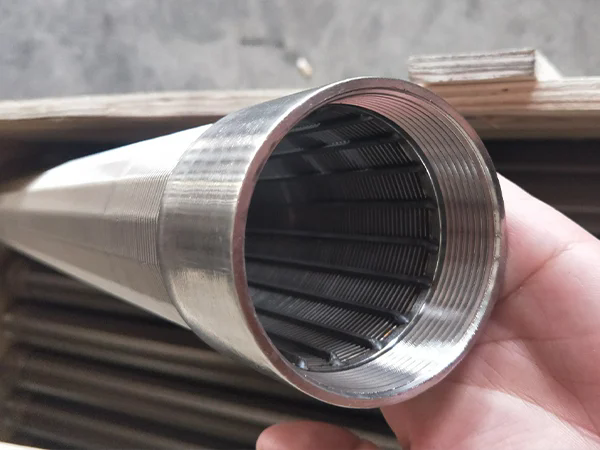

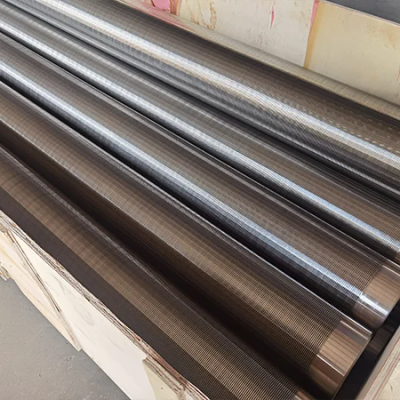

Sample inspection
Water well screen, wedge wire screen, Johnson screen tube, v wire filter element, wire wrapped screen pipe, screen nozzle, water&gas strainer,rod based continuous slot well screen
Advantages of using Profile Wire Water Well Screens :
When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
1. Reduce energy consumption and increase water flow.
2. Reduce erosion of entry surfaces and increase well life.
3. Allow a uniform and efficient well development.
4. Reduce significantly potential pump damage and subsequent maintenance costs.
Jonson Vee Screen Stainless Steel 38 Bar 20 Slot OD 219 8 " Deep Water Well
Product Description:
Jonson Vee wire screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
Specification:
| Material | Stainless steel |
| Grade | 205, 304,304L, 316L |
| O.D | 89mm 117mm 219mm 273mm 325mm |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" |
| Slot size | 0.5 mm,0.63mm, 0.75mm, 1.0mm |
| Length | 2.9m / 5.8 m, 100-6000mm |
| End connection | Welded rings |
| Wire size | 63# 93# 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Characteristic:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Application:
Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells

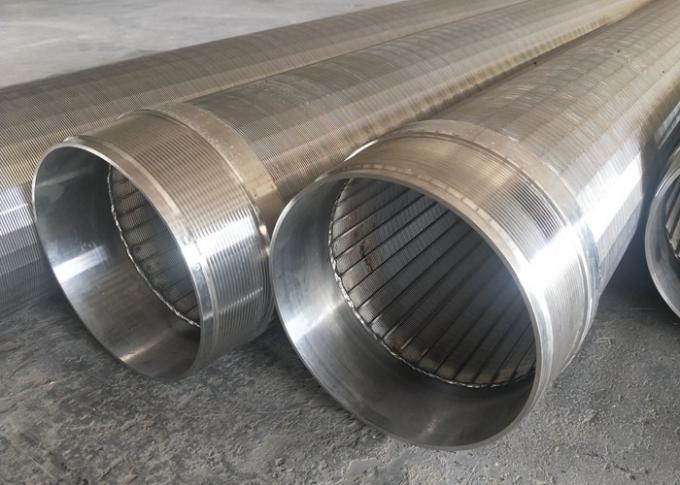

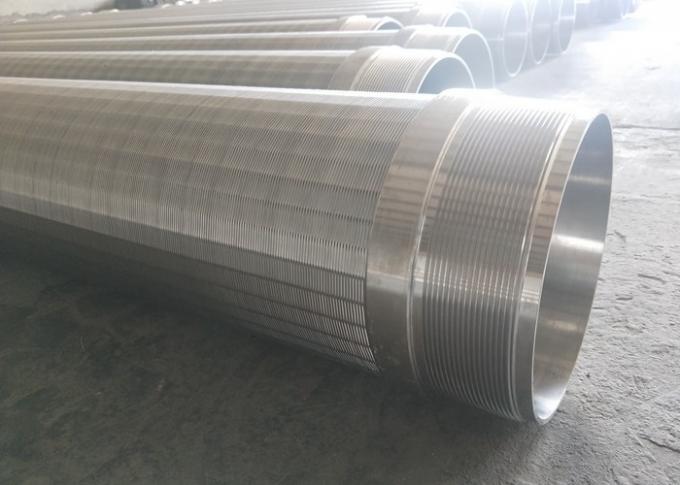

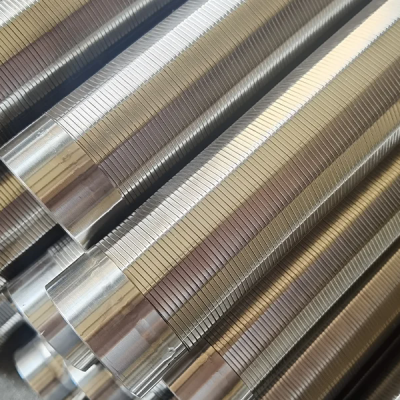

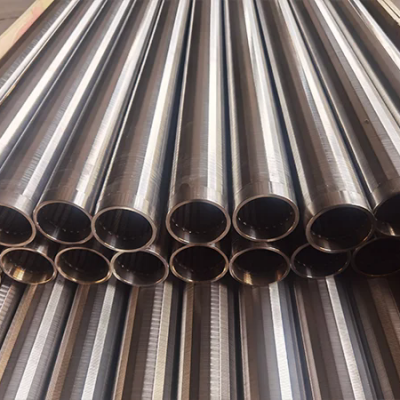

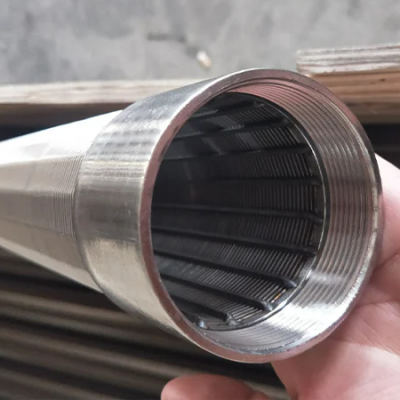

Pictures:
