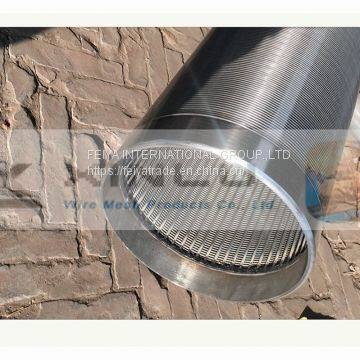

Help CenterStainless Steel Water Well Wedge Wire Screen/ Wedge Wire Screen for Well Drilling
Related Products
-
Stainless Steel No Magnetic Wedge Wire Water Well ScreenUS$ 30 - 450MOQ: 30 Pieces -
Spiral Screen PipeUS$ 30 - 300MOQ: 30 Sets
-
Spiral Screen TubeUS$ 30 - 30MOQ: 30 Sets
-
V Wire Strainer Pipe, Stainless Steel Johnson Vee Wire Screen For Environmental Protection IndustryUS$ 30 - 280MOQ: 20 Pieces
-
Water Well Screen, Johnson V Wire Screen Corrosion Resistant For Large / Small Diameter Deep WellsUS$ 20 - 120MOQ: 20 Sets
wedge wire screen introduction
1. od(outside diameter): usually 6-5/8" 7" 8-5/8" 9-5/8" 10-3/4" 12-3/4"by our customers' requirements.
2. material: carbon steel or stainless steel(201,304,304l,316, 316l and so on)
3. slot size: given by customers. we can do 0.05-2.5mm.
4. open area: a maximum open area of 60% is offered facilitating high flow capacity and low inlet resistance resulting in extended well life.
5. wire and rod dimensions: obtained through well depth, or collapse strength and tensile strength, which are furnished by customers.
6. connection types: usually stc threads or a passage of welded ring (plain end or beveled end), both of them are welded together with the portion of screen.
7. unit length: we suggest 2.9m or 5.8m, to fit the container.
any specific requirements, please write to us.
we have manufactured water well screen pipes for several years and we are famous for our profession. we also can produce bridge slotted screen along with iso9001 standard, welcome all the buyers and distributors cooperate with us home and abroad.
| wedge wire screen specification | |
| material: | aisi304/316/316l,etc. |
| wedge wire (mm): | width : 1.50 1.80 2.30 3.00 3.30 3.70 |
| height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 | |
| support rod (mm): | width : 2.30 3.00 3.30 3.70 |
| height : 2.70 3.60 4.70 5.60 6.30 | |
| round : 2.50mm -- 6.0mm | |
| slot size | 0.10 -- 6.00mm ,also can be customized as your request. |
| length | max 6 meters. |
| out diameter | 25mm -- 1200mm. |
| note: other specifications can be customized according to your requirement. | |
