Woven wedge wire screen,Johnson type water well screen, v wire filter element,wire wrapped screen tube, spiral screen pipe,screen nozzle, water&gas strainer
Water Well Screens offer many advantages including:
A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
| Name: | Continuous Slot Wire Wrapped Screen | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | 304 | Diameter: | 89 Mm |
| Slot Size: | 0.25mm | Length: | 1000mm |
| Wrapped Wire: | 1.5*2mm Vee Wire | Support Rod: | 2*3mm Vee Wire |
| Ends: | Welded Rings | Package: | Wooden Boxes |
| High Light: | Ss304 wire wrapped screen, continuous slot wire wrapped screen, geothermal wells wire wrapped screen | ||

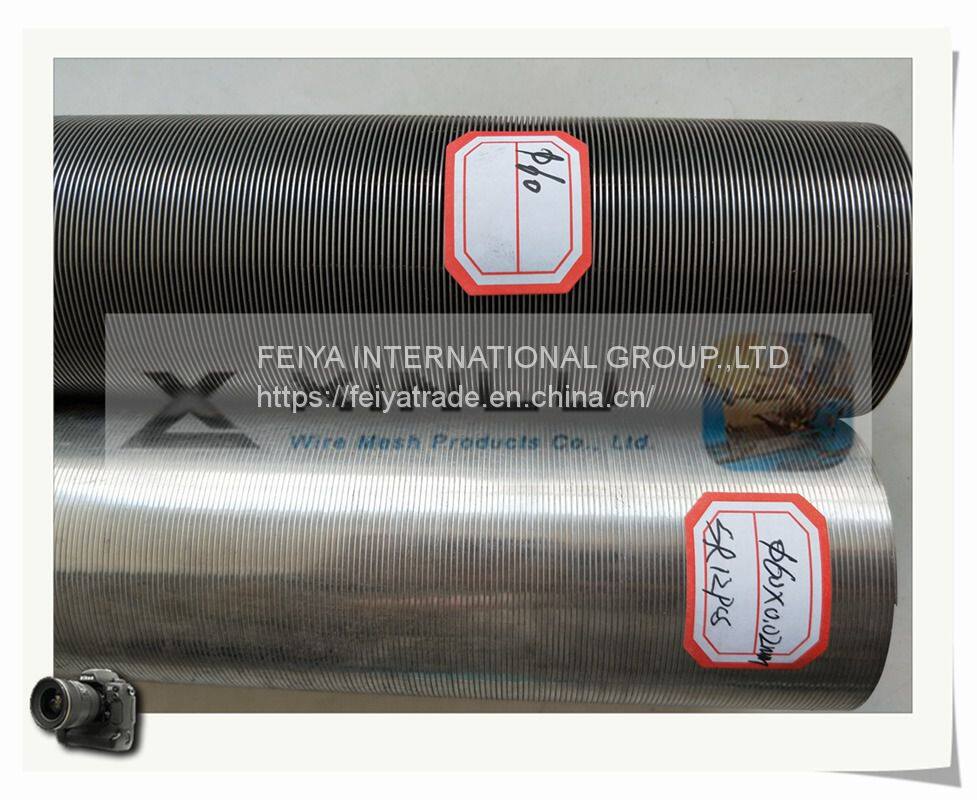

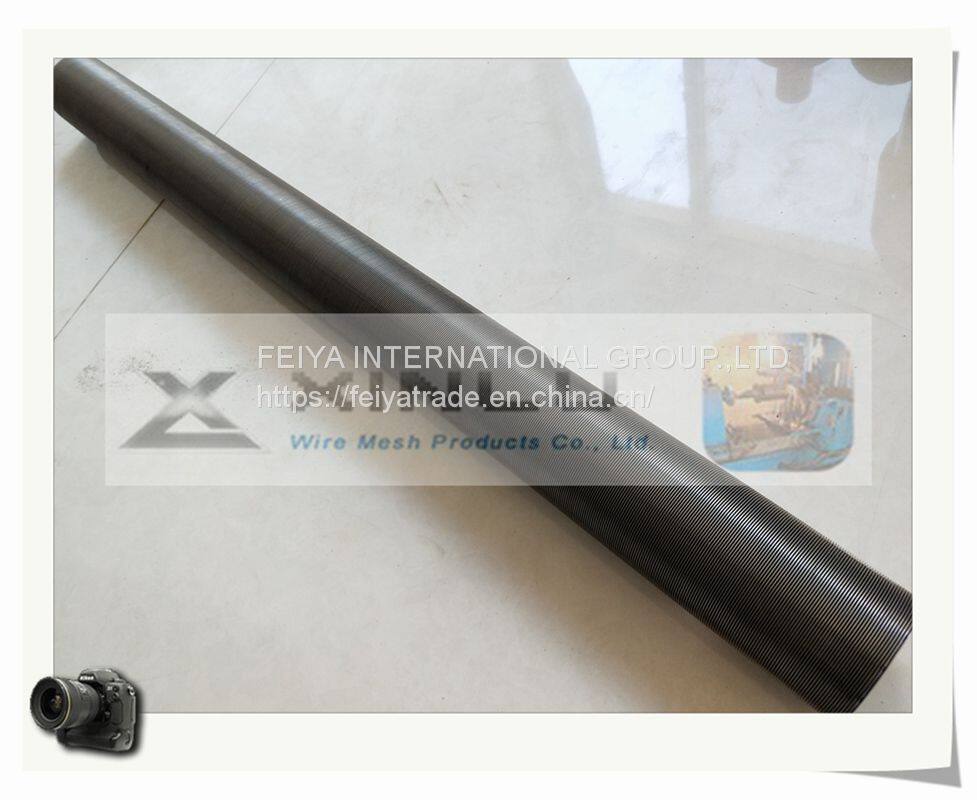

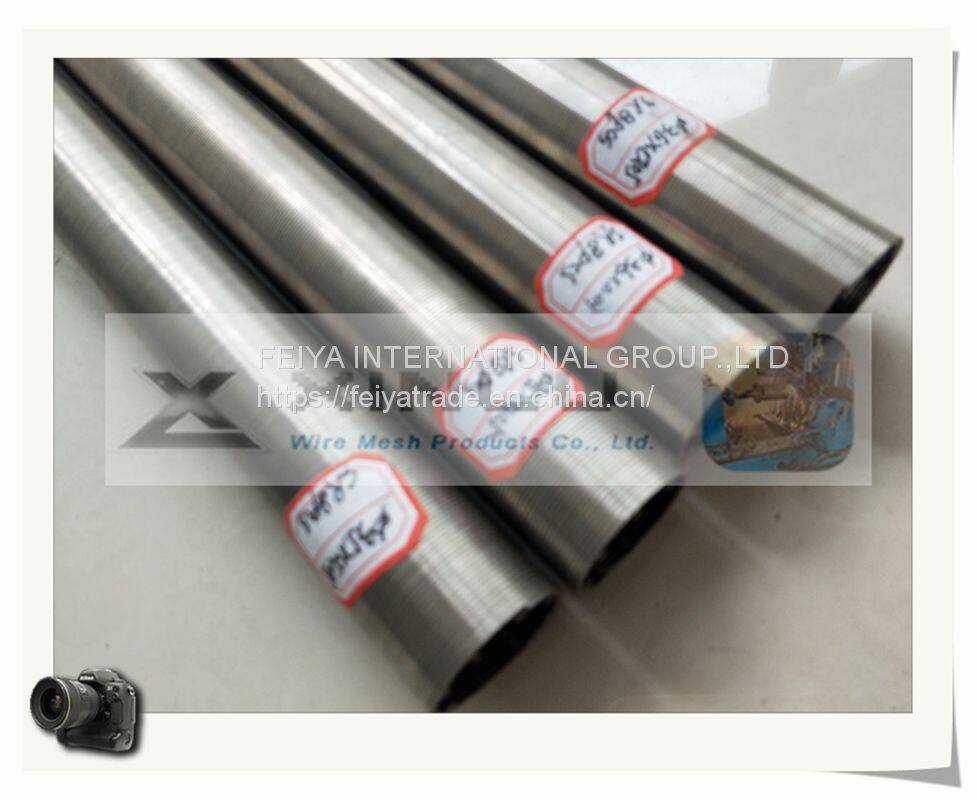

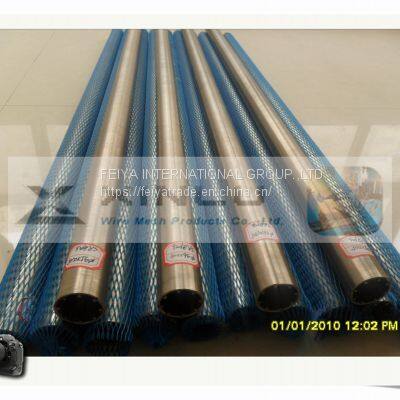

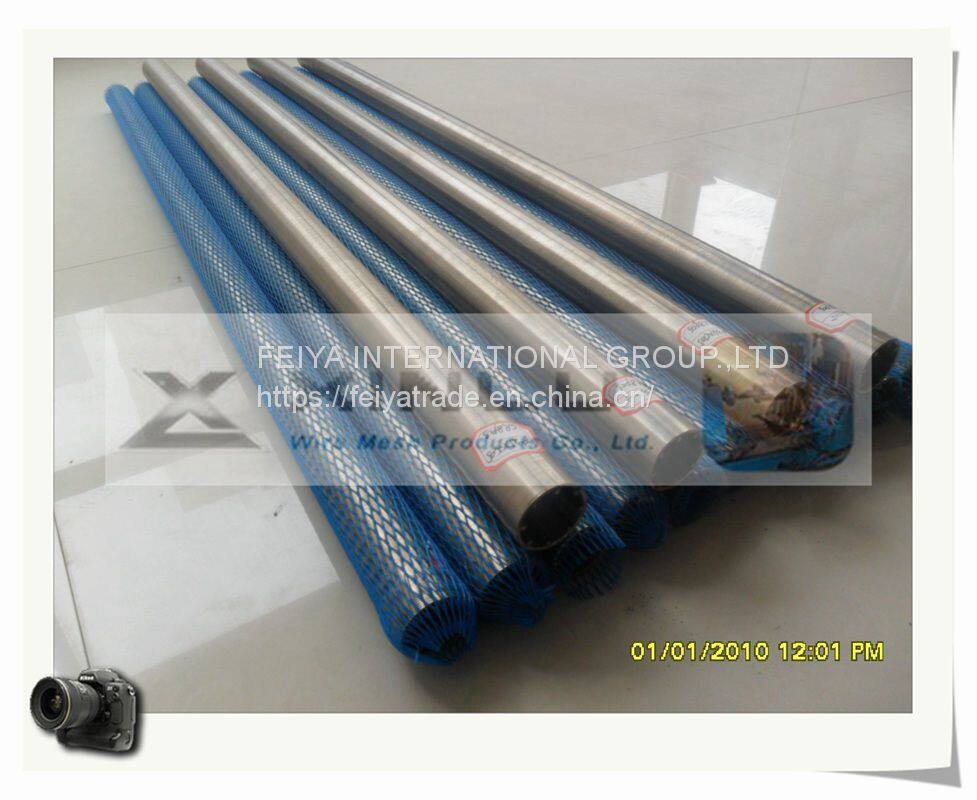

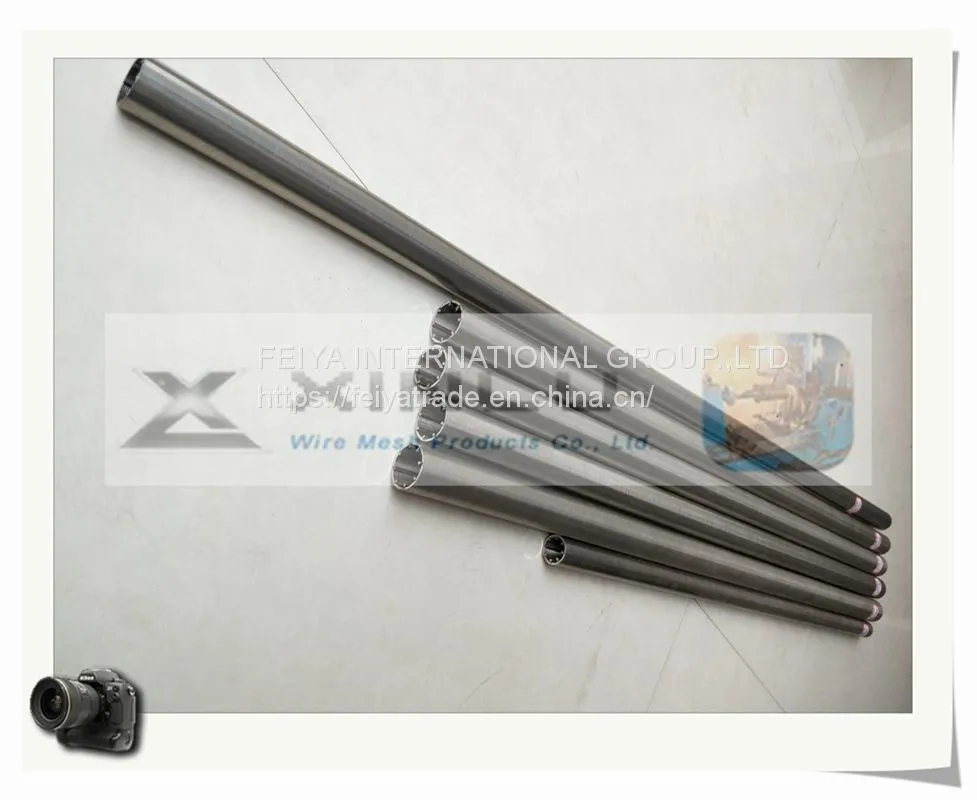

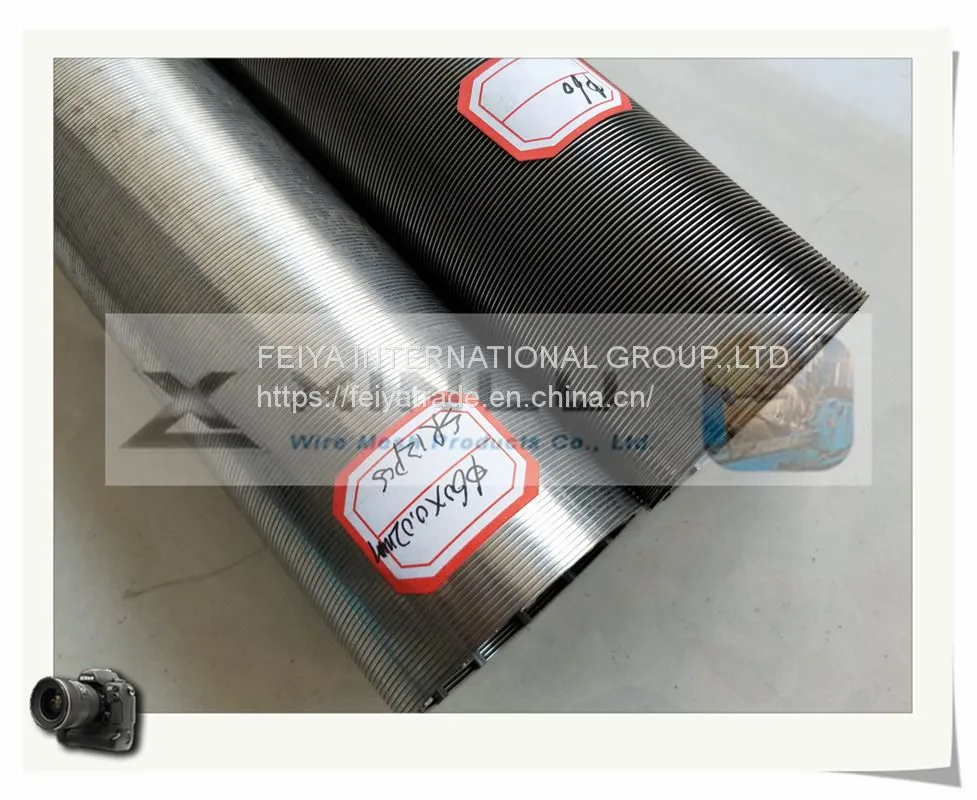

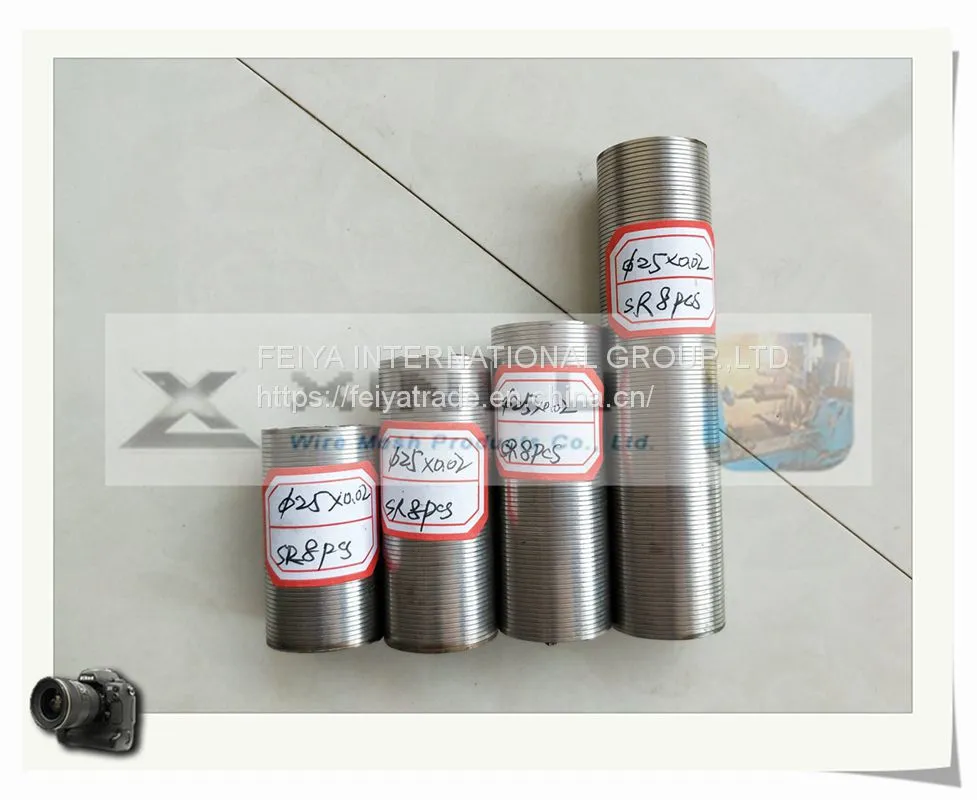

AISI 304 Continuous Slot Wire Wrapped Screen For Geothermal Wells
Continuous Slot Wire Wrapped Screen Description:
Continuous Slot Wire Wrapped Screen also be named:Johnson Screen, Spiral screen tube, Welded wedge wire screen, Reversed slot screen, Continuous slot pre-pack, Water filter, Screen cylinders, Stainless steel slot tube, Reverse rolled screen, Strainer pipe, Continuous slot wire wrap well screens, Pipe base well screen, Ribbed-type wire wrapped screen, Stainless steel wire screen, Wire wrapped liner, Slot wire screen tube, Conical well screen, Oil screen tube
Continuous Slot Wire Wrapped Screen Specification:
| Name | Continuous Slot Wire Wrapped Screen |
| Material | Stainless steel |
| Grade | 304 |
| O.D | 89mm |
| Slot Size | 0.25 mm |
| Components | Welded rings |
| Length | 1000 mm, |
| Filter type | From outside to inside |
| Wire size | 1.5*2 mm |
| Support rod | 2*3 mm |
| Wire shape | Vee-shaped wire |
| Continuous Slot Wire Wrapped Screen Normal Sizes: | ||
|
Specification (Profile wire): Vee shaped wire |
Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 |
|
|

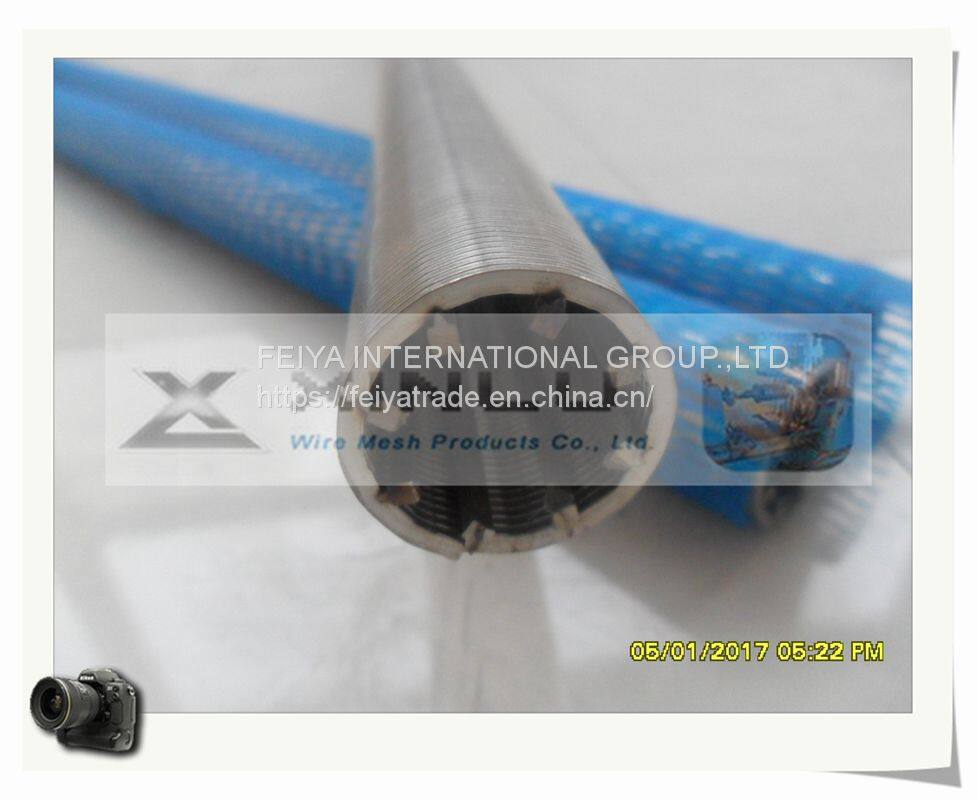

Specification (support rods): Can be Vee shaped wire, Also can be round wire. |
Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm |
|
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1200mm | |
| Screen end | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
|
Advantage
|
Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. |
|
