Product Description

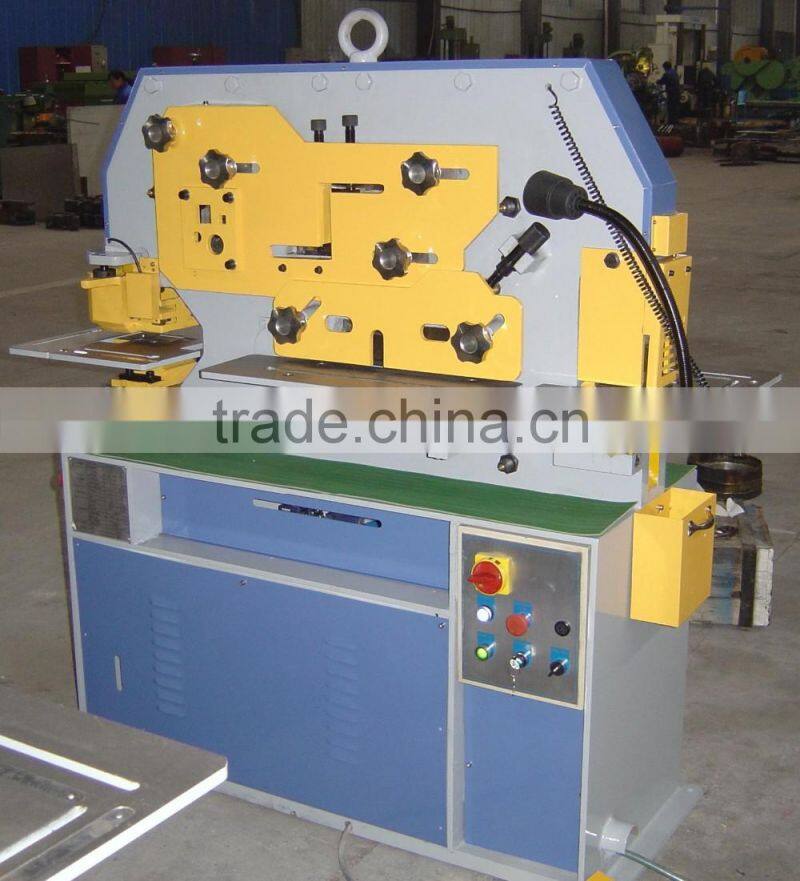

Hydraulic Iron Worker
Model | Q35Y-15 |
Pressure (ton) | 50 |
Max. cutting thickness (mm) | 15 |
Plate strength (N/mm2) | ≤450 |
Cutting angle (degree) | 7° |
Shearing size of one stroke (mm) | 15x300 |
Ram stroke (mm) | 60 |
Number of strokes (cpm) | 8 |
Throat depth (mm) | 200 |
Punching thickness (mm) | 15 |
Max. punching diameter (mm) | 24 |
Power of main motor (kw) | 4 |
Overall dimensions (mm) | 1320x590x1620 |
Weight of machine (kg) | 1400 |
| Round Bar | Square Bar | Equal Angle | T-Bar | Joist | Channel | ||
90°shearing | 45° shearing | 90°shearing | 45° shearing | |||||
| 40 | 35x35 | 120x120x12 | 60x60x6 | 120x120x12 | 50x50x5 | 10# | 10# |
