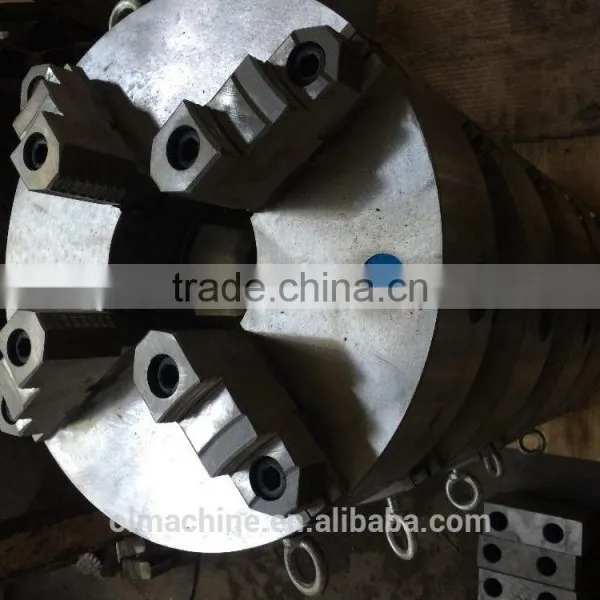

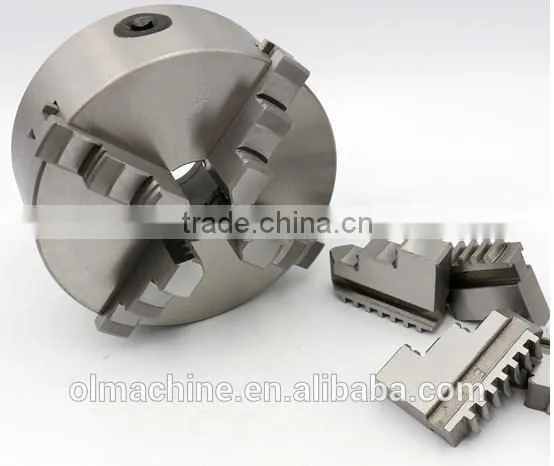

FOUR 4 JAW CHUCK, K12 FOUR 4 JAW SELF CENTRING CHUCK, MACHINE CHUCK
USD $50 - $1,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- China port
- T/T L/C D/P D/A Credit Card
You May Like
-
FOUR 4 JAW CHUCK, K72 FOUR 4 JAW INDEPENDENT CHUCK, MACHINE CHUCK
-
Power feeder model AL-310S AL-410S AL-510S for X Y Z axis
-
slotting head for milling machine with travel 100 125mm
-
TOOL POST AND HOLDERS, Europe type
-
MACHINE VICE, hydraulic power machine vice, drilling machine vice, milling machine vice, precision machine vice, angle vice
-
TOOL POST AND HOLDERS, Italy type
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CHINA | |
| Model Number | 4 Jaw Chuck K12 | Power | Manual | |
| Number of Jaws | 4 |
Product Description

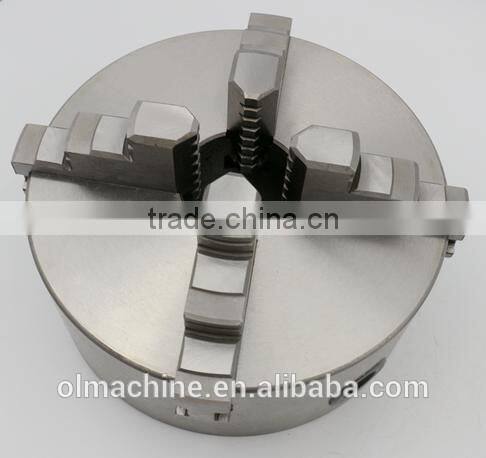

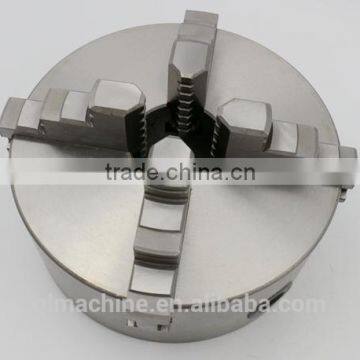

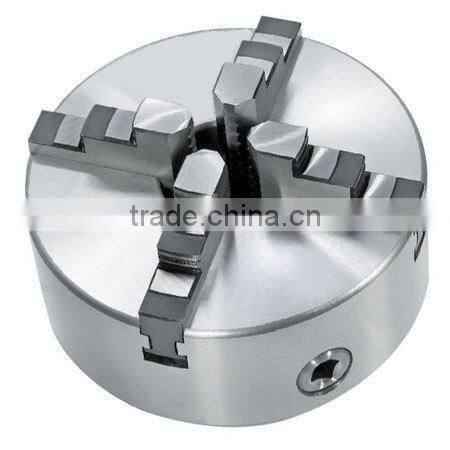

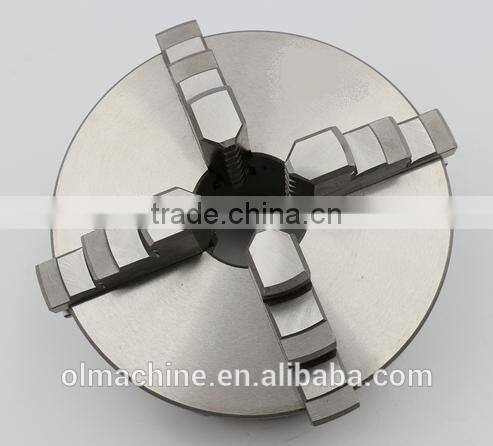

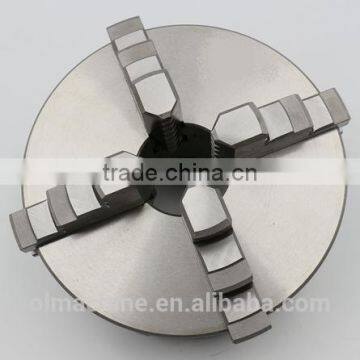

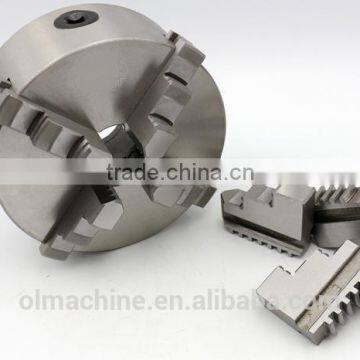

K12 SERIES FOUR-JAW SELF-CENTRING CHUCKS
The chucks of this type are mounted to spindle nose through an adapting flange, same as K11 sery.

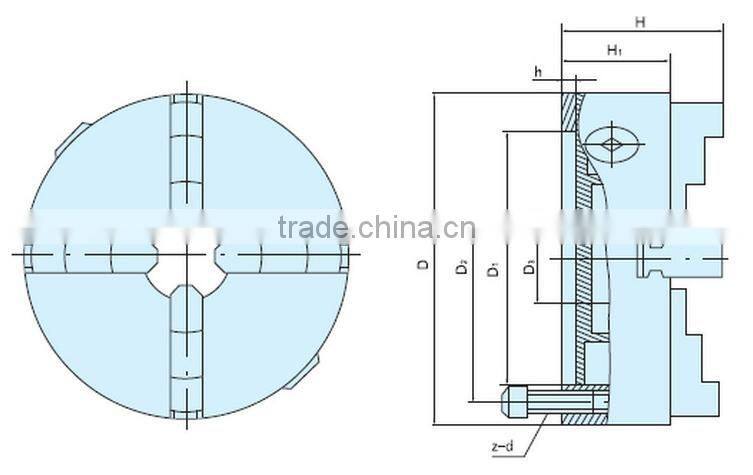

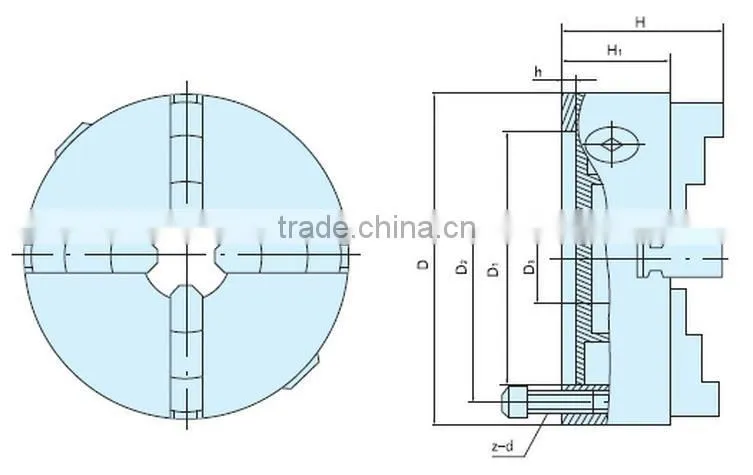

Model | D1 | D2 | D3 | H | H1 | h | z-d | kg |
125 | 95 | 108 | 30 | 84 | 58 | 3.5 | 3-M8 | 5 |
130 | 100 | 115 | 30 | 86 | 60 | 3.5 | 3-M8 | 5.6 |
160 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 | 8.8 |
160A | 130 | 142 | 40 | 109 | 65 | 5 | 3-M8 | 8.3 |
165 | 130 | 145 | 40 | 96.5 | 66.5 | 4.5 | 3-M8 | 9.8 |
190 | 155 | 172 | 55 | 105 | 75 | 5 | 3-M10 | 13.8 |
200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 | 15.5 |
200C | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 | 14.1 |
200A | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 | 14.1 |
240 | 195 | 215 | 70 | 120 | 80 | 8 | 3-M12 | 25 |
250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 | 26 |
250C | 206 | 226 | 80 | 130 | 80 | 5 | 3-M12 | 23 |
250A | 206 | 226 | 80 | 136 | 80 | 5 | 3-M12 | 23 |
325(325C) | 272 | 296 | 100 | 153.5(154.5) | 96 | 12 | 3-M16 | 50(45) |
325A | 272 | 296 | 100 | 169.5 | 96 | 12 | 3-M16 | 47 |
