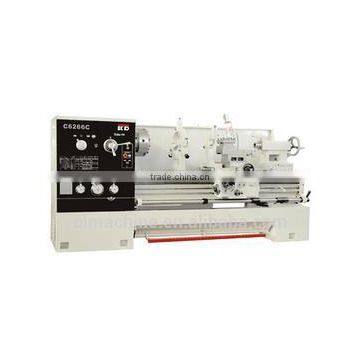

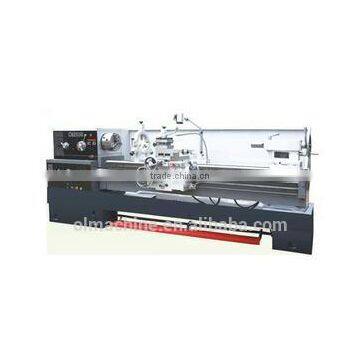

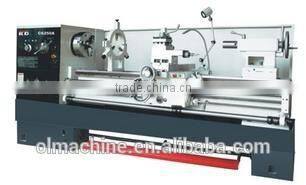

Gap Bed Lathe With Swing Over Bed 500 660mm

C6250A

1000

1500

2000

3000

Max. swing over bed

Ø 500mm

Max. swing over carriage

Ø 310mm

Max. swing over gap

Ø 720mm

Maximum length of workpiece
(two centers)

1000

1500

2000

3000

Spindle nose

Ø 80mm

Spindle taper of bore

M.T.No.7

Number of speeds

12

Spindle speed scope

36-1600 r/min

Thread cutting  for Metric pitch threads( range/no.)

1-14 mm/22

Thread cutting for Whit-worth pitch threads( range/no.)

28-2 T.P.I/26

Thread cutting  for D.P. threads
( range/no.)

56-4D.P/24

Thread cutting  for Module  threads
( range/no.)

0.5-7mm/18

Range of feeds for longitudinal

0.063-2.52mm(0.023"-0.937")

Range of feeds for cross

0.027-1.07mm(0.010"-0.404")

Rapid traverse for longitudinal

4.5 m/min

Rapid traverse for cross

1.9 m/min

Max. travel of top slide

145

Max. travel of cross slide

340mm

Max. size of tool(WxH)

25×25mm

Tailstock sleeve dia.

Ø 75mm

Tailstock taper of bore

M.T.No.5

Tailstock sleeve travel

150mm

Power of main motor

7.5 KW(10HP)

Overall dimensions(L×W×H) (mm)

2500×1100×1380

3000×1100×1380

3500×1100×1380

4500×1100×1380

Net weight

2900

3150

3400

3750

C6250B

C6266B

Max. swing over bed

Ø500 mm

Ø660 mm

Max. swing over carriage

Ø310 mm

Ø420 mm

Max. swing over gap

Ø720 mm

Ø870 mm

Maximum length of workpiece(two centers)

1000/1500/2000/3000mm

Spindle nose

Ø80

Spindle bore

M.T.No.7

Number of speeds

24

Spindle speed scope

9~1600rpm

Thread cutting & range/no. for Metric pitch threads

1~224 mm/46

Thread cutting & range/no. for Whit-worth pitch threads

28~1/8 TPI/46

Thread cutting & range/no. for Module  threads

0.5~112 mm/42

Thread cutting & range/no. for D.P. threads

56~1/4DP/45

Range of feeds for longitudinal

0.063-6.43

Range of feeds for cross

0.027-2.73

Rapid traverse for longitudinal

4.5

Rapid traverse for cross

1.9

Max. travel of top slide

145

Max. travel of cross slide

340mm

360mm

Max. size of tool(WxH)

25×25 mm

Tailstock sleeve dia.

Ø75 mm

Tailstock taper of bore

M.T.No.5

Tailstock sleeve travel

150 mm

Power of main motor

7.5KW(10HP)

Overall dimensions(L×W×H) (mm)

2500/3000/3500/4500×900×1259

2500/3000/3500/4500×1100×1450

Net weight

2750/3000/3250/3600

3000/3200/3400/3900

C6266C

1000

1500

2000

3000

Max. swing over bed

mm

Φ660(26”)

Max. swing over carriage

mm

Φ420(17”)

Max. swing over gap

mm

Φ870(34”)

Max. turned diameter

Φ660(26”)

Maximum length of workpiece(two centers)

mm

1000(40”)

1500(60”)

2000(80”)

3000(118”)

Effective length in gap

mm

230(9”)

Spindle nose

D8

Spindle nose

mm

Φ105(4”)

Spindle taper of bore

Φ113mm 1:20

Number of speeds

12

Spindle speed scope

rpm

36-1600

Thread cutting

range/no.

Metric

Inch

D.P.

Module

1~14mm/22

28~2 t.p.i/26

56~4 D.P/24

0.5~7mm/18

Range of feeds for longitudinal

mm

0.063-2.52(0.023"~0.937")

Range of feeds for cross

mm

0.027-1.07(0.010"~0.404")

Rapid traverse for longitudinal

m/min

4.5

Rapid traverse for cross

m/min

1.9

Max. travel of top slide

mm

145(5-3/4")

Max. travel of cross slide

mm

360(14-3/16")

Max. size of tool(WxH)

mm

25×25(1"×1")

Tailstock sleeve dia.

mm

Φ75(2-61/64")

Tailstock taper of bore

M.T.No.5

Tailstock sleeve travel

mm

150(5-29/32")

Power of main motor

kw

7.5

Overall dimensions(L×W×H) (mm)

mm

2500×1100
×1450

3000×1100
×1450

3500×1100
×1450

4500×1100
×1450

Net weight

kg

3000

3200

3400

3900
