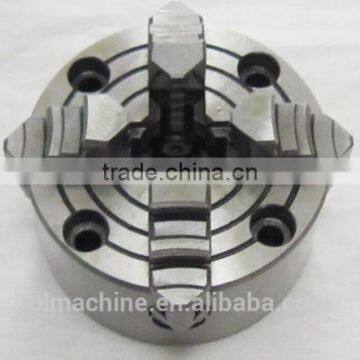

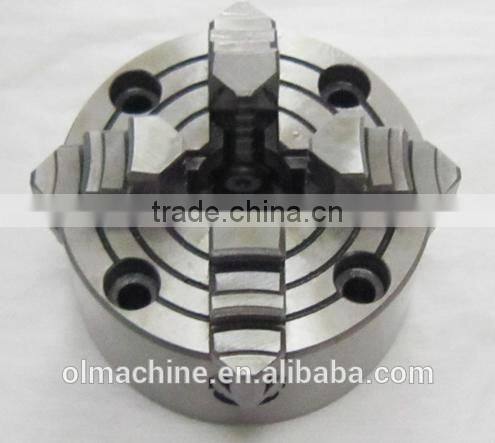

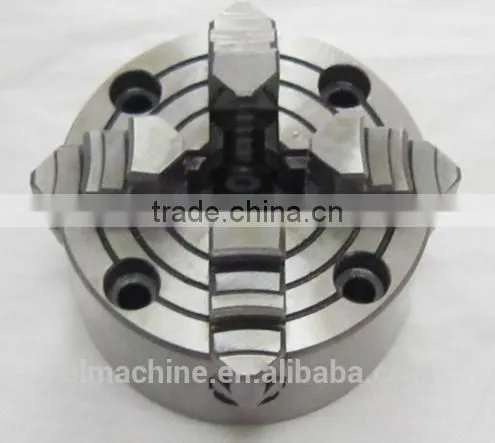

K72 SERIES CYLINDER CENTRE MOUNTING FOUR-JAW INDEPENDENT CHUCKS
The chucks are mounted to spindle nose through adapting flange as cylinder centre mounting.
size D |
D1 |
D2 |
D3 |
H |
H1 |
h |
z-d |
kg |
|
mm |
inch |
||||||||
80 |
3 |
55 |
66 |
22 |
56 |
42 |
3.5 |
4-M6 |
2.0 |
100 |
4 |
72 |
84 |
25 |
73 |
54 |
3.5 |
4-M8 |
2.9 |
125 |
5 |
95 |
108 |
30 |
78 |
56 |
4.5 |
4-M8 |
4.7 |
160 |
6 |
130 |
145 |
40 |
96.5 |
65 |
5 |
4-M10 |
7.7 |
160A |
6 |
53 |
71 |
45 |
96.5 |
65 |
5 |
4-M10 |
8.0 |
160T |
6 |
65 |
95 |
45 |
96.5 |
65 |
5 |
4-M10 |
9.3 |
200 |
8 |
125 |
104.8 |
50 |
110 |
75 |
6 |
4-M10 |
15.1 |
200A |
8 |
75 |
95 |
56 |
110 |
75 |
6 |
4-M10 |
14.1 |
200K |
8 |
80 |
112 |
56 |
110 |
75 |
6 |
4-M10 |
14.1 |
250 |
10 |
100 |
120 |
65 |
117.5 |
82 |
6 |
4-M12 |
21.3 |
250A |
10 |
110 |
130 |
75 |
115.5 |
80 |
6 |
4-M12 |
21.3 |
300 |
12 |
152 |
130 |
75 |
128.5 |
85 |
6 |
4-M12 |
31.0 |
320 |
13 |
140 |
165 |
95 |
134 |
90 |
6 |
4-M16 |
39.6 |
350 |
14 |
130 |
168 |
80 |
145 |
95 |
8 |
4-M16 |
47.9 |
400 |
16 |
160 |
185 |
125 |
143 |
95 |
8 |
4-M16 |
53.9 |
450 |
18 |
180 |
205 |
140 |
147 |
100 |
8 |
4-M16 |
59.8 |
500 |
20 |
200 |
236 |
160 |
161 |
106 |
8 |
4-M20 |
91.3 |
500S |
20 |
200 |
235 |
160 |
161 |
106 |
8 |
4-M18 |
98.5 |
630 |
25 |
220 |
258 |
180 |
180 |
115 |
10 |
4-M20 |
146.5 |
800 |
32 |
250 |
300 |
210 |
210 |
135 |
12 |
8-M20 |
252 |
1000K |
40 |
320 |
370 |
305 |
236 |
145 |
15 |
8-M20 |
395 |
1000A |
40 |
285 |
330 |
280 |
236 |
145 |
7.5 |
8-M20 |
395 |
1250 |
50 |
400 |
500 |
305 |
251 |
160 |
15 |
8-M20 |
585 |
1400 |
55 |
400 |
500 |
305 |
246 |
155 |
15 |
8-M20 |
1030 |
1600 |
63 |
420 |
520 |
320 |
266 |
175 |
18 |
8-M24 |
1570 |
2000 |
80 |
450 |
560 |
350 |
290 |
190 |
20 |
8-M30 |
2310 |
