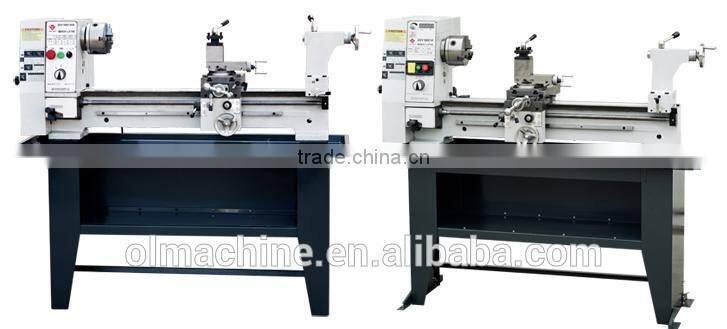

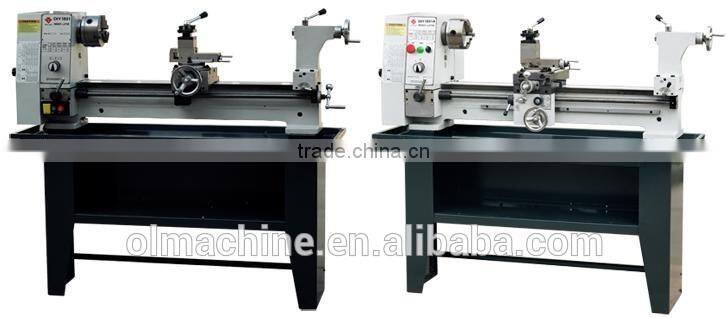

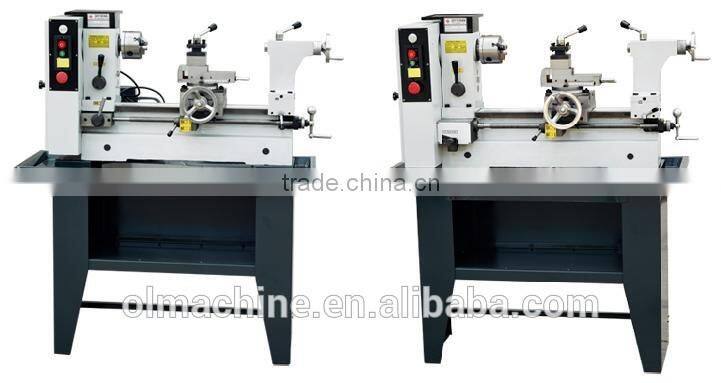

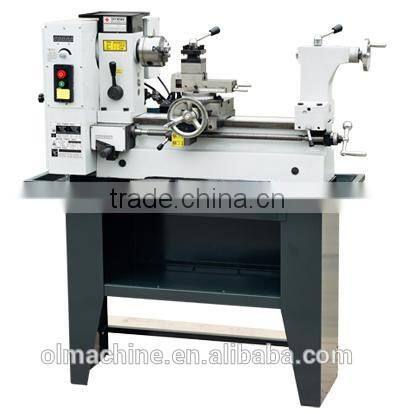

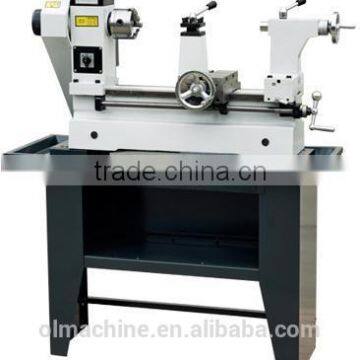

Precision Bench Lathe With Swing Over Bed 420mm

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Certification:

CE ISO

Shaanxi Olong Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Certification CE ISO

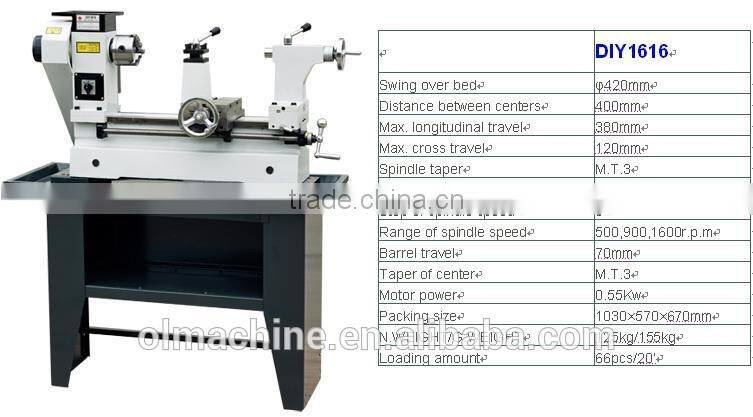

	DIY1616A DIY1616AN
Swing over bed	φ420mm
Distance between centers	400mm
Max. longitudinal travel	380mm
Max. cross travel	120mm
Taper of spindle	M.T.3
Spindle hole	φ20mm
Step of spindle speed	7
Range of spindle speed	160-1360r.p.m
Barrel travel	70mm
Taper of center	M.T.3
Metric thread range	0.2-3mm 0.7-2mm
Inch thread range	8-120TPI 7-30TPI
Longitudinal range of automatic feeding	0.05-0.175mm 0.088-0.28mm /0.002-0.007" /0.0035-0.011”
Cross range of automatic feeding	/
Motor power	0.55Kw
Packing size	1030×570×670mm
N. weight/G. weight	145kg/175kg
Loading amount	66pcs/20’

	DIY1619	DIY1631	DIY1619A DIY1631A
Swing over bed	φ420mm
Distance between centers	500mm	800mm
Max. longitudinal travel	440mm	740mm
Max. cross travel	120mm
Taper of spindle	M.T.4
Spindle hole	φ28mm
Step of spindle speed	6
Range of spindle speed	150-1250rpm
Barrel travel	70mm
Taper of center	M.T.3
Metric thread range	0.75-6mm
Inch thread range	4-120tpi
Longitudinal range of automatic feeding	0.05-0.35mm /0.002-0.014"
Cross range of automatic feeding	/		0.05-0.35mm /0.002-0.014"
Motor power	0.55Kw
Packing size	1130×580×690mm	1430×580×690mm
N. weight/G. weight	175kg/210kg	190kg/230kg
Loading amount	60pcs/20	36pcs/20

	DIY1619AN	DIY1631AN	DIY1619V DIY1631V
Swing over bed	φ420mm
Distance between centers	500mm	800mm
Max. longitudinal travel	440mm	740mm
Max. cross travel	120mm
Taper of spindle	M.T.4
Spindle hole	φ28mm
Step of spindle speed	6		0-630rpm 630-1800rpm
Range of spindle speed	150-1250rpm		0-630rpm 630-1800rpm
Barrel travel	70mm
Taper of center	M.T.3
Metric thread range	0.7-4mm
Inch thread range	4-30T.P.I
Longitudinal range of automatic feeding	0.088-0.55mm /0.0035-0.022"
Cross range of automatic feeding	0.088-0.55mm /0.0035-0.022"
Motor power	0.55Kw		1.1Kw
Packing size	1130×580×690mm	1430×580×690mm
N. weight/G. weight	180kg/215kg	195kg/235kg
Loading amount	60pcs/20’	36pcs/20’
