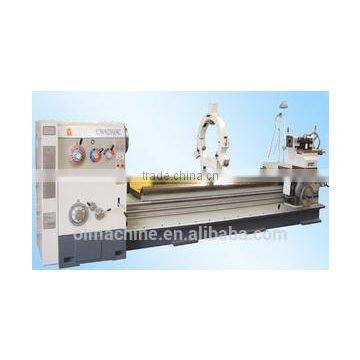

Help CenterHorizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 630 730 830 930 1030 1230 1430 1630 1830mm
Related Products
-
Horizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 630 800 1000 1200mm, Length 1-12m, Loat 2.5-3tNegotiableMOQ: 1 -
Horizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 630 800 1000 1200, Laod 4t, Length 1-12mNegotiableMOQ: 1
-
Horizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 1000 1250 1400 1600mm, Length 1-12m, Load 8tNegotiableMOQ: 1
-
Horizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 1280 1480 1680 1980 2080mm, Laod 12t, L 2-12mNegotiableMOQ: 1
-
Horizontal Lathe, Universal Lathe, Conventional Lathe, Gap Bed Lathe, With Swing 1.6 1.8 2.0 2.2 2.4 2.5m, L 3-16m, Load 32tNegotiableMOQ: 1
Model |
| CW61/2 103C | CW61/2 123C | CW6 1/2 143C | CW6 1/2 163C | CW61/2 183C |
Swing in bed | mm | 1030 | 1230 | 1430 | 1630 | 1830 |
Swing in gap | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
Swing over cross slide | mm | 700 | 900 | 1100 | 1240 | 1440 |
Distance between centers | mm | 1500,2000,3000,4500,6000 | ||||
Length in gap from face plate | mm | 380 | ||||
Spindle nose |
| C11 or D11 | ||||
Spindle bore | mm | 105,130 | ||||
Spindle speed | rpm/steps | 10-800/18 7-576/18 6-480/18 | ||||
Cross slide travel | mm | 615 715 815 915 | ||||
Top rest travel | mm | 225 300 | ||||
Rapid traverse | mm/min | Axe Z:3200,Axe X:1400 | ||||
Quill diameter | mm | 120 | ||||
Quill travel | mm | 270 | ||||
Quill taper |
| MT6 | ||||
Bed width | mm | 610 | ||||
Metric threads | mm/kinds | 1-240/53 | ||||
Inch threads | tpi/kinds | 30-2/31 | ||||
Module threads | mm/kinds | 0.25-60/42 | ||||
Diametral pitch threads | tpi/kinds | 60-0.5/47 | ||||
longitudinal feeds | mm/r | 0.07-16.72 | ||||
ain motor power | kw | 0.04-9.6 | ||||
Main motor power | kw | 11 | ||||
