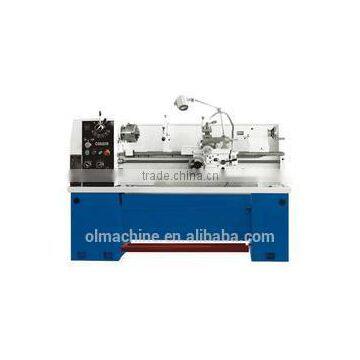

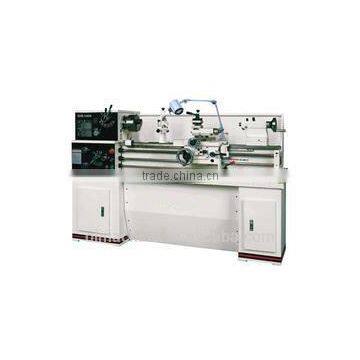

Bench Lathe With Swing Over Bed 330, 360mm

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		Model Number	C0632A C0632B C0636A C0636B GHB-1340A GHB-1440A
Certification	CE ISO

	C0632A	C0636A
Max. swing over bed	13"(330mm)	14"(360mm)
Max. swing in gap	183/4"(476mm)	197/8"(506mm)
Max. swing over slide	71/4"(185mm)	81/2"(215mm)
Bed width	73/8"(187mm)
Max. Length of workpiece	30"(750mm)40"(1000mm)
Spindle nose	D1-4
Spindle bore	11/2"(φ38mm)
Taper of bore in spindle Morse	No.5
Spindle speed steps	8
Spindle speed scope	70~2000r/min
Inch thread	4~56T.P.I/32
Metric thread	0.4~7mm/32
Diametral thread	8~120D.P./33
Module thread	0.2~3.5MP/27
Longitudinal feed range	0.0032~0.1067in/r(0.082~2.71mm/r)
Cross feed range	0.00086~0.0367in/r(0.022~0.933mm/r)
Max. travel of tailstock quill	35/8"(95mm)
Taper hole of tailstock	No.3
Electric motor	2HP(1.5KW)110v or 220v(1ph) 220v or 380v(3ph)
Net weight / Gross weight(1000mm)	495/595kg

	C0632B
Max.swing over bed	13"(330mm)
Max.swing in gap	183/4"(476mm)
Max.swing over slide	71/4"(200mm)
Bed width	73/8"(187mm)
Max.length of workpiece	30"(750mm)40"(1000mm)
Spindle nose	D1-4
Spindle bore	11/2"(φ38mm)
Taper of bore in spindle morse	No.5
Spindle speed steps	8
Spindle speed scope	70~2000r/min
Inch thread	40~21/4T.P.I/32
Metric thread	0.45~10mm/28
Longitudinal feed range	0.0013~0.0173in/r(0.026~0.348mm/r)
Cross feed range	0.0005~0.0059in/r(0.007~0.096mm/r)
Max. travel of tailstock quill	35/8"(95mm)
Taper hole of tailstock	No.3
Electric motor	2HP(1.5KW)110v or 220v(1ph) 220v or 380v(3ph)
Net weight / Gross weight(1000mm)	495/595kg

	GHB-1340A	GHB-1440A
Max. swing over bed	330mm	360mm
Max. swing in gap	476mm	506mm
Max. swing over slide	200mm	215mm
Bed width	187mm
Max. length of workpiece	1000mm
Spindle nose	D1-4
Spindle bore	Φ38mm
Taper of bore in spindle	MT-5
Spindle speed steps	8
Spindle speed scope	70~2000 r/min
Inch thread	3-1/2-80T.P.I/38
Metric thread	0.45~10mm/23
Longitudinal feed range	0.0018"~0.0374"
Cross feed range	0.0006"~0.0130"
Max. travel of tailstock quill	95mm
Taper bore of tailstock quill	MT-3
Main motor	2HP(1.5KW),1HP
Net weight / Gross weight	524/620Kg	550/680kg
