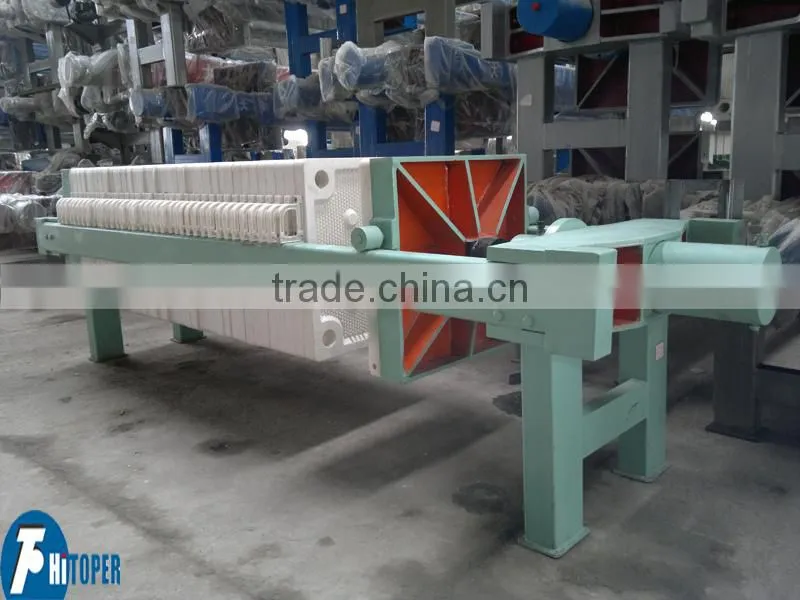

high efficiency dewatering machine, easy operation filter press
This PLC controlled chamber filter press are widely used to coal washing, inorganic, mining, alcohol, petroleum, metallurgy, chemicals, fuel, medicine, food, textile, printing, dyeing, paper making, sewage treatment and other fields.

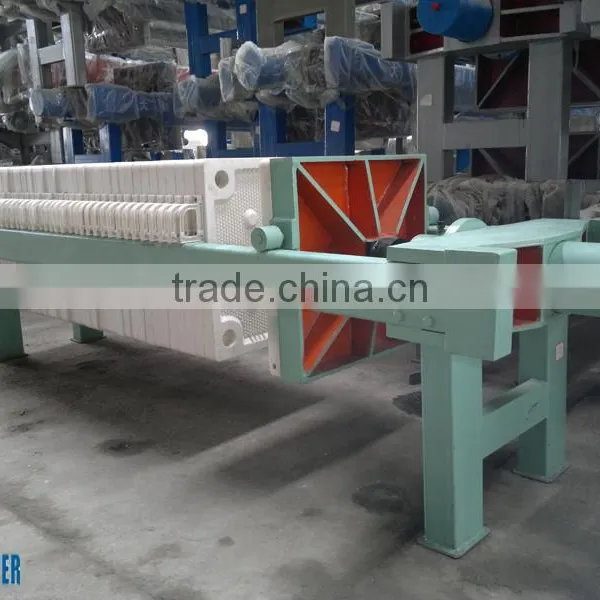

Thisfilter press is the recessed chamber one with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Operation process includes the following,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. A worker will have to discharge the cake manually.
All types technical parameters.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
How to order filter press
According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XY30/870-30U, XY100/1000-30U or others.
2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.
3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
