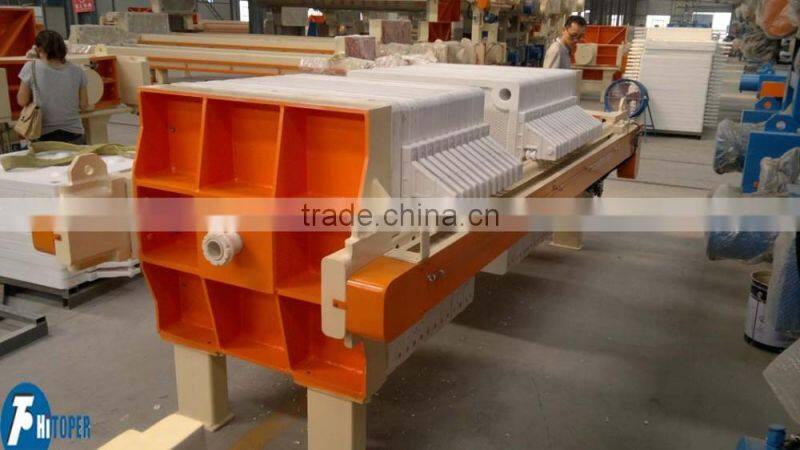

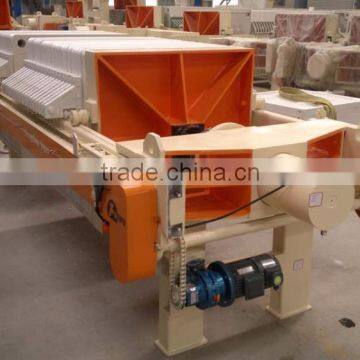

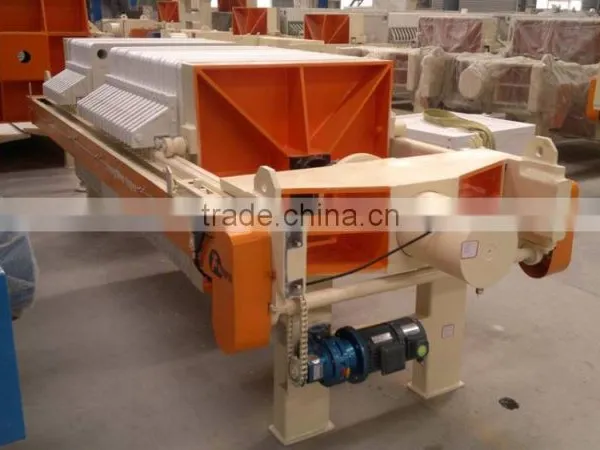

sludge press machine for sludge and water treatment
Our company produces various models of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts.
There are several benefits of our automatic filter press and they can be summarized as follows:
Shortening of the filtration cycle compared to common types of filter presses – significantly accelerated shifting of plates, removing of the filtration cake and repeated closing of the filter press.
Low operating costs thanks to a fully automatic operating mode with minimum demands on the operator's presence.
Smaller dimensions and weight of the filter press give the same performance, compared to the manual, or semiautomatic filter press.
Wholly automatic degree as bellow:
1. Automatic high-pressure membrane squeezing
2. Automatic filter cloth washing
3. Automatic filtrate collecting and plate-reversing
4. Multiple material feeding
5. Plate drawing by grouping
6. Automatic open and close of valves
7. Automatic startup and stop the pumps
8. Multiple pressure detection and temperature controlling
9. Safety Light Curtains
10. Over temperature alarm.
11. Over pressure alarm.
Application,
municipal Sewage
excess biological activated slurry
primary slurry
digested slurry
ground water slurry
river water slurry
Technical parameters:
Specification | Filter area (m2) | Filter plate size (mm) | Filter cake thickness (mm) | Filter chamber volume (L) | Filter plate number (pcs) | Filtrating pressure (Mpa) | Motor power (kw) | Weight (kg) | |
XZ30/800-30U | 30 | 870*870 | 30 | 460 | 23 | 0.6 | 5.5 | 3046 | |
XZ40/800-30U | 40 |
| 595 | 30 |
|
| 3593 | ||
XZ50/800-30U | 50 |
| 748 | 38 |
|
| 4057 | ||
XZ60/800-30U | 60 |
| 902 | 46 |
|
| 4597 | ||
XZ70/800-30U | 70 |
| 1056 | 54 |
|
| 5136 | ||
XZ80/800-30U | 80 |
| 1210 | 62 |
|
| 5636 | ||
XZ50/1000-30U | 50 | 1000* 1000 |
| 752 | 28 | 0.6 | 5.5 | 4128 | |
XZ60/1000-30U | 60 |
| 908 | 34 |
|
| 4636 | ||
XZ70/1000-30U | 70 |
| 1063 | 40 |
|
| 5143 | ||
XZ80/1000-30U | 80 |
| 1219 | 46 |
|
| 5651 | ||
XZ100/1000-30U | 100 |
| 1505 | 57 |
|
| 6628 |
Other service:
we can also supply auto varicose, liquid collection, sludge storage furnel, cloth cleaning system.
