food processing machinery manufacturers, semi-automatic filter press
- 25 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
- Small Efficient vertical automatic laboratory belt filter press with advanced design
- China professional manufacturer fruit belt press filter
- belt extractor for press juice from fruit and vegetables
- Automatic fruit press belt equipment apple juicer machine
- Ion Exchange Nozzles for Intermediate Plate
- CHAMBER FILTER PRESS
Product Details
Condition: | New | Automatic Grade: | Automatic | Production Capacity: | 100m2 |
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | XY100/1000-30U |
Voltage: | 380V/220V/400V | Power(W): | 4000 | Weight: | 6628kg |
Dimension(L*W*H): | 5780*1500*1400mm | Certification: | CE | Warranty: | 18 months after delirvery date. |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

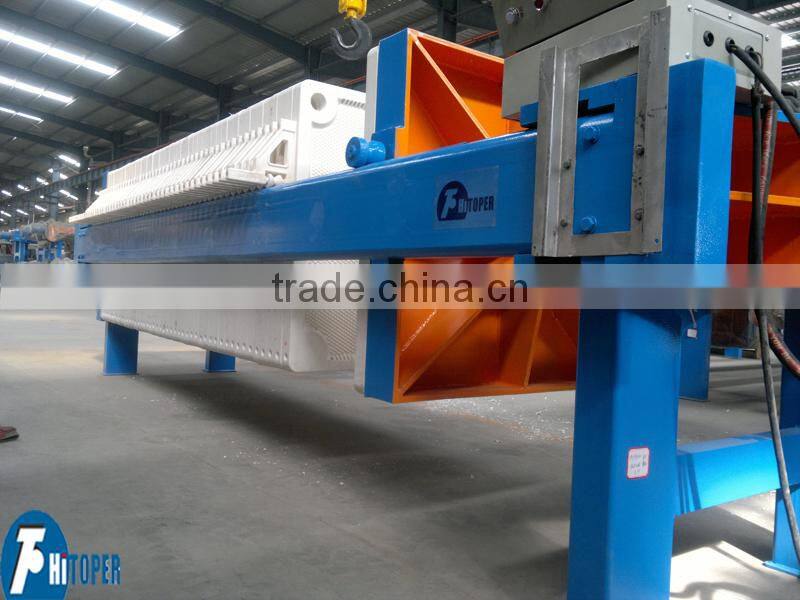

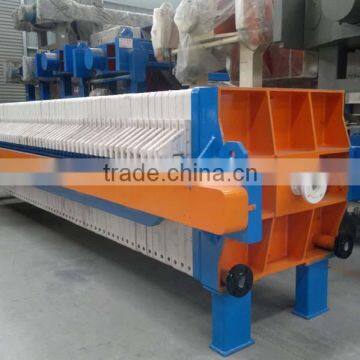

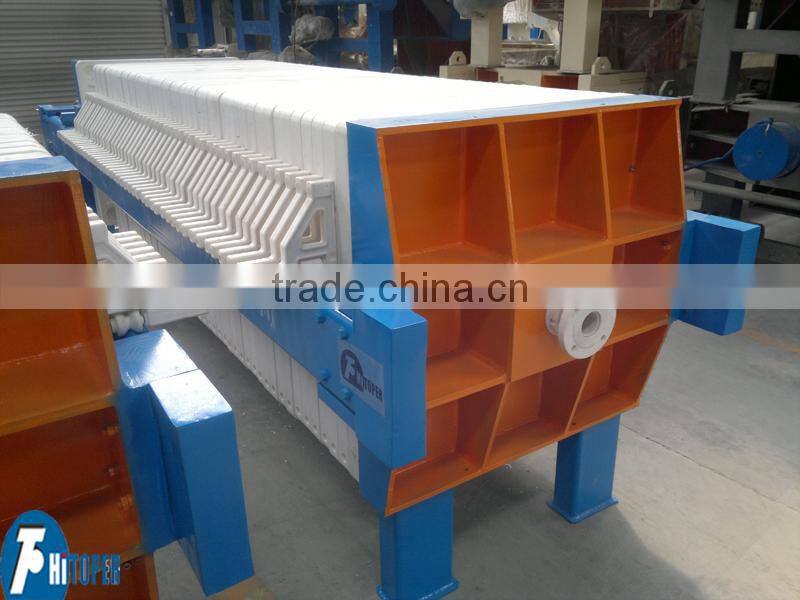

food processing machinery manufacturers, semi-automatic filter press
This filter press is the recessed chamber one with center feeding. It consists of beam, filter plate, filter cloths, hydraulic unit and electric control cabinet.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Working principle of filter press,
1. The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate. And chambers form between every two plates.
2. The pump will deliver the mud into the chambers. Solids retainled in the chamber to be cake, and liquid flow out. Until the cakes is full. Then pump stops.
3. With about 10 minutes pressure holding. When you see there is no liquid flow it, the squeezing process finishs.
4. A worker will have to discharge the cake manually.
All types technical parameters of filter press .
Application of filter press
This hydraulic closing filter presses are widely applied in petroleum, chemical, metallurgy, environmental protection, food, beverage, pharmaceutical, sugar, starch, paper, coal washing, ceramics, mineral processing and various sewage treatment industries’ separation the solid-liquid
Why choose us
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
