Lower moisture open diaphragm press filter
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation.
Diaphragm filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.
Features of diaphragm filter press:
1. Frame consists of thrust plate, pressing plate, base, oil cylinder body and main beam etc.
2. The PP membrane filter plate with fratures of good mechanical performance, stable chemical properties, light-weight, smooth and flat surface, good sealing, easy-to-wash etc.
Applications of diaphragm filter press:
Commodity and Specialty Chemicals
Pharmaceutical Raw Materials and Intermediates
Food Products and Ingredients
Clay and Ceramic Powders
Dyes and Pigment
Industrial Waste Dewatering and Recycling
Oil industry
Technical paremeters of diaphragm filter press:
Type | Filter area(m2) | Plate size(mm) | Filter chamber volume(L) | Cake thickness(mm) | Number plate(pcs) | Filtration pressure | Motor power(Kw) | Weight(t) | Dimensions(mm) |
XG30/800-30U | 30 | 800*800 | 460 | 30 | 23 | 0.6 | 2.2 | 2.68 | 3120*1390*1700 |
XG40/800-30U | 40 | 595 | 29 | 3.05 | 3510*1390*1700 | ||||
XG50/800-30U | 50 | 748 | 37 | 3.47 | 4150*1390*1700 | ||||
XG60/800-30U | 60 | 902 | 45 | 4.00 | 4730*1390*1700 | ||||
XG70/800-30U | 70 | 1056 | 53 | 4.58 | 5440*1390*1700 | ||||
XG80/800-30U | 80 | 1210 | 61 | 5.08 | 5760*1390*1700 | ||||
XG50/1000-30U | 50 | 1000*1000 | 752 | 27 | 0.6 | 4.0 | 4.35 | 4430*1500*1800 | |
XG60/1000-30U | 60 | 908 | 33 | 4.80 | 4890*1500*1800 | ||||
XG70/1000-30U | 70 | 1063 | 39 | 5.26 | 5350*1500*1800 | ||||
XG80/1000-30U | 80 | 1219 | 45 | 5.72 | 5800*1500*1800 | ||||
XG100/1000-30U | 100 | 1505 | 57 | 6.55 | 6710*1500*1800 | ||||
XG120/1000-30U | 120 | 1816 | 69 | 7.47 | 7466*1500*1800 |
According to customer special requirements, our company can produce non-standard models and suitable for your needs.

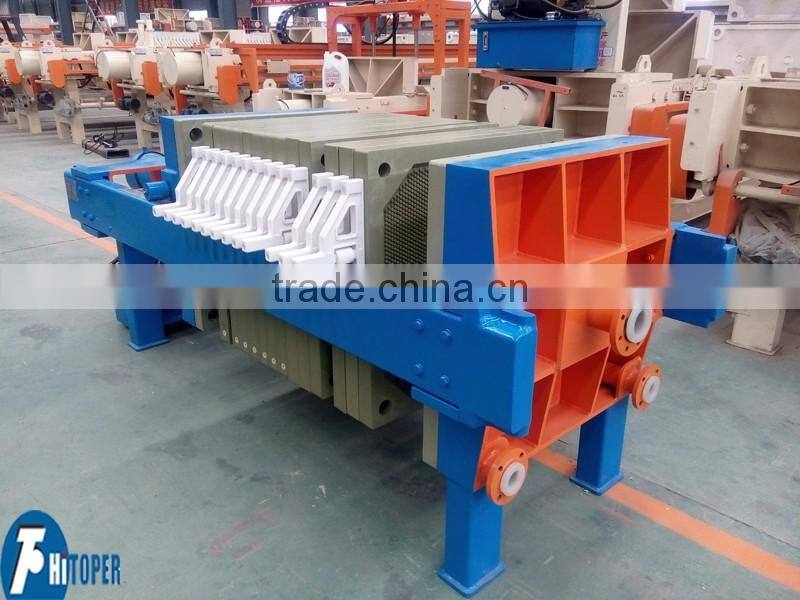

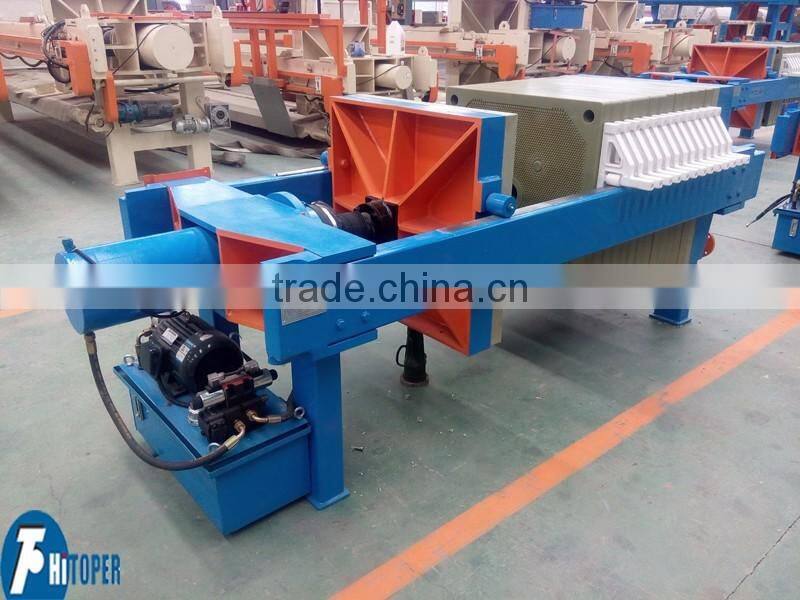

Factory pictures,

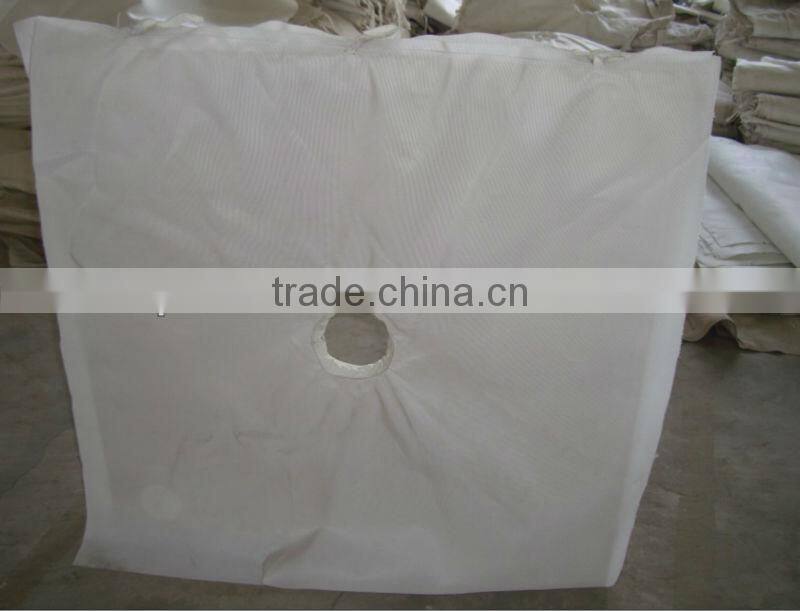

Filter plate,

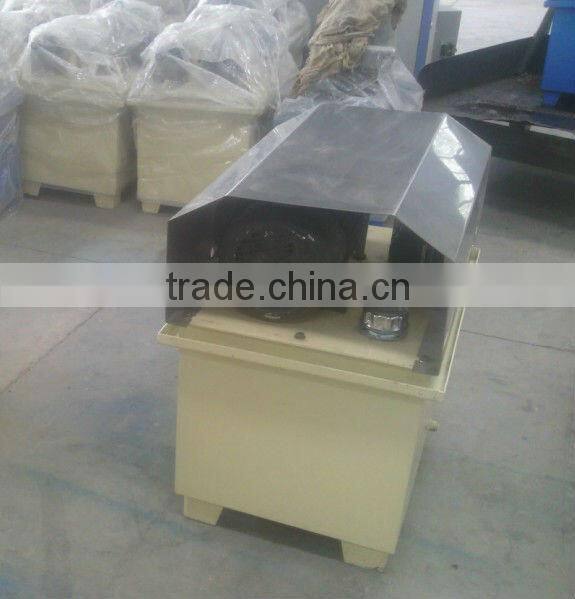

Hydraulic unit,
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 5 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have ISO 9001:2008, CE certificate, also they will be tested before delivery.
3. Our superiority,
We are one of the Top 3 in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
Contact person, Joycee Chen
Company, Zhengzhou Toper Industrial Equipment Co., Ltd
Website,
Tel, 0086-150-9307-0185
Fax, 0086-371-6372-0313
