Pressing dehydration filter use of wastewater treatment techniques,recessed filter press for sale
- 300 Set / Sets per Month
- Qingdao Shanhai Tianjin
- T/T
- Small Efficient vertical automatic laboratory belt filter press with advanced design
- China professional manufacturer fruit belt press filter
- belt extractor for press juice from fruit and vegetables
- Automatic fruit press belt equipment apple juicer machine
- Ion Exchange Nozzles for Intermediate Plate
- CHAMBER FILTER PRESS
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Production Capacity: | 30m2 |
Place of Origin: | Henan, China | Brand Name: | TOPER | Model Number: | XY30/630-30U |
Voltage: | 380V | Power(W): | 2.2KW | Weight: | 2360KG |
Dimension(L*W*H): | 3590*900*1100mm | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pressing dehydration filter use of wastewater treatment techniques,recessed filter press for sale
Brife introduction of the wastewater pressing dehydration filter

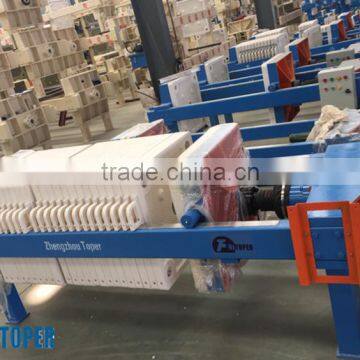

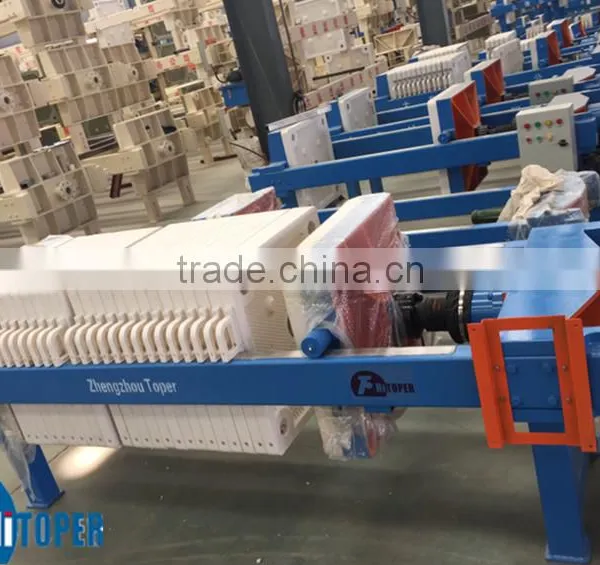

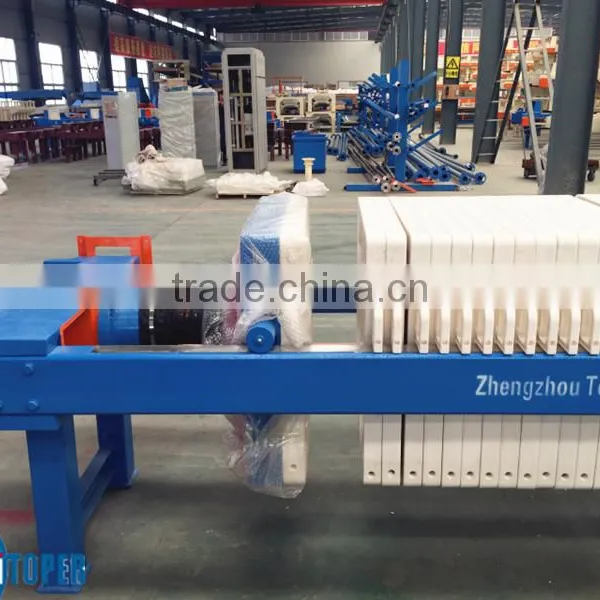

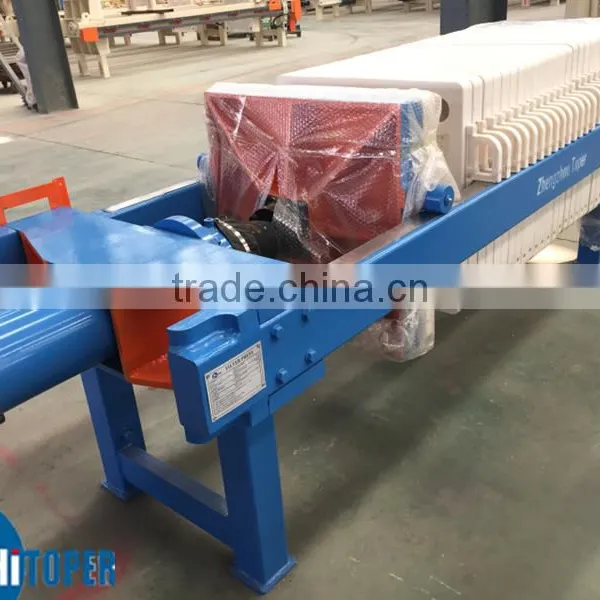

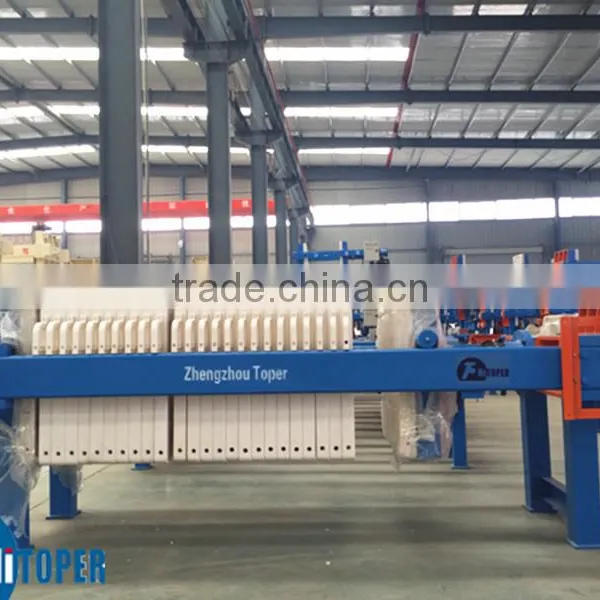

This type of filter press machine is mainly consist of frame,filter plate ,hydraulic pressing system .Which has the advantage of hydraulic pressure, automatic maintain pressure,working stable ,compact structue,easy to use ,PP type durable use filter plate ,variety kinds of models ,large capacity ,energy and labor saving and so on.
The fitler press is widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.
Working principle the wastewater pressing dehydration filter:
When the filter press is suitable installation, you can push the power button ,and the pressing process is start as the machine is automatically controled :
The cylinder piston of hydraulic device drives the push plate to press the filter plate and filter cloth between push plate and tail plate.Filter chamber are formed between pressed filter plates and materials get into the filter chamber through the inlet of tail plate with the help of feeding pump.
Solid particles are remainned in filter chambers forming into cakes ,while liquid is discharged out of the machine through press cake and filter cloth.
To wash the press cakes,washing water can be introduced through the washing inlet of the tail plate.
Technical parameters of the filter press
01. 450/630/800/870 chamber type hydraulic compress filter press
Type | (m2)Filter area | (mm)Filter plate size | (mm)Filter cake thickness | Filter chamber volume | (pcs)Filter plate number | (Mpa)Filtrating pressure | (kw)Motor power | (kg)Weight | (mm)Dimension (L×W×H) |
XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
XY30/870-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
02. 450/630/800/870 plate and frame type hydraulic compress filter press
Type | (m2)Filter area | (mm)Filter plate size | (mm)Filter cake thickness | Filter chamber volume | (pcs)Filter plate number | (Mpa)Filtrating pressure | (kw)Motor power | (kg)Weight | (mm)Dimension (L×W×H) |
XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
XY30/870-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |

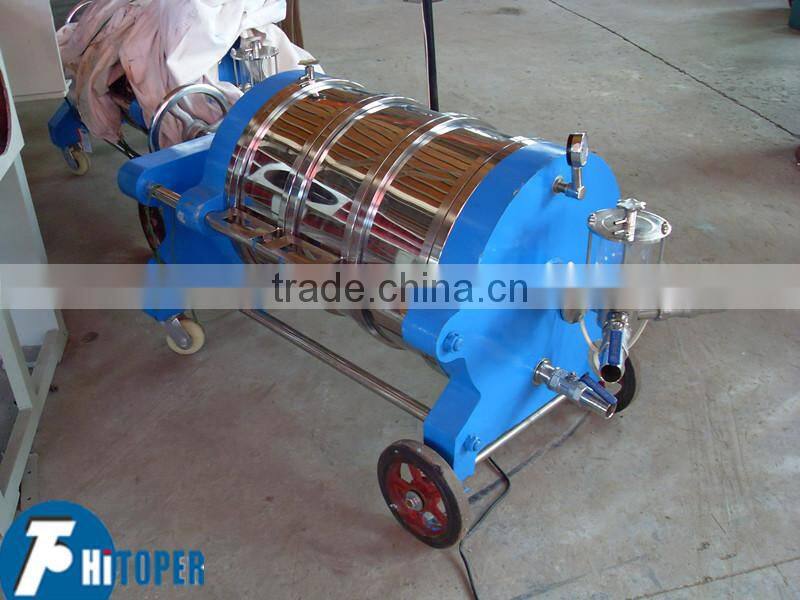

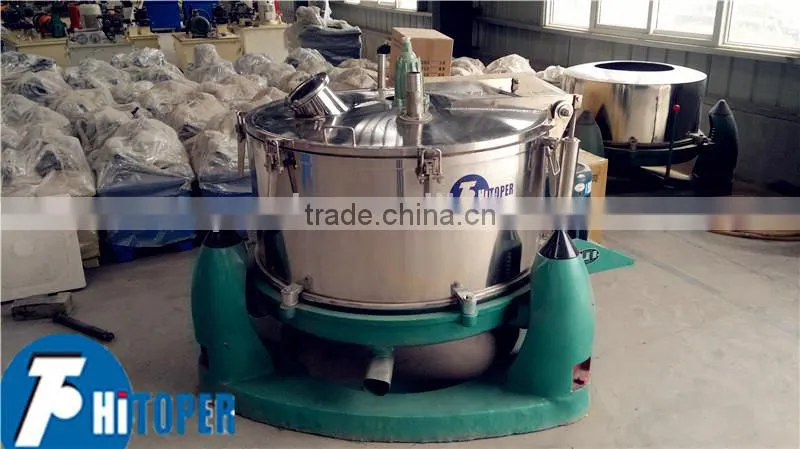

Toper's different kinds of filter and separator equiment :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Also ,we focus on full service for filtering project from desigh to after -sale service and fast supply of spare parts.

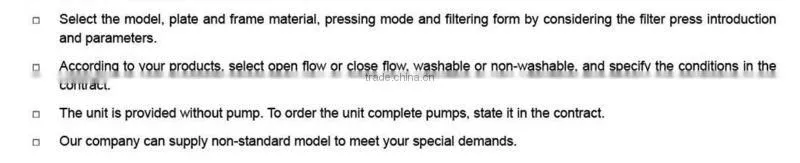

How to order filter press
Pressing dehydration filter use of wastewater treatment techniques,recessed filter press for sale
Pressing dehydration filter use of wastewater treatment techniques,recessed filter press for sale
Pressing dehydration filter use of wastewater treatment techniques,recessed filter press for sale
