Membrane filter press used after magnetic seperation
Our company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. And membrance filter press has received a very good reputation.

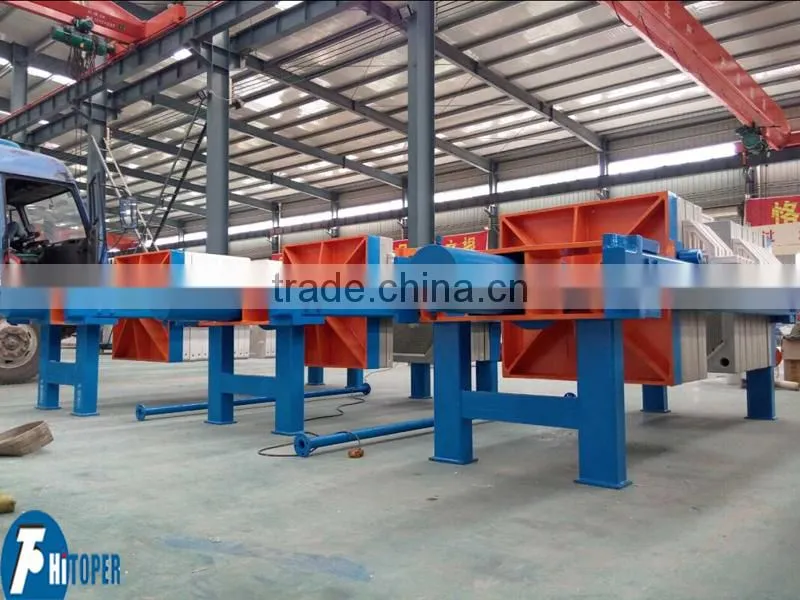

membrane filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.

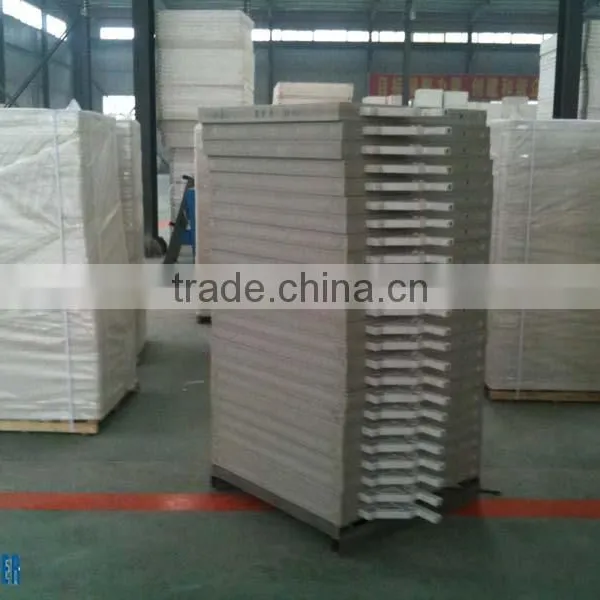

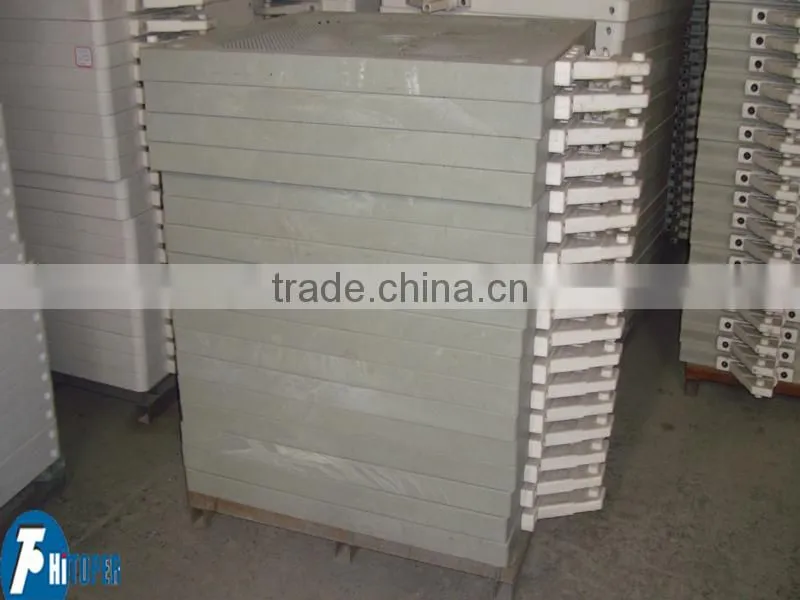

Membrane plates are constructed in the same basic method as the recessed chamber plates. The drainage surface of the plates, however, are flexible. After filtration, when the chambers are filled with solids and while the filter press is stilled, air pressure is exerted behind the flexible drainage of the plate. The membrane in turn inflates to exert pressure on the filter cake which have been formed. The cakes are then squeezed to reduce the amount of remaining moisture prior to cake discharge
This Membran Filter Press, however, can be stopped at the most efficient point in its cycle. By applying pressure to the membrane built into the filter plate, the cake is squeezed to achieve final solids content in a significantly reduced cycle time.
Applications of membrane filter press:
Urban sewage treatment
Commodity and Specialty Chemicals
Pharmaceutical Raw Materials and Intermediates
Food Products and Ingredients
Clay and Ceramic Powders
Dyes and Pigment
Industrial Waste Dewatering and Recycling
Oil industry
Technical paremeters of membrane filter press:
Type |
Filter area(m2) |
Plate size(mm) |
Filter chamber volume(L) |
Cake thickness(mm) |
Number plate(pcs) |
Filtration pressure |
Motor power(Kw) |
Weight(t) |
Dimensions(mm) |
XG30/870-30U |
30 |
870*870 |
460 |
30 |
23 |
0.6 |
2.2 |
2.68 |
3120*1390*1700 |
XG40/870-30U |
40 |
595 |
29 |
3.05 |
3510*1390*1700 |
||||
XG50/870-30U |
50 |
748 |
37 |
3.47 |
4150*1390*1700 |
||||
| XG60/870-30U | 60 |
902 |
45 |
4.00 |
4730*1390*1700 |
||||
XG70/870-30U |
70 |
1056 |
53 |
4.58 |
5440*1390*1700 |
||||
XG80/870-30U |
80 |
1210 |
61 |
5.08 |
5760*1390*1700 |
||||
XG50/1000-30U |
50 |
1000*1000 |
752 |
27 |
0.6 |
4.0 |
4.35 |
4430*1500*1800 |
|
XG60/1000-30U |
60 |
908 |
33 |
4.80 |
4890*1500*1800 |
||||
XG70/1000-30U |
70 |
1063 |
39 |
5.26 |
5350*1500*1800 |
||||
XG80/1000-30U |
80 |
1219 |
45 |
5.72 |
5800*1500*1800 |
||||
XG100/1000-30U |
100 |
1505 |
57 |
6.55 |
6710*1500*1800 |
||||
XG120/1000-30U |
120 |
1816 |
69 |
7.47 |
7466*1500*1800 |
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
