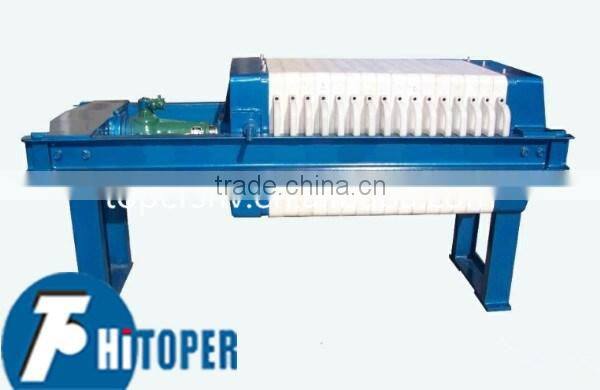

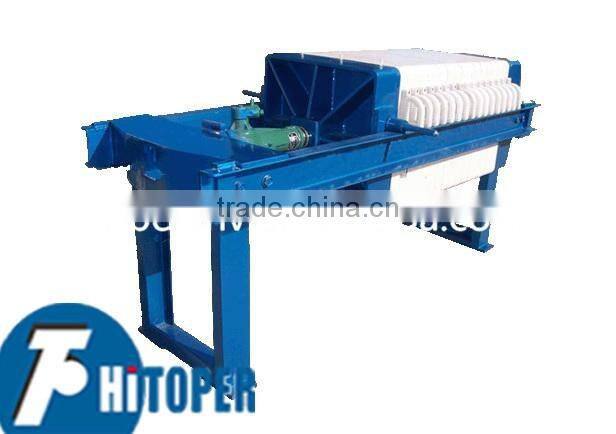

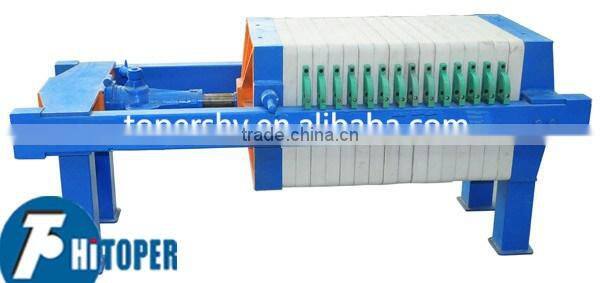

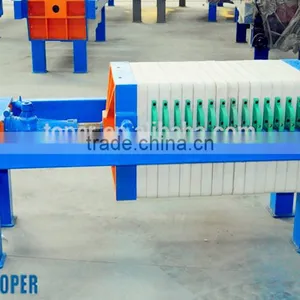

High Quality Jack Filter Press Used in Solid-liquid Separation

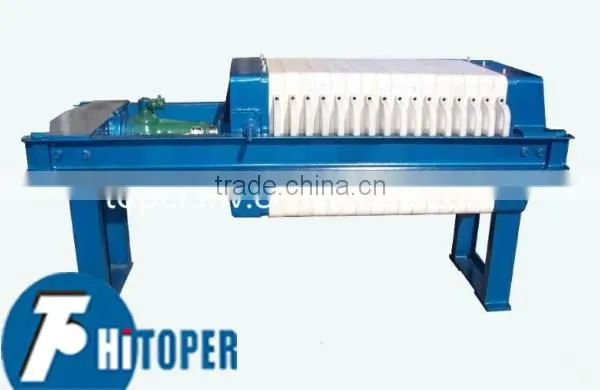

High quality jack filter press used in solid-liquid separation

Design featureJack press filter is a kind of intermittent pressure filtration equipment,uses screw jack as a pressing device,It is suitable for variety suspension's solid-liquid separation.

1.Simple structure

2.Easy operation

3.No need power

4.Economical and practical

Component and function

Filter press is mainly composed of three parts, namely: the frame parts, filter, pressure device.Filter press work, turn the handwheel, through small faint, big gear teeth, drive the screw drive pressure plate, pressure plate and the thrust plate is between the filter plate and filter medium (cloth) pressure, in order to make sure with working pressure of the filter material (slurry) in the indoor filter for pressure filtration.

1.Frame: frame constitute the basis of the pressure filter, filter is used to support institutions and connect other components.It is mainly composed of thrust plate, pressure plate, pressure of parts and main girder.

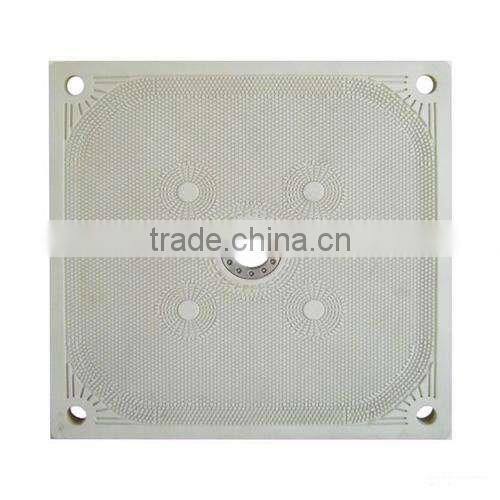

2.Filter plate: is made in a certain order filter plate is arranged on the main girder and between filter plate of filtering medium (filter cloth), to form the filter unit (room).

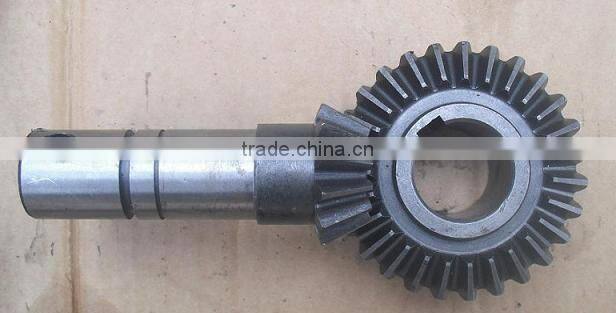

3.Pressing system: it is the power of pressure filter device, main parts are small tooth faint, big gear, screw, etc.The whole machine structure design reasonable, stable and reliable performance, simple operation, convenient maintenance, the applicable scope is wide, it is an ideal equipment of suspending liquid separation.

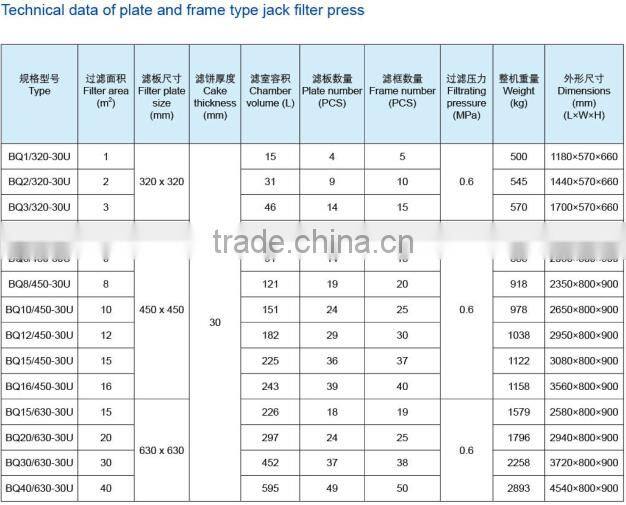

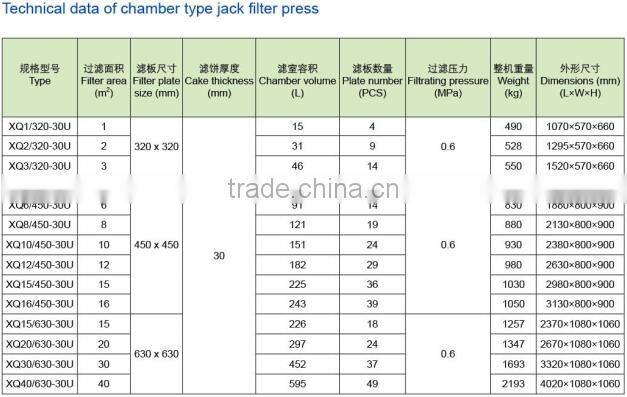

All types technical paramenters

Application

Separation effect is good, easy to use, widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, papermaking and sewage treatment and other solid-liquid separation is required

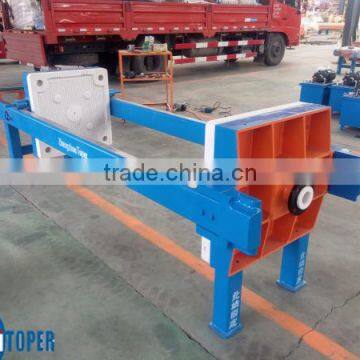

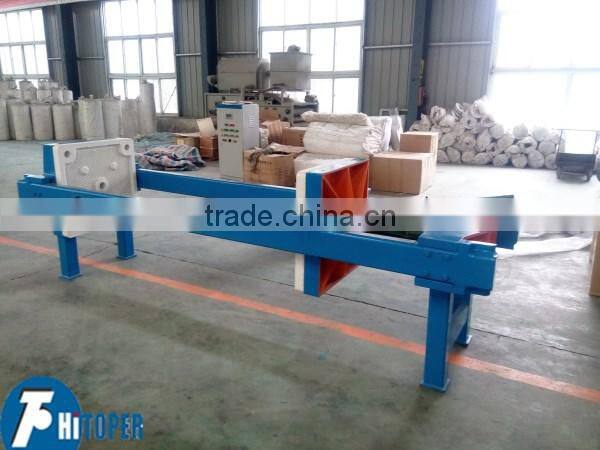

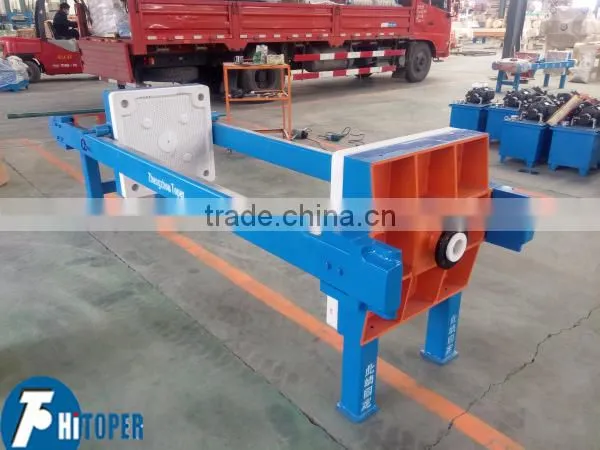

More photos

Our factory ability

1. Manufacture experience,

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

2. Technology capacity,

We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

3. Our superiority,

We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

4. Best after-sales,

Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.

Our service

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Suriname, Australia, Russia etc.
