Filter press machine equipped rubber plate manufacturers of China
1.Brief introduction:
The hydraulic compress membrane water filter ,whose filtration chamber is composed by membrane plate and the chamber plate ,with the help of the feeding pump,the solid and liquid are separated by the filter medium(filter cloth) .After the filter cake is formed,and then air or liquid goes into membrane plate.The second squeezing happens by membrane late bulk and lower moisure content.
Filter for viscous materials require higher moisture content and for users of this machine have their unique characteristics.
Plate with enhanced molded polypropylene, polypropylene plate with diaphragm mounted together, sturdy, secure, not easy fall off, long service life
Advantages of membrane filter press:
- High product throughput
- Reduction of the residual moisture of the filter cake
- Shorter filtration, wash and cake cycles
- Drier cakes means energy saving on cake drying and transportation
- The optimized cake structure facilities quicker and better washing results
- Varying product quantities and compositions present no problems to the membrane filter press
- High degree of automation, labor-saving and ease to operate:adopting PLC control system, including automatic keeping pressure, automatic pulling board, quick program functions,ect.
Specifications and technical parameters of membrane filter press:
| Type | (m2) Filter area | (mm) Filter plate size | (mm) Filter cake thickness | (L) Filter chamber volume | (pcs) Filter plate number | (Mpa) Filtrating pressure | (kw) Motor power | (kg) Weight | (mm) Dimension (L×W×H) |
| XG30/870-30U | 30 | 870×870 | 30 | 427 | 23 | 0.6 | 4.0 | 2680 | 3490×1250×1300 |
| XG40/870-30U | 40 | 534 | 29 | 3050 | 3880×1250×1300 | ||||
| XG50/870-30U | 50 | 676 | 37 | 3465 | 4400×1250×1300 | ||||
| XG60/870-30U | 60 | 818 | 45 | 4003 | 4920×1250×1300 | ||||
| XG70/870-30U | 70 | 960 | 53 | 4584 | 5240×1250×1300 | ||||
| XG80/870-30U | 80 | 1103 | 61 | 5082 | 5760×1250×1300 | ||||
| XG50/1000-30U | 50 | 1000×1000 | 665 | 27 | 0.6 | 4.0 | 4352 | 4270×1500×1400 | |
| XG60/1000-30U | 60 | 808 | 33 | 4480 | 4770×1500×1400 | ||||
| XG70/1000-30U | 70 | 950 | 39 | 5263 | 5130×1500×1400 | ||||
| XG80/1000-30U | 80 | 1093 | 45 | 5719 | 5560×1500×1400 | ||||
| XG100/1000-30U | 100 | 1378 | 57 | 6555 | 6410×1500×1400 | ||||
| XG120/1000-30U | 120 | 1663 | 69 | 7466 | 7260×1500×1400 |
Pictures to show you principle of the second sequeezing process
01.After the filter cake are formed ,the diaphragm valve open and air or liquid (usually water)goes into the membrane plate
02.The membrane plate filled with air or liquid,so the membrane plate is expanded, this can make the second squeezing of the filter cake,and lower the moisture content
Membrane plates of membrane filter press are made from RPP material moulded. Diaphragm and RPP are enchased togerher to become firm, so they do not fall off easily and have a longer service life.

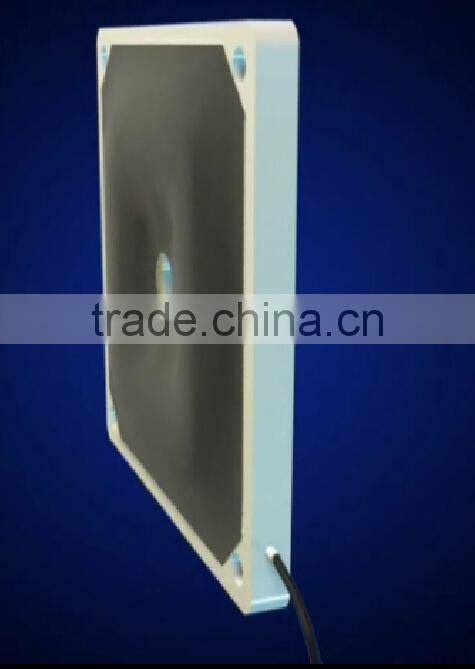

Membrane plate of membrane filter press

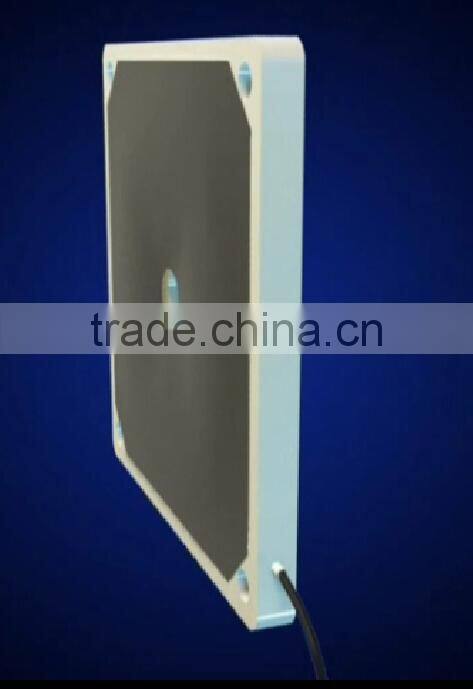

Membrance matching plate of membrane filter press

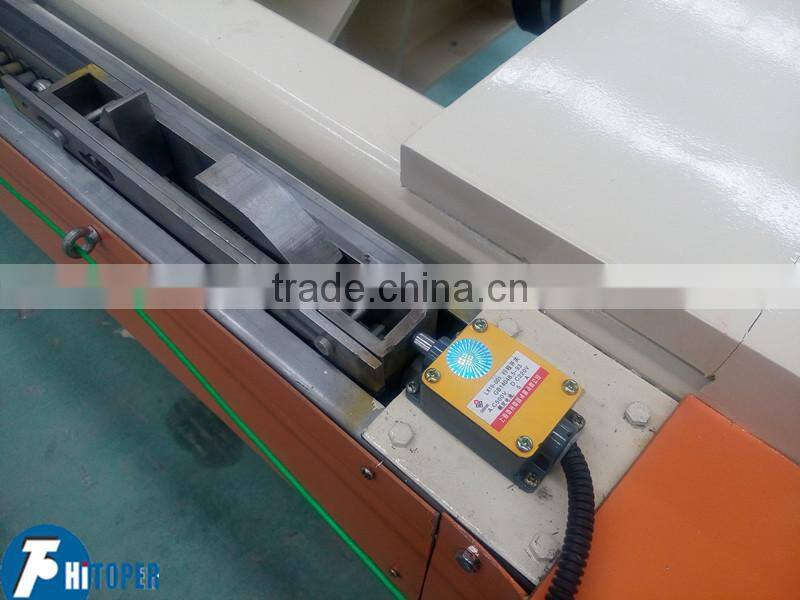

Plate shifting control switch of membrane filter press

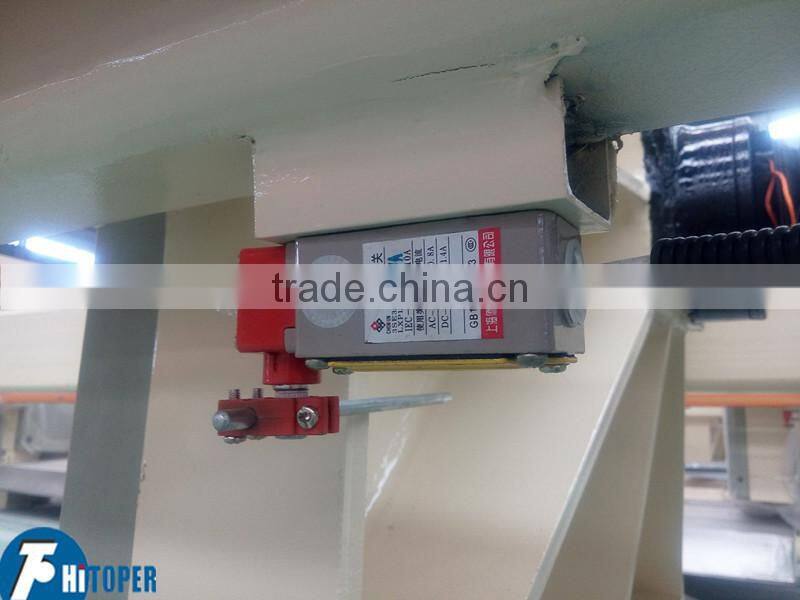

Limit switch of membrane filter press

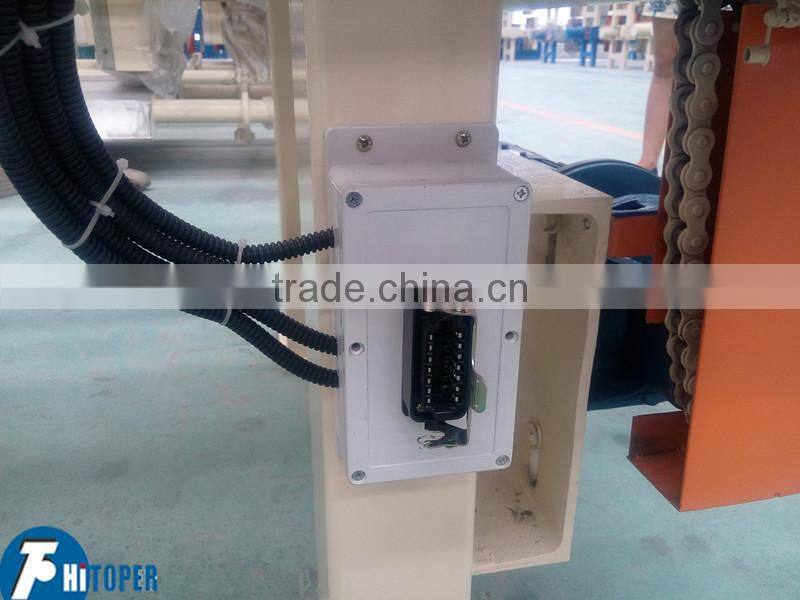

Master control of membrane filter press
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Our technical engineer can also guide the installation,testing ,solve problems and so on in your country if required.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
