Low price energy-saving dewatering screw press filter
Brife introduction of the low price energy-saving dewatering screw press filter
1. A screw jack as the pressing device, don’t need power.
2. Filter area ranges from 1m2 to 40m2, smaller than hydraulic or automatic filter press, better for
beginner start production one.
3. Chamber type and plate & frame type for your choosing.

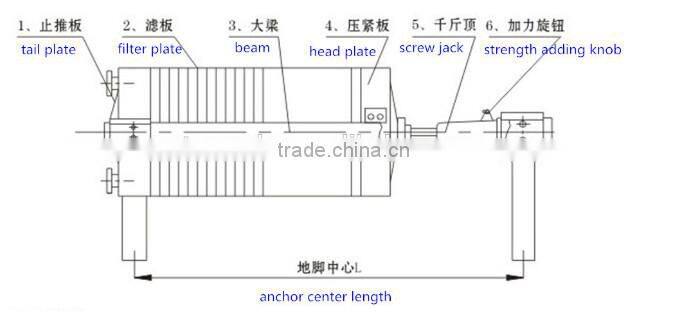

The manual filter press is the simplest type one, it consists of screw jack, beam, filter plate and filter cloth.
Working principle of the low price energy-saving dewatering screw press filter :
1. Press. Sort filter cloth to be flat and no folding, then put the strength adding rod into the jack of screw
jack. Adjust the direction valve, rotate the screw jack in clockwise, until one man’s strength is use up.
2. Return. Put the strength adding rod into the jack of screw jack, adjust the direction valve, rotate out
the screw jack in counterclockwise.
3. In the process of press or return, if the slippage situation comes out, it shows your direction valve’s
direction is wrong. Change to another direction is ok.
4. The press strength is ok with one man’s strength. If there is leakage, add the press strength.
5. After the filtration process, return the head plate, pull the filter plates one by one to discharge the cake,
then sort the filter plate and cloth, to start another cycle.
This manual filter press is widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper
making and sewage treatment, and other solid-liquid separation fields
Technical parameters of all the models of our dewatering screw press filter
01. The chamber type
02.The plate and frame type
Other type of our sludge dewatering machine :

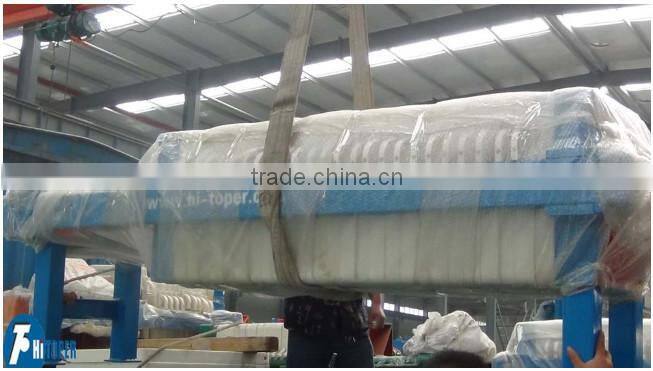

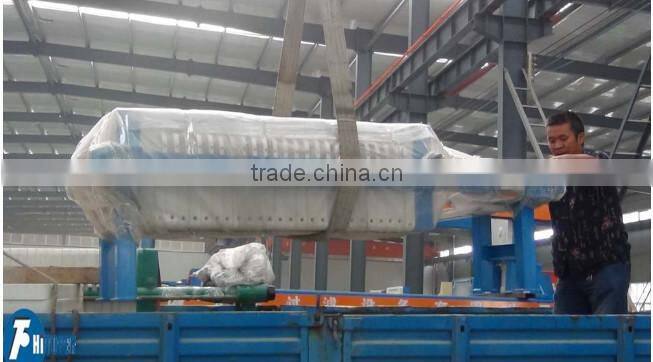

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Why choose us
1. Manufacture experience,

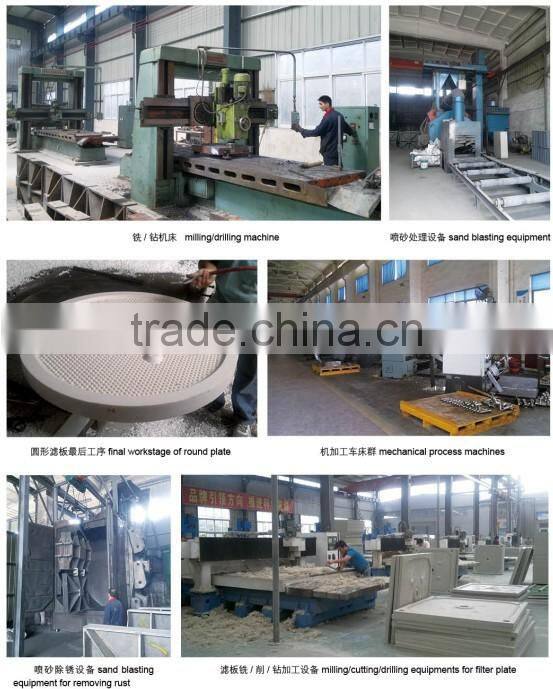

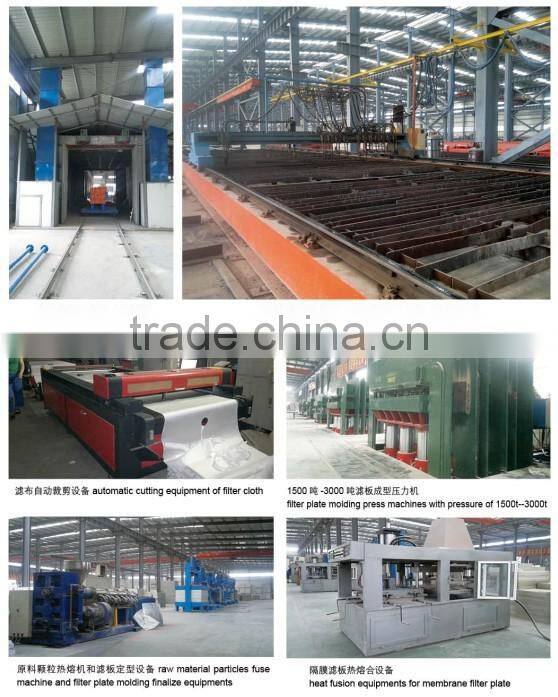

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation
equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery
time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate,
also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue
developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right
type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve
your problems on the basis of no influence of your equipment working.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press

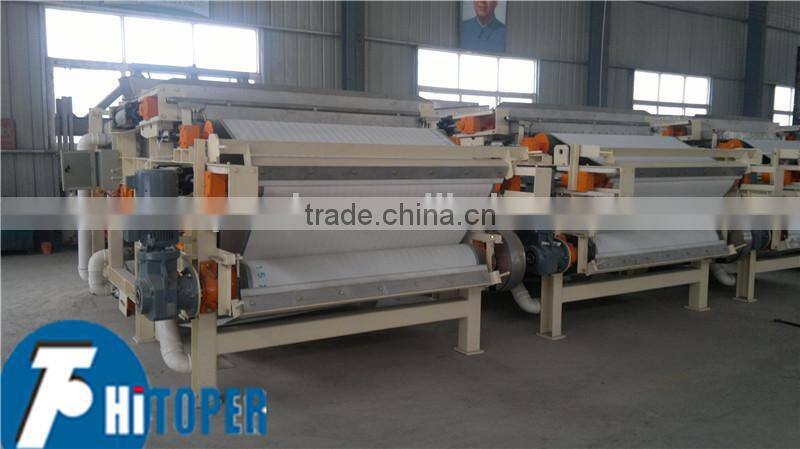

11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
How to order filter press
Low price energy-saving dewatering screw press filter
Low price energy-saving dewatering screw press filter
Low price energy-saving dewatering screw press filter
